Black rectangular HDMI splitter with four output ports

LUOM

LUOM OZF3-1 4K@60Hz HDMI Splitter 1x4 EDID

SKU CH-PXH4-J1GC2

Splits one HDMI source across four displays at 4K 60Hz with 18.2Gbps bandwidth, HDCP 2.2, 16 EDID modes and independent 4K-to-1080P downscaling per output

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • Distribute one source to four displays
  • 4K at 60 Hz with 18.2 Gbps bandwidth
  • 16 EDID modes for broad compatibility
  • Deep colour 8/10/12 bit and 3D support
  • Powered unit with USB adapter included

1-to-4 HDMI Splitter for 4K 60 Hz Sources

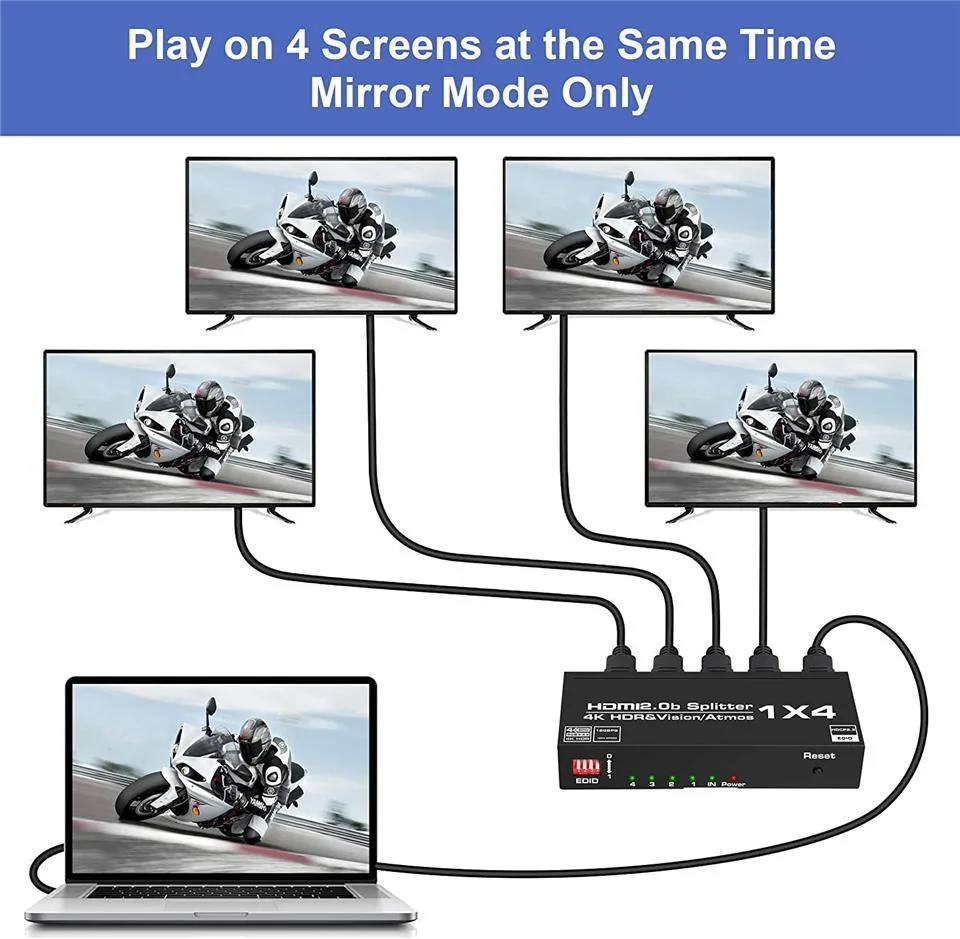

The LUOM OZF3-1 takes a single HDMI 2.0b input and mirrors it to four identical outputs at up to 3840 x 2160 @ 60 Hz with 18.2 Gbps bandwidth. It suits installers and home-theatre owners who need the same picture on multiple TVs, projectors or capture devices simultaneously. The unit handles 8/10/12-bit deep colour, 3D formats, HDR10 and Dolby Vision while maintaining HDCP 2.2 compliance for protected content.

16 EDID Modes and Built-In 4K-to-1080P Downscaling

Sixteen selectable EDID profiles let the source negotiate the optimal resolution and audio format across all four displays. A front-panel scaler switch enables independent 4K-to-1080P downscaling on each output so mixed-resolution screens stay in sync without external converters. The package includes a USB power adapter and user manual for immediate setup.

Compact Black Enclosure with Four HDMI Ports

The splitter measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, fitting easily behind a rack or display. One input and four output HDMI connectors sit on the same face for tidy cable routing. Using AWG26 cable, 1080p signals reach 15 m per run while 4K signals are specified to 8 m input and 15 m output distances.

Highlights

  • Distribute one source to four displays
  • 4K at 60 Hz with 18.2 Gbps bandwidth
  • 16 EDID modes for broad compatibility
  • Deep colour 8/10/12 bit and 3D support
  • Powered unit with USB adapter included

Specifications

BrandLUOM
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)
Support EDID

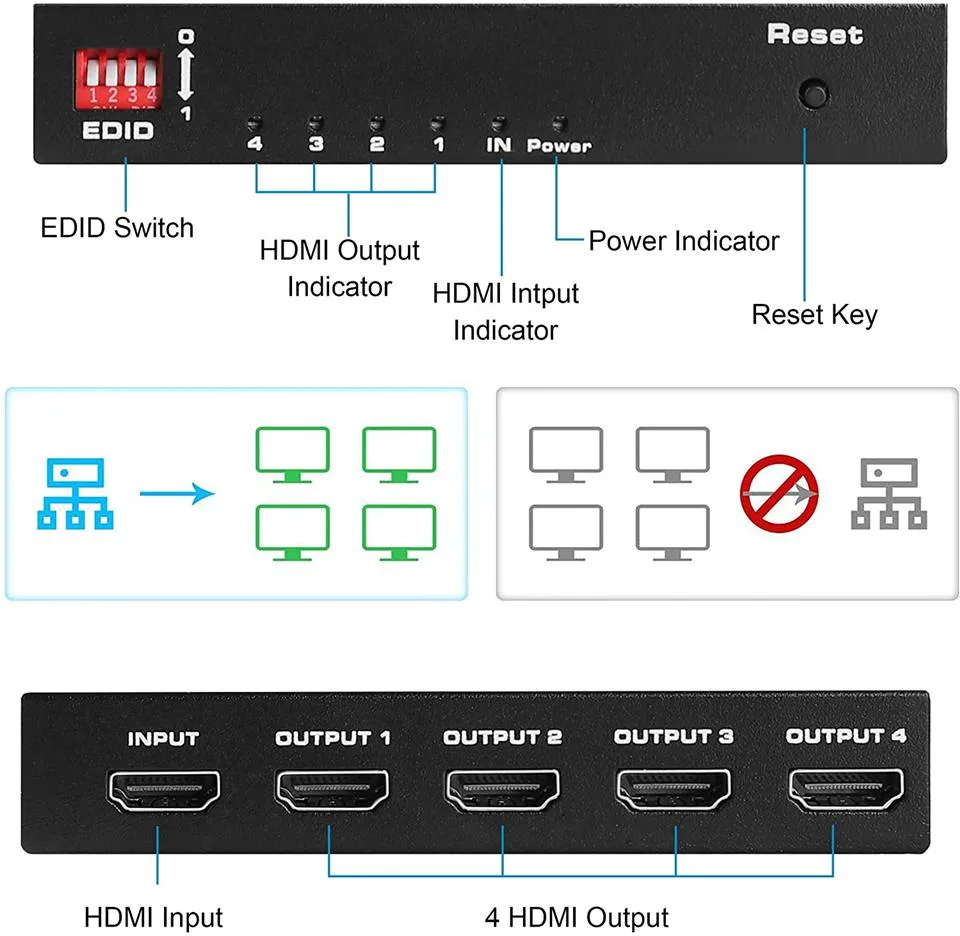

The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

Will the USB power adapter need replacement after continuous operation?

The splitter draws power from the included USB adapter; no internal battery or fan exists that would require periodic replacement.

At what cable length does 4K 60 Hz signal integrity degrade first?

With AWG26 cable the 4K 60 Hz path is specified up to 8 metres input and 15 metres output; beyond that the bandwidth limit of 18.2 Gbps becomes the bottleneck.

How much heat does the unit produce when driving four 4K displays all day?

The aluminium enclosure passively dissipates heat from the HDMI 2.0b chipset; no active cooling is fitted and surface temperature stays low during sustained 60 Hz operation.
