Small black box with one HDMI input and four HDMI outputs

LUOM

LUOM OZF3-1 1x4 HDMI Splitter 4K 60Hz 18.2Gbps

SKU CH-MX0M-1WXKE

Distributes one HDMI source to four displays at up to 4K 60 Hz with 18.2 Gbps bandwidth and HDCP 2.2 compliance

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports4
  • AudioYes
  • ColorBlack
  • Specifications1x4 HDMI splitter with EDID Supports 4K 60Hz HDCP 2.2 and HD
  • One source mirrored to four displays via 1x4 HDMI splitter
  • 4K 60 Hz video at 18.2 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b for protected content
  • 16 EDID modes plus downscaling to 1080p per output
  • 10-bit deep colour and 3D format support included

1x4 HDMI Splitter 4K 60Hz

The LUOM OZF3-1 duplicates a single HDMI source across four displays simultaneously. It supports HDMI 2.0b with 18.2Gbps bandwidth for 3840 x 2160 resolution at 60Hz. The unit handles 8/10/12-bit deep colour, HDR10, 3D video and 7.1-channel Dolby Atmos audio. A USB power adapter is included for stable operation.

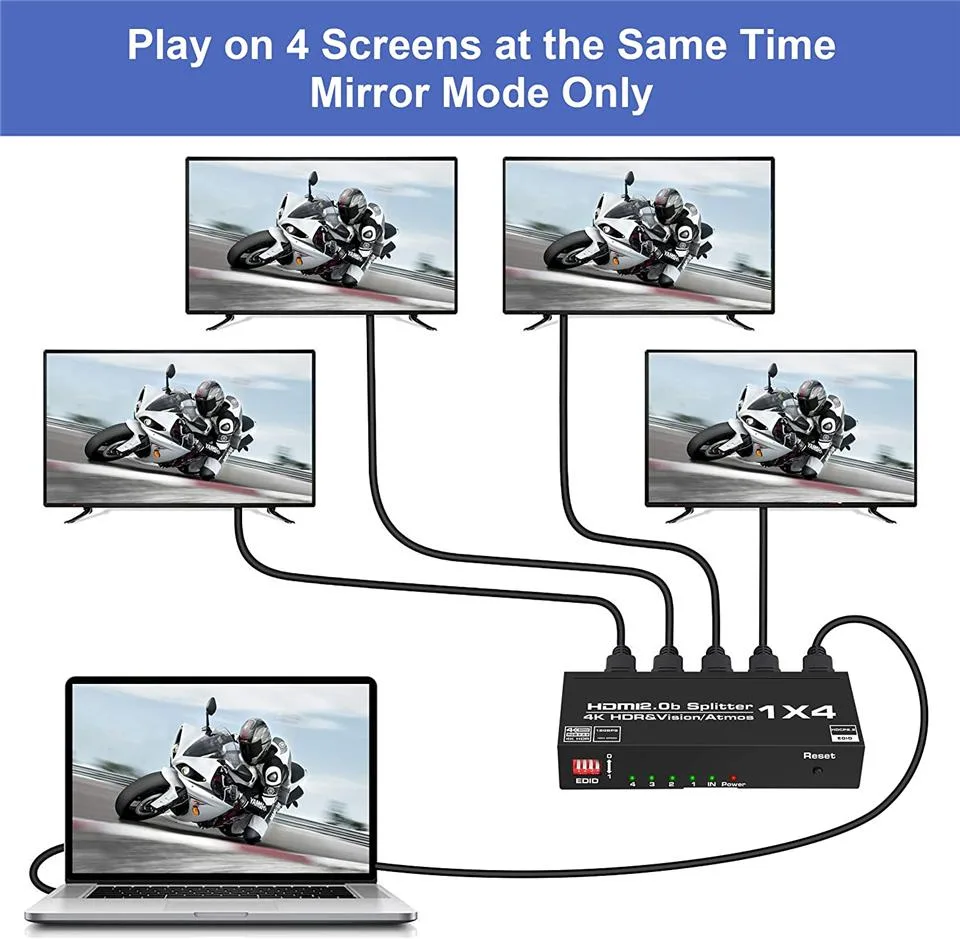

Installers needing identical output on four screens

This splitter suits installers who need one source mirrored to four monitors, projectors or TVs in lobbies, classrooms or multi-room setups. It does not suit users who want to switch between different sources on one display, as it cannot select inputs. Buyers needing independent content on each screen should consider a matrix switcher instead.

16 EDID modes with 4K to 1080P downscaling

The front-panel EDID and scaler switches provide 16 preset modes so each output can negotiate its preferred format. All four ports support automatic 4K to 1080P downscaling when a connected display cannot accept 2160p. This single feature decides whether the splitter matches your mixed-resolution installation.

Highlights

  • One source mirrored to four displays via 1x4 HDMI splitter
  • 4K 60 Hz video at 18.2 Gbps bandwidth
  • HDCP 2.2 and HDMI 2.0b for protected content
  • 16 EDID modes plus downscaling to 1080p per output
  • 10-bit deep colour and 3D format support included

Specifications

BrandLUOM
SeriesOZF3-1
ModelOZF3-1
Part NumberOZF3-1
TypeHDMI Splitters
Changer TypeHDMI
Ports4
AudioYes
ColorBlack
Specifications1x4 HDMI splitter with EDID
Supports 4K 60Hz
HDCP 2.2 and HDMI 2.0b
HDMI resolution: up to 3840 * 2160 @ 60HZ
Supported video format: 8/10/12 bit deep color
Supports 3D video format
4K 60Hz gives you a high definition visual experience
(Note: With a resolution of 4K, the input is up to 8 m and the output up to 15 m)
Support EDID

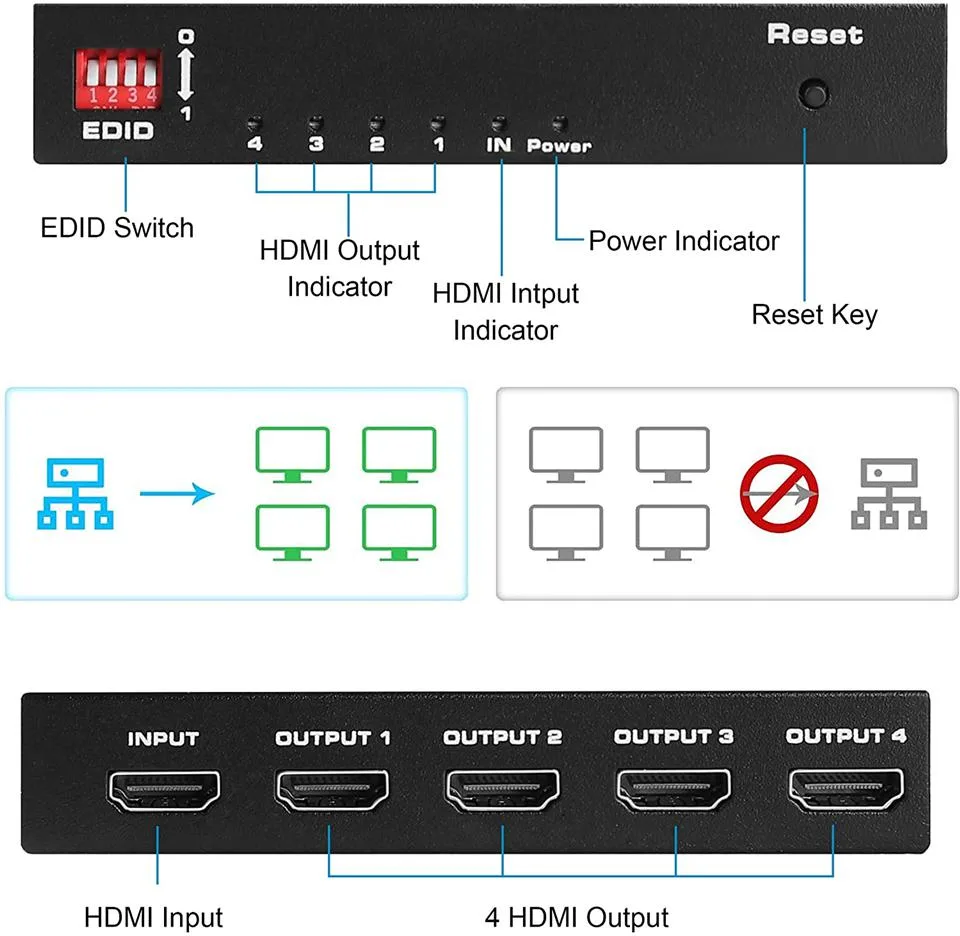

The 4 HDMI output ports all support 4K downscaling to 1080P. To do this, you need to use the EDID switch or the scaler switch on the front.
For more information on EDID and scaler settings, please refer to the images and instructions for our products
Please n
Input Connector1 HDMI
Output Connector4 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18.2Gbps
FeaturesHDMI cable splitter 4K@60hz allows you to display ONE HDMI Source on FOUR screens, Support RGB 4:4:4/RGB8:8:8, 4K@60HZ/1080P@120Hz super clear screen, make the picture clearer and more realistic. With the AWG26(19+1) HDMI standard cable, When the resolution is 1080P or below, input and output up to 50ft(15m), When the resolution is 4K, input up and output to 26ft(8m). Note: this 4K@60Hz HDMI splitter is not a HDMI switcher, it will not let you switch multiple HDMI source on 1 TV.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x4 HDMI 2.0 Splitter
USB Power adapter x1
User Manual x1

Questions about this item

How do I confirm the LUOM OZF3-1 is passing 4K 60Hz 18.2Gbps to all four displays after setup?

Check each screen shows 3840 x 2160 at 60Hz in its OSD and that HDR10 or Dolby Vision indicators appear when playing compatible content.

What comes in the box with the LUOM OZF3-1 and which cables must I buy separately?

The package includes the 1x4 HDMI 2.0 splitter, a USB power adapter and a user manual; you need to supply five HDMI cables (one input, four output).

The specs list 16 EDID modes and downscaling — which setting should I choose for four identical 4K 60Hz monitors?

Use the EDID switch to select a native 4K 60Hz EDID preset so all four outputs mirror the source at 3840 x 2160 @ 60Hz without downscaling.
