Small black box with one HDMI input and three HDMI outputs, plus a power port

LUOM

LUOM OZF14A 1×3 HDMI splitter 4K@30Hz 3D AC adaptor

SKU CH-7HQW-0Z520

A powered 1×3 HDMI splitter duplicates one 4K@30 Hz source to three displays with 3D and deep-colour support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsTriple HDMI monitor splitter One HDMI input to Three HDMI ou

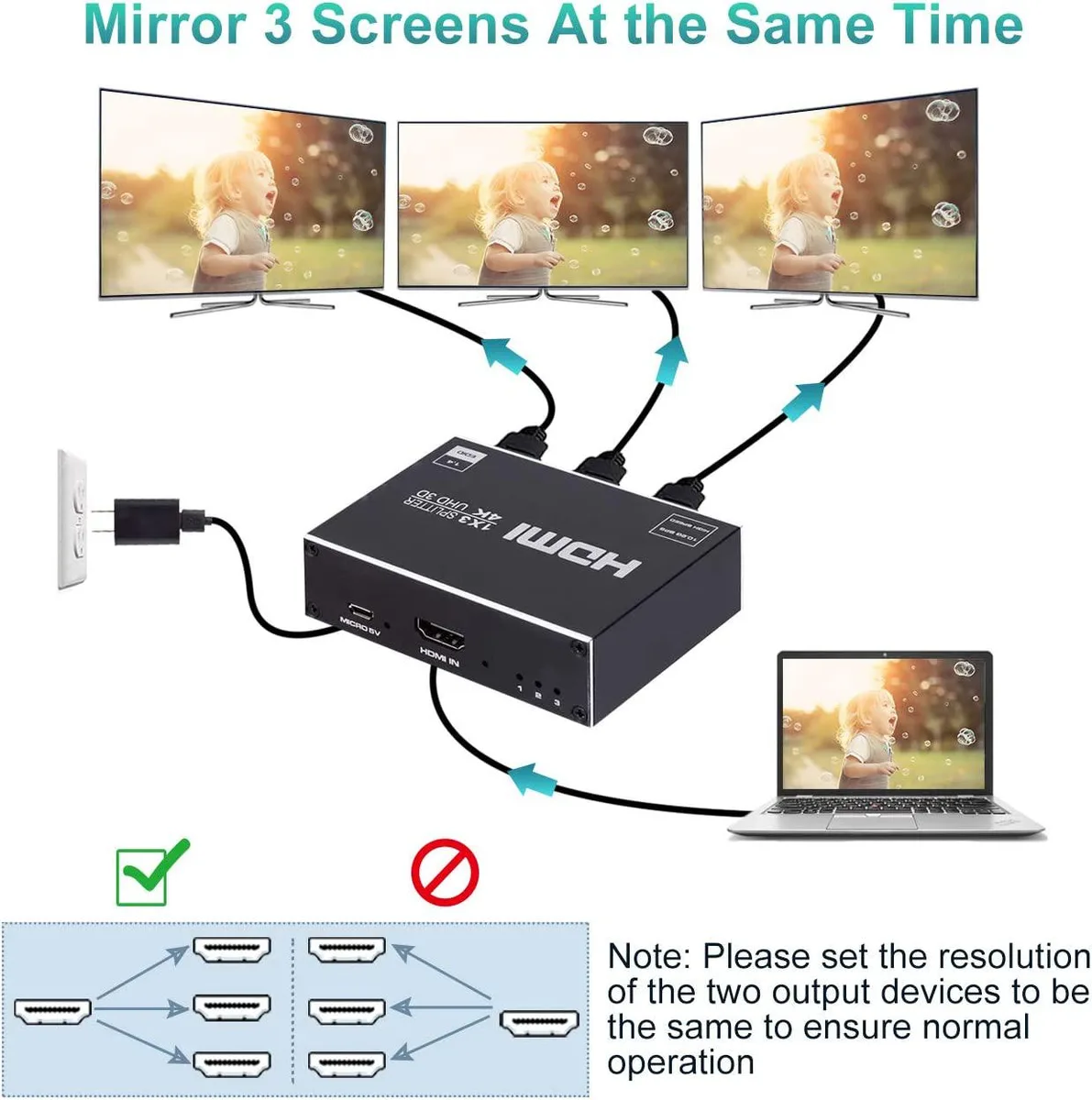

  • Mirror one source to three screens simultaneously
  • HDMI 1.4b bandwidth up to 3.4 Gbps for 3840×2160 at 30 Hz
  • 3D video and 8/10/12-bit deep colour support
  • Powered by included 5 V DC adaptor for stable signal
  • Input cables up to 15 m, output cables up to 15 m (8 m at 4K)

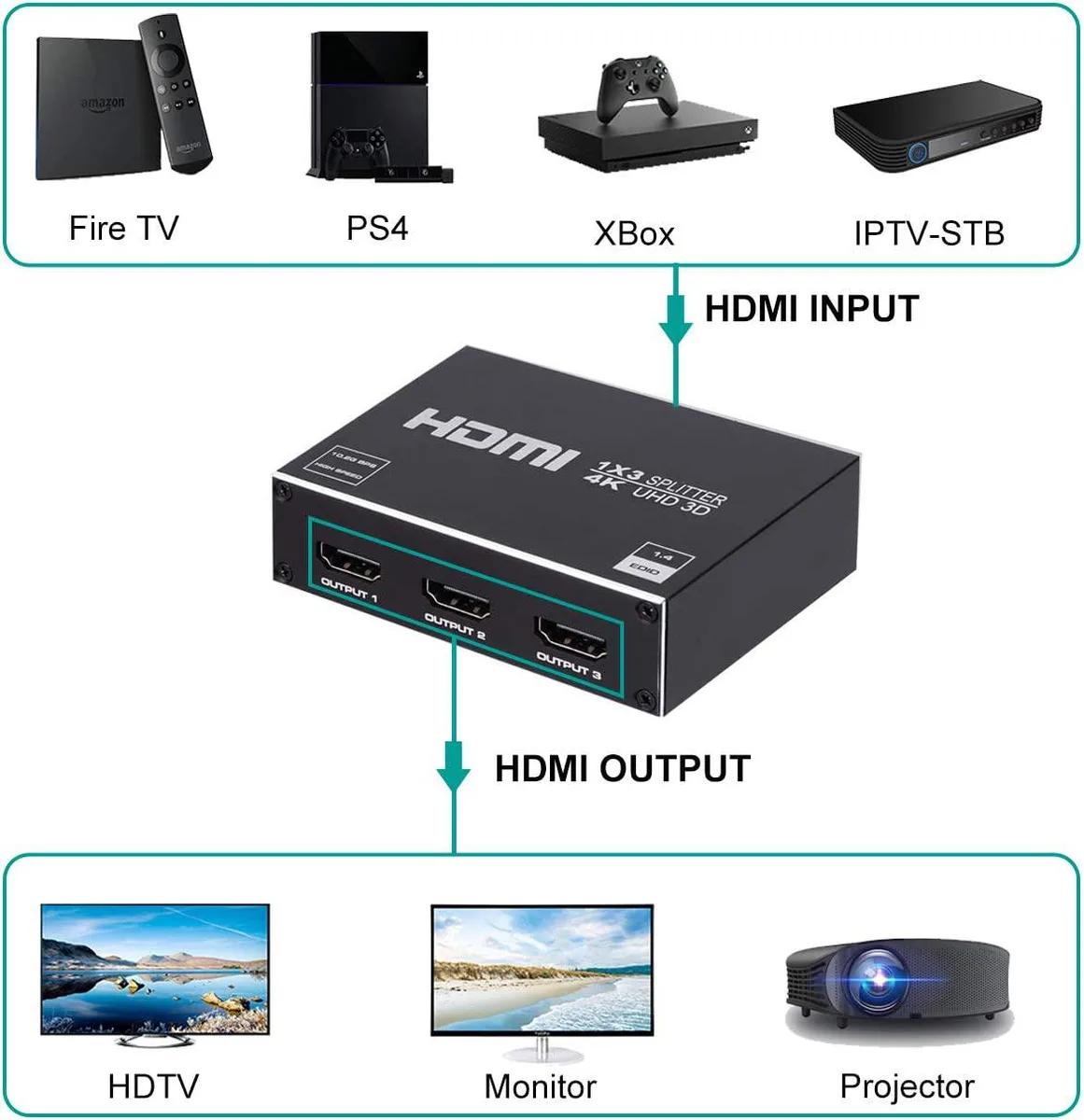

One input to three outputs

The LUOM OZF14A is a powered HDMI splitter that takes a single HDMI source and duplicates it across three displays at the same time. It handles resolutions up to 3840 x 2160 at 30 Hz and passes 3D video formats. The unit supports 8, 10 and 12 bit deep colour and audio formats such as DTS-HD and Dolby TrueHD. A 5 V DC adaptor is included for stable operation.

Check cables and source resolution

Verify that your source device can output the desired resolution over HDMI 1.4b and that your cables are rated for the distance you need. The specification allows input cables up to 15 metres and output cables up to 15 metres at 1080p, dropping to 8 metres each when running 4K. Ensure you need mirroring only, as this splitter does not support extended desktop modes.

Passive cooling with external power

The aluminium enclosure dissipates heat without a fan, so the device runs silently in normal use. Power draw is limited to the included 5 V supply, keeping consumption low. No driver installation is required; the splitter is ready to use once the adaptor and HDMI cables are connected.

Highlights

  • Mirror one source to three screens simultaneously
  • HDMI 1.4b bandwidth up to 3.4 Gbps for 3840×2160 at 30 Hz
  • 3D video and 8/10/12-bit deep colour support
  • Powered by included 5 V DC adaptor for stable signal
  • Input cables up to 15 m, output cables up to 15 m (8 m at 4K)

Specifications

BrandLUOM
SeriesOZF14A
ModelOZF14A
Part NumberOZF14A
TypeHDMI Splitters
Changer TypeHDMI
Ports3
AudioYes
ColorBlack
SpecificationsTriple HDMI monitor splitter
One HDMI input to Three HDMI outputs
HDMI input: Computer, Chromecast, XBox, PS3, PS4, PS5, Fire Stick, Blu-Ray DVD Player, Satellite Receiver, Roku, PC etc.
HDMI output: Monitors, Projectors, HD TVs, VR etc.
HDMI audio output: HDMI Speaker, Soundbar etc.
HDCP 1.4b, HDCP 1.4, deep color 8/ 10/ 12bit..
upports Ultra HD 4Kx2K@30HZ/ 1080P/ 1080i, 720p/ 720i, 480p/ 480i.
Audio format: DTS-HD/ Dobly-true HD/ DTS/ Dobly-AC3, DSD.
Input Connector1 HDMI input
Output Connector3 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupport HDMI 1.4b version
Support 3D video format
Support high resolution up to 3840x2160/30Hz
Support highest rate of 3.4Gbps and TMDS clock can be up to 340Mhz
Support 8/10/12 bit deep color
Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters, (when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
Support one single HDMI source, accessing to multiple HDMI sknks, the source can be DVD player, A/V receiver, set top box and etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Splitter 1 in 3 out, 1x 5V DC Power Supply, 1 x User manual

Questions about this item

What cables and power supply are included with the LUOM OZF14A splitter?

The box contains the 1×3 HDMI splitter, a 5 V DC power adaptor and a user manual. HDMI cables for the source and the three displays are not included and must be purchased separately.

Does this model have different resolution or port-count options I should choose between?

The OZF14A is a single fixed configuration: one HDMI input, three HDMI outputs, maximum 3840×2160 at 30 Hz with HDMI 1.4b support. No alternative versions are offered for this part number.

What does the 3840×2160 at 30 Hz rating mean when I connect a 4K monitor?

Each of the three outputs will mirror the source at up to 3840×2160 resolution refreshed at 30 Hz. The splitter does not support extended desktop mode, so all three screens show the identical image.
