Black rectangular HDMI splitter with one input and sixteen output ports

LUOM

LUOM OZF13 1x16 HDMI video splitter 4K 30Hz

SKU CH-VPR8-554DK

Distributes one HDMI source to 16 displays at up to 4K 30 Hz with 3D and multi-channel audio support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports16
  • AudioYes
  • ColorBlack
  • SpecificationsMax Bandwidth:320MHz Max Transmission Bandwidth:3.2Gbps HDMI
  • Mirrors one source to 16 displays simultaneously
  • 4K at 30 Hz for sharp ultra-HD video
  • 2 Gbps bandwidth keeps signal stable across all ports
  • 12-bit deep colour and full 3D support for richer visuals
  • 1-channel lossless audio formats passed through intact

16-port HDMI splitter for multi-display installs

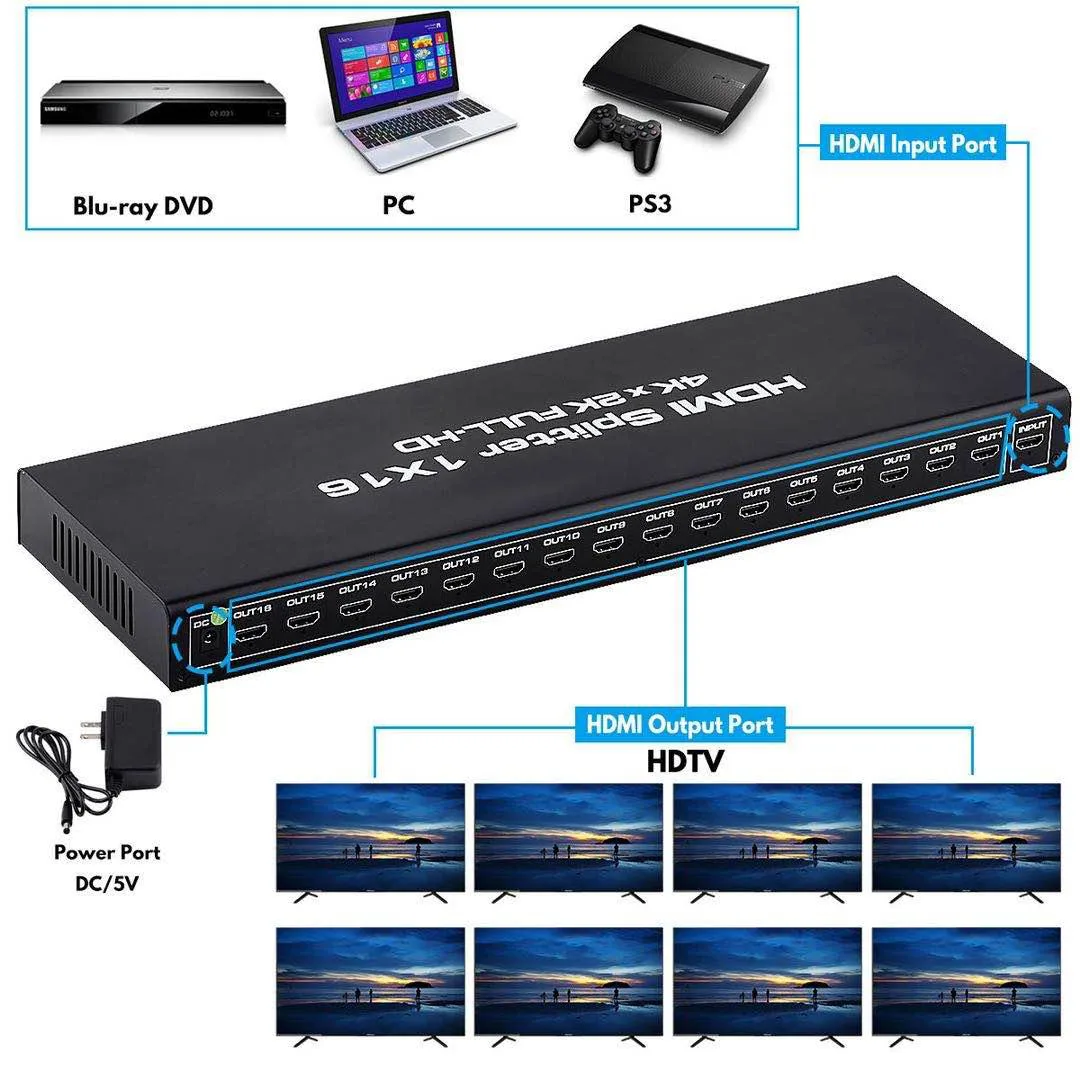

The LUOM OZF13 duplicates one HDMI source across sixteen outputs at up to 3840 x 2160 resolution and 30 Hz refresh. It handles 12-bit deep colour, full 3D video and multi-channel audio formats including LPCM 7.1, Dolby TrueHD and DTS-HD. The unit is aimed at installers running digital signage walls, conference rooms, control rooms or training suites where identical content must reach many screens simultaneously.

Sustained distribution across all ports

Bandwidth is rated at 3.2 Gbps with a 320 MHz pixel clock, so every connected display receives the same 4K 30 Hz signal continuously without frame drops. The splitter is powered by an external 12 V 5 A adapter, keeping the internal clock and output drivers stable during long operating sessions. EDID management and automatic lip-sync correction maintain sync across all sixteen links without software intervention.

Passive cooling and low power draw

The aluminium enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, relying on natural convection rather than a fan for silent operation. Power consumption stays within the supplied adapter capacity, so no additional cooling or rack space is required. Input cables up to 10 metres and output cables up to 15 metres are supported using standard AWG 26 HDMI leads, giving flexibility for typical AV rack layouts.

Highlights

  • Mirrors one source to 16 displays simultaneously
  • 4K at 30 Hz for sharp ultra-HD video
  • 2 Gbps bandwidth keeps signal stable across all ports
  • 12-bit deep colour and full 3D support for richer visuals
  • 1-channel lossless audio formats passed through intact

Specifications

BrandLUOM
SeriesOZF13
ModelOZF13
Part NumberOZF13
TypeHDMI Splitters
Changer TypeHDMI
Ports16
AudioYes
ColorBlack
SpecificationsMax Bandwidth:320MHz
Max Transmission Bandwidth:3.2Gbps
HDMI Version: HDMI 1.4b
Power Adapter Format: DC 12V/5A
Support audio format: DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD

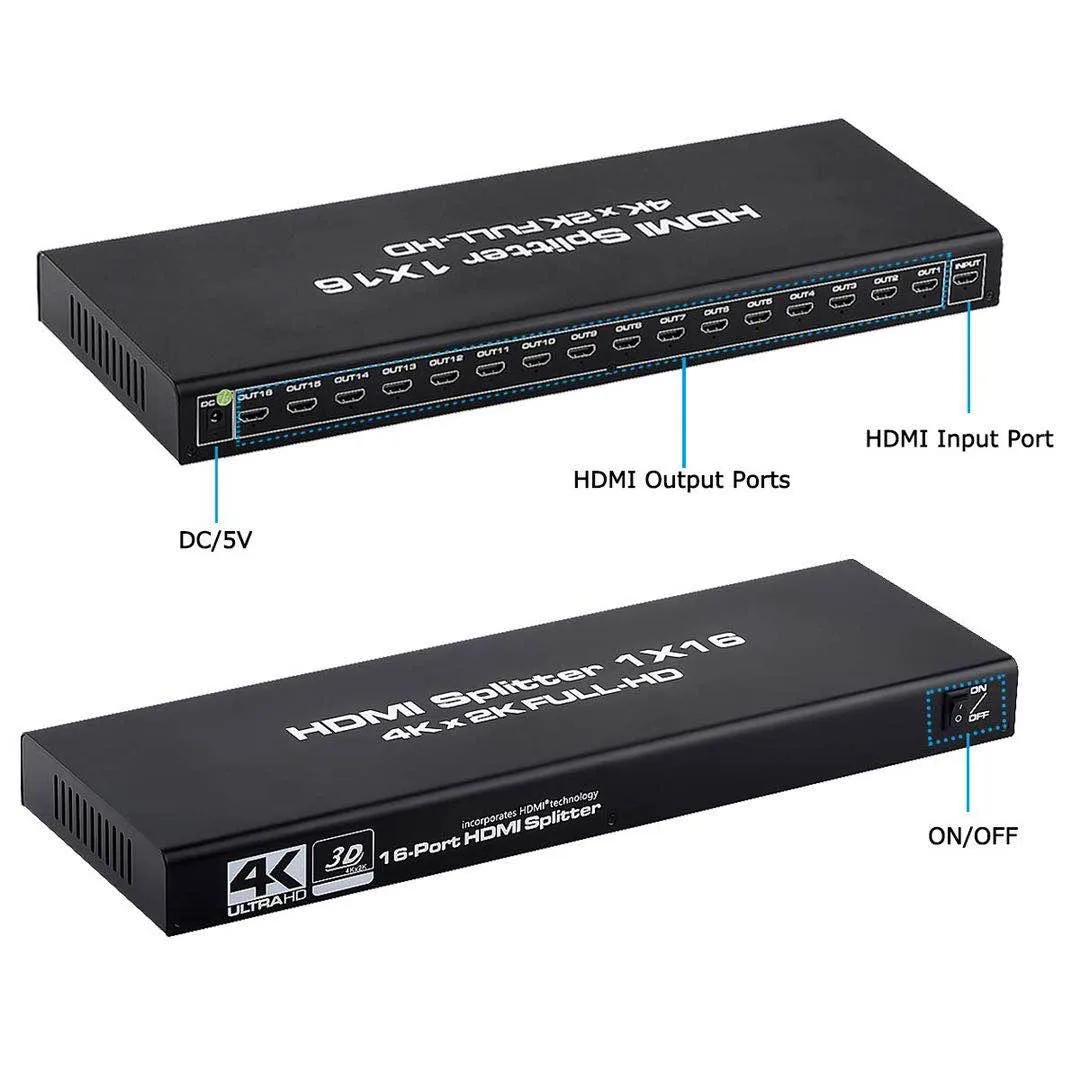

Input Connector1 HDMI input
Output Connector16 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupports high resolutions up to ultra HD 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p;
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K video;
Supports audio format such as LPCM7.1, Dolby True HD, Dolby DTS Plus and DTS-HD Audio;
Input support: Computer, PS3, PS4, Xbox, Blu-ray DVD player, STB etc;
Output support: projectors, Full HDTVs, TV, monitor, etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K 16 Port HDMI Splitter
1 x 12V DC Power Supply
1 x User Manual

Questions about this item

How much power does the LUOM OZF13 draw when running all day with all 16 outputs active?

The unit ships with a DC 12V/5A power adapter, giving a maximum input of 60 watts for continuous operation across all ports.

Which cables and source devices must I already own to use this 1×16 splitter?

You need one HDMI source such as a PC, PS4, Xbox or Blu-ray player, one HDMI cable up to 10 metres for the input, and up to 16 HDMI cables up to 15 metres each for the displays.

Will a 1080p-only monitor work alongside a 4K display on the same LUOM OZF13?

Yes, the splitter mirrors the single input to every output, so a 1080p monitor will show the signal at its native resolution while a 4K display receives up to 3840×2160 at 30 Hz.
