LUOM OZF13 1x16 HDMI Splitter 4K 30Hz 3D Audio Video Distributor Support Compatible DVD

1x16 HDMI Splitter for multi-display installs

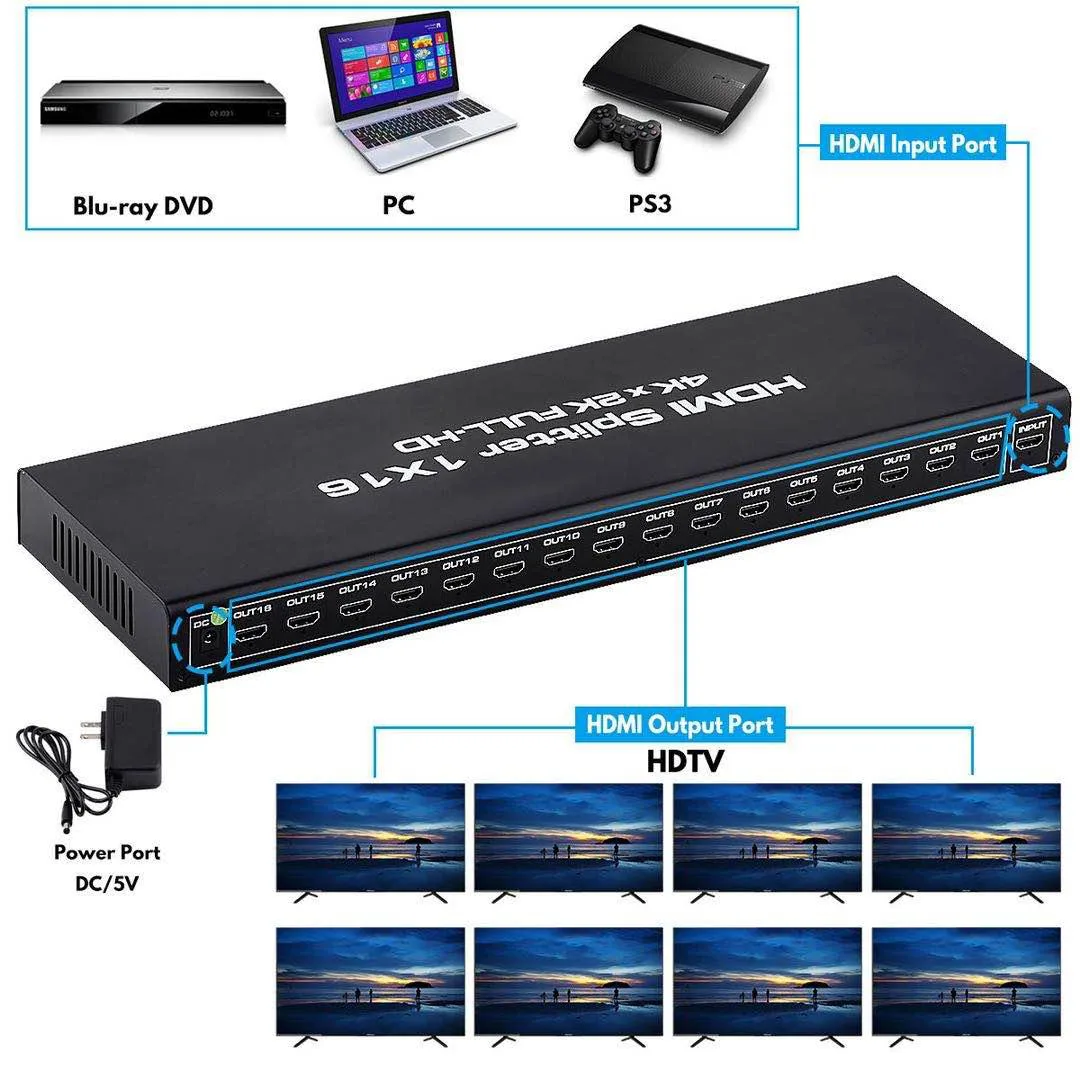

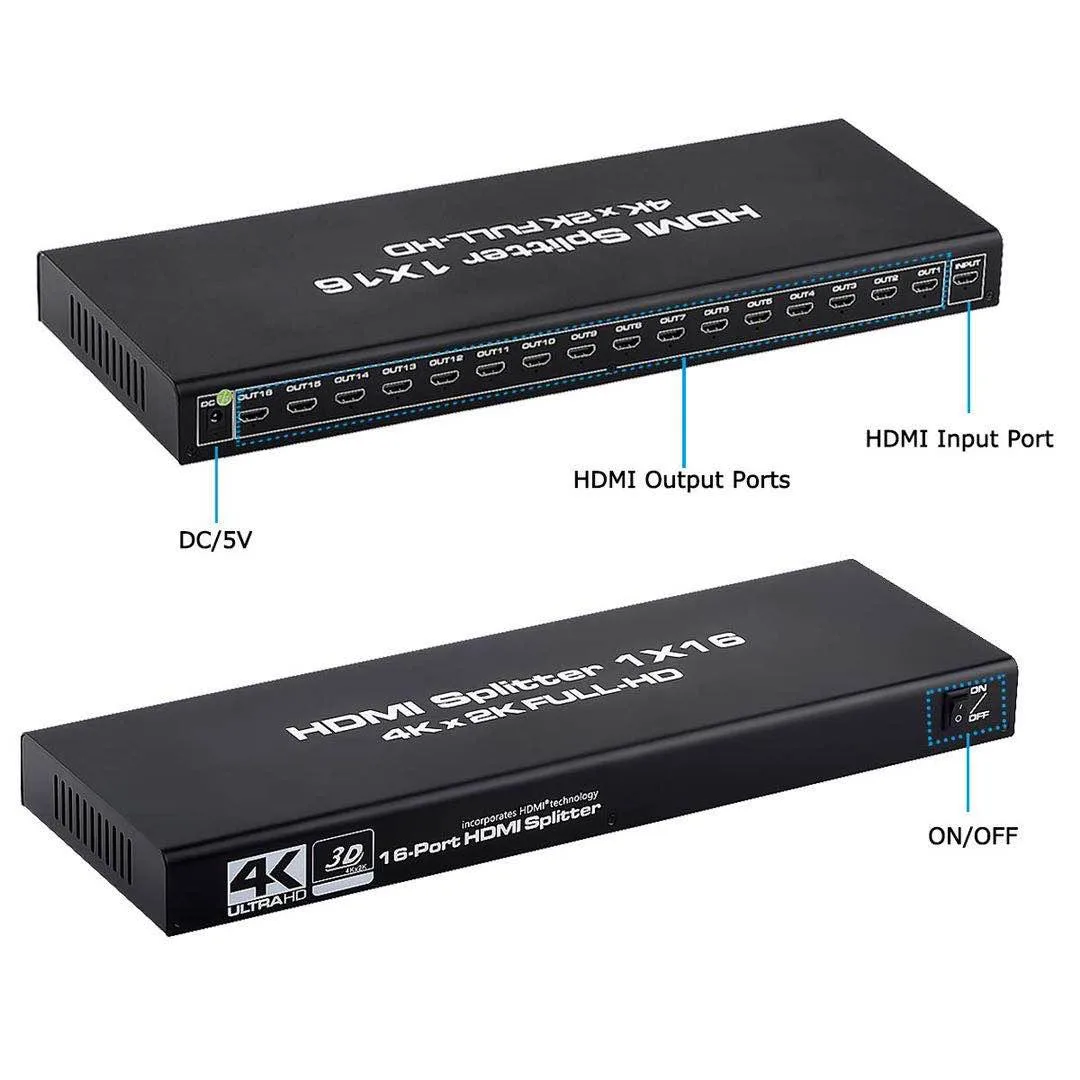

This LUOM OZF13 splitter takes one HDMI source and mirrors it to sixteen displays simultaneously. It suits installers running signage walls, classroom projector clusters or control-room monitor banks where identical content must reach every screen. The unit requires no driver installation and operates from an included 12 V 5 A DC adapter. It is not for buyers who need independent content on each output or who require HDMI 2.0 bandwidth for 4K at 60 Hz.

4K 30 Hz bandwidth with 3.2 Gbps limit

Maximum resolution is 3840 x 2160 at 30 Hz, with a 320 MHz pixel clock and 3.2 Gbps aggregate bandwidth. Supported timings include 480i, 480p, 576i, 576p, 720p, 1080i and 1080p at 12-bit deep colour plus full 3D frame-packed modes. The 2840 x 2160 @ 30 Hz figure quoted in some literature appears to be a typographical variant of the same 4K ceiling. The splitter cannot pass 4K 60 Hz, HDR metadata or higher colour depths beyond the 1.4b specification.

Passive cooling with 15 m cable reach

The aluminium enclosure dissipates heat without a fan, so acoustic output is negligible in typical rack or desk mounting. Power draw is limited to the 12 V 5 A supply rating; actual consumption varies with cable length and connected sink count. Input cables up to 10 m and output cables up to 15 m are supported when using 19+1 AWG26 standard HDMI leads. No thermal throttling or active cooling maintenance is required.
