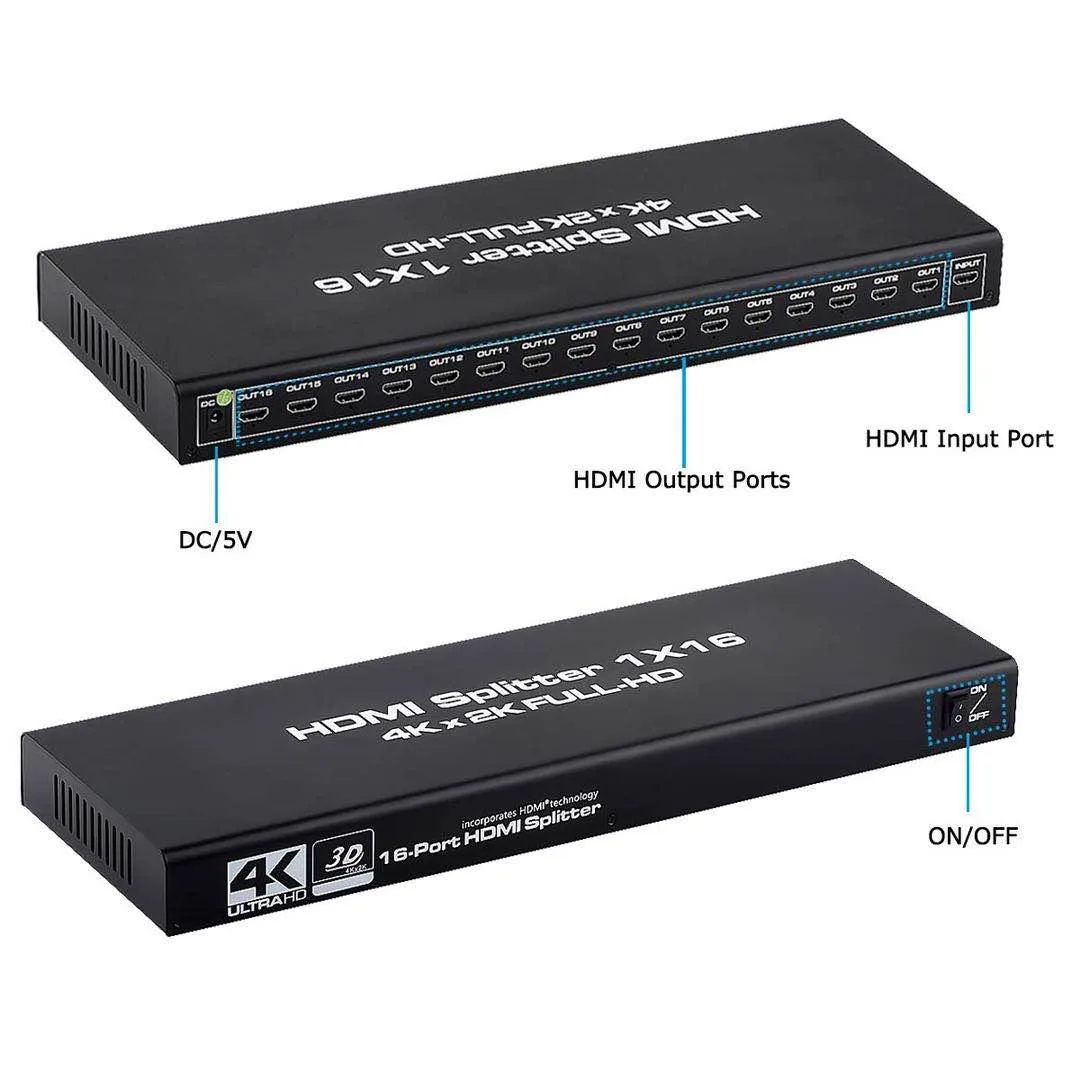

Black rectangular HDMI splitter with sixteen output ports

LUOM

LUOM OZF13 1x16 HDMI Splitter 4K 30Hz 3D Audio

SKU CH-JTV0-5M3GK

Mirrors one HDMI source to 16 displays at 4K 30 Hz with 3D and multi-channel audio support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports16
  • AudioYes
  • ColorBlack
  • SpecificationsMax Bandwidth:320MHz Max Transmission Bandwidth:3.2Gbps HDMI
  • Mirrors one source to 16 displays simultaneously
  • Delivers 4K resolution at 30 Hz refresh rate
  • Supports full 3D and 12-bit deep colour video
  • Handles Dolby TrueHD and DTS-HD multi-channel audio
  • Plug-and-play setup with no driver installation required

1×16 HDMI Splitter 4K 30 Hz

The LUOM OZF13 distributes one HDMI source to sixteen displays simultaneously. It mirrors video and audio up to 3840×2160 at 30 Hz with 12-bit deep colour and full 3D support. The unit handles LPCM 7.1, Dolby TrueHD, DTS-HD and DSD audio formats. A 12 V 5 A DC power adapter is included for stable operation.

Cable lengths and source compatibility

Verify that the source device outputs HDMI 1.4b signals and can drive the chosen resolution. Input cables up to 10 metres are supported when using 19+1 AWG26 standard leads. Each of the sixteen output runs can reach 15 metres. No driver installation is required; the splitter is plug-and-play with computers, consoles, Blu-ray players and set-top boxes.

Passive cooling and power draw

The aluminium enclosure dissipates heat without fans, so the device runs silently in conference rooms, classrooms or digital-signage installations. Maximum bandwidth is 3.2 Gbps at 320 MHz pixel clock. The supplied 12 V 5 A adapter provides ample headroom for all sixteen active outputs. Dimensions are 5.59×3.15×1.26 inches and the unit weighs 3.2 ounces.

Highlights

  • Mirrors one source to 16 displays simultaneously
  • Delivers 4K resolution at 30 Hz refresh rate
  • Supports full 3D and 12-bit deep colour video
  • Handles Dolby TrueHD and DTS-HD multi-channel audio
  • Plug-and-play setup with no driver installation required

Specifications

BrandLUOM
SeriesOZF13
ModelOZF13
Part NumberOZF13
TypeHDMI Splitters
Changer TypeHDMI
Ports16
AudioYes
ColorBlack
SpecificationsMax Bandwidth:320MHz
Max Transmission Bandwidth:3.2Gbps
HDMI Version: HDMI 1.4b
Power Adapter Format: DC 12V/5A
Support audio format: DTS-HD/Dolby-trueHD/ DTS/Dolby-AC3/DSD
Input Connector1 HDMI input
Output Connector16 HDMI Output
Maximum Resolutions3840 x 2160
FeaturesSupports high resolutions up to ultra HD 4Kx2K, including 480i/p, 576i/p, 720i/p, 1080i, 1080p;
Supports 12-bit Deep Full HD, Full 3D and 4Kx2K video;
Supports audio format such as LPCM7.1, Dolby True HD, Dolby DTS Plus and DTS-HD Audio;

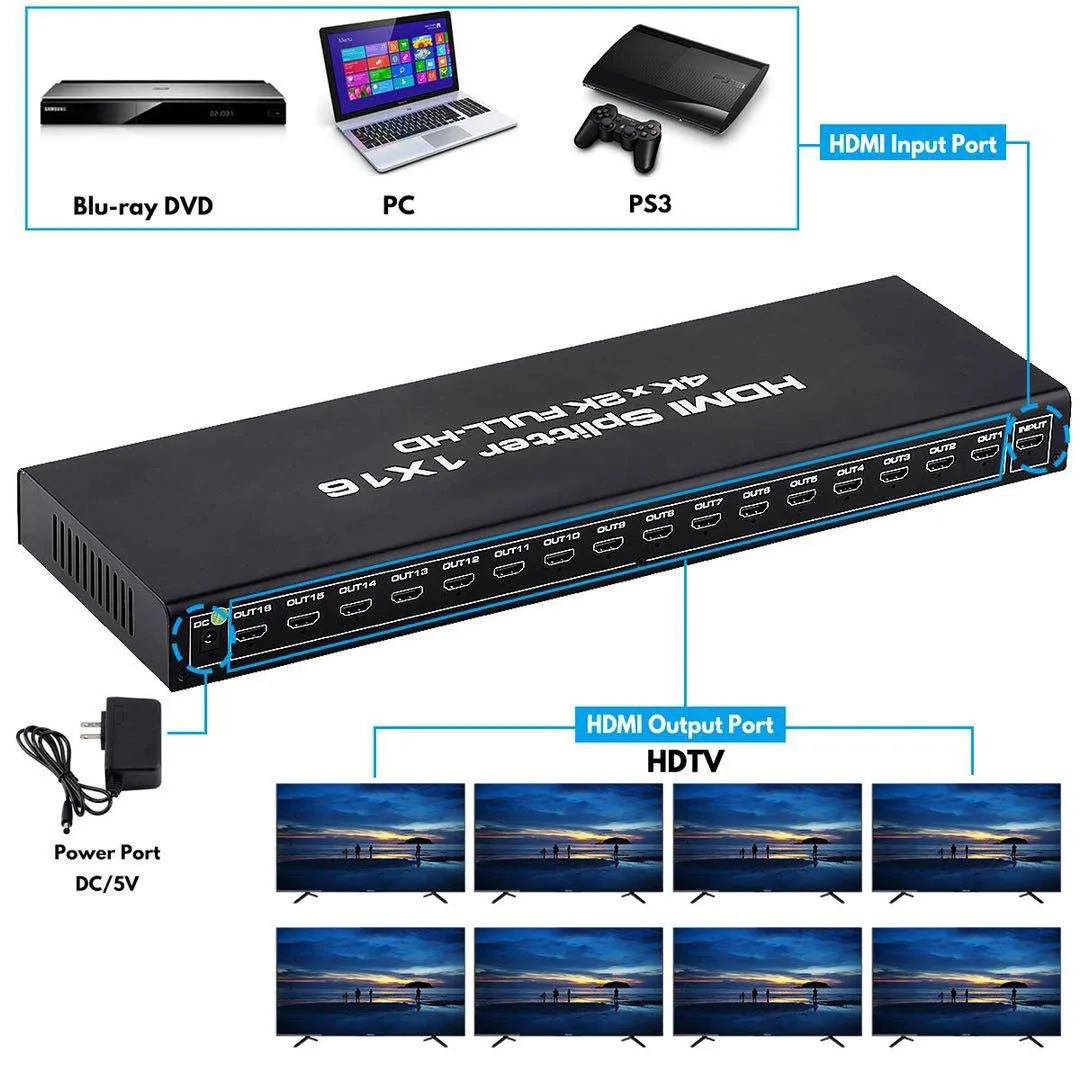

Input support: Computer, PS3, PS4, Xbox, Blu-ray DVD player, STB etc;
Output support: projectors, Full HDTVs, TV, monitor, etc.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K 16 Port HDMI Splitter
1 x 12V DC Power Supply
1 x User Manual

Questions about this item

Does the LUOM OZF13 splitter come with all cables needed to connect 16 displays?

The box includes the 16-port HDMI splitter, a 12V DC power supply and a user manual. HDMI cables for the input and each of the 16 outputs are not included and must be purchased separately.

Which HDMI version and maximum resolution does the OZF13 support?

It uses HDMI 1.4b with a maximum bandwidth of 3.2 Gbps, delivering up to 3840 x 2160 at 30 Hz. Lower resolutions such as 1080p at 60 Hz and 3D formats are also supported.

What cable lengths can I use without signal loss on the OZF13?

The supplier recommends input cables of 1 to 10 metres and output cables of 1 to 15 metres. Using HDMI 19+1 AWG26 standard cable helps maintain quality over these distances.
