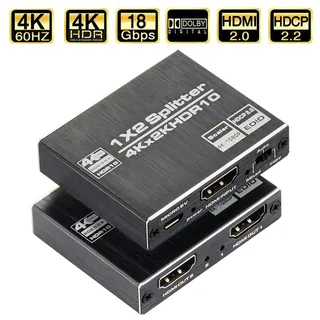

Black rectangular HDMI splitter with two output ports

LUOM

LUOM OZF12 HDMI 2.0b Splitter 1×2 4K@60Hz 18Gbps

SKU CH-RVGX-14BHM

Splits one HDMI source to two displays at up to 3840×2160@60Hz with 18Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • One source drives two displays simultaneously
  • HDMI 2.0b and HDCP 2.2 keep 4K@60Hz protected
  • 18Gbps bandwidth carries 12-bit deep colour and HDR
  • Metal housing dissipates heat for stable 49ft cable runs
  • Includes 5V/2A adapter for reliable power delivery

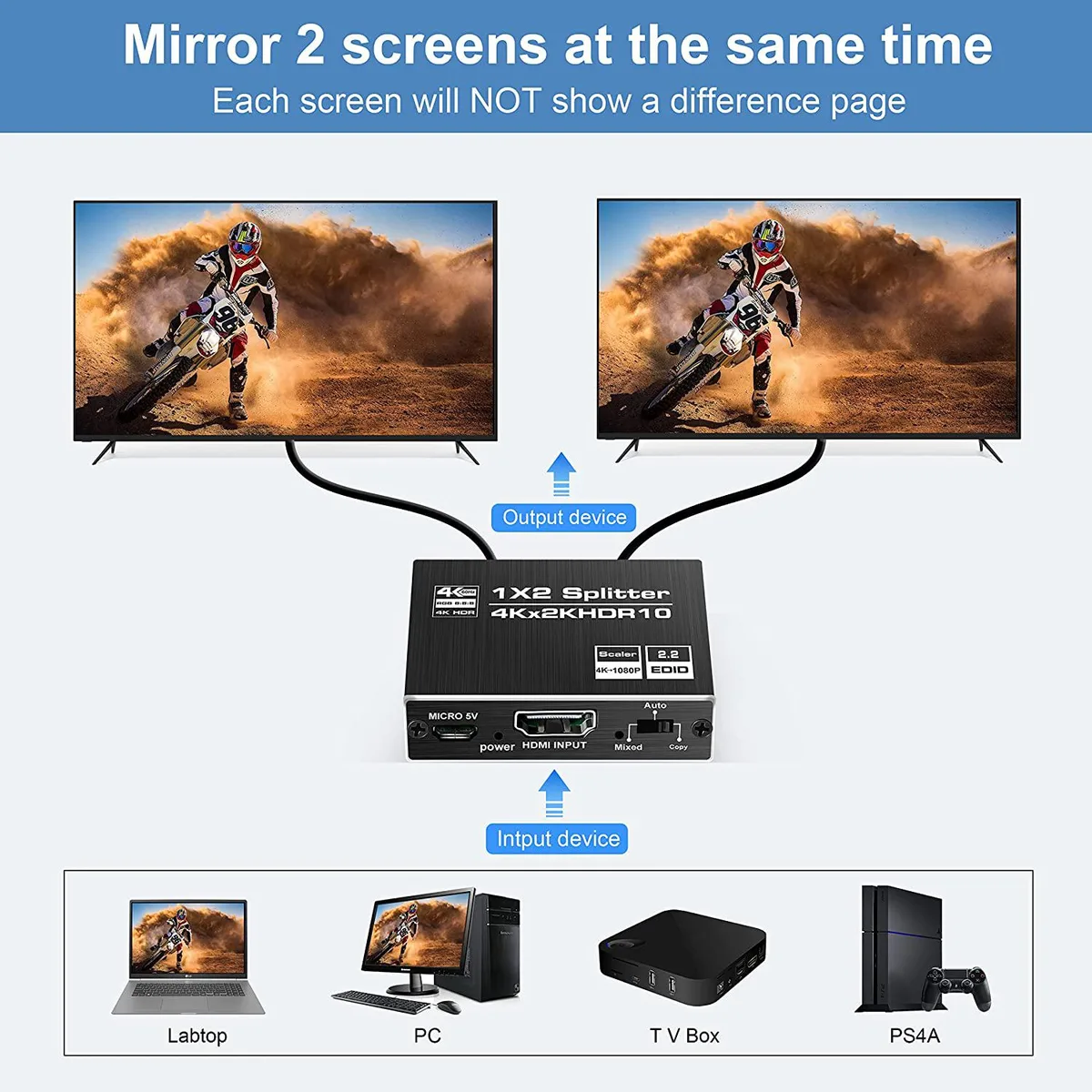

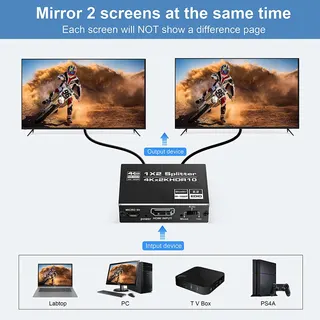

One HDMI source to two displays

The LUOM OZF12 is a 1×2 HDMI 2.0b splitter that duplicates a single HDMI signal to two monitors, projectors or televisions. It is built for installers and home users who need identical content on two screens without extending the desktop. The unit includes a 5V/2A power adapter for stable operation.

18 Gbps bandwidth at HDMI 2.0b

The splitter complies with the HDMI 2.0b specification and supports HDCP 2.2, delivering up to 18 Gbps of bandwidth. This single figure determines whether your 4K 60 Hz source can pass full-colour 4:4:4 video and high-bitrate audio to both outputs simultaneously. Lower-bandwidth splitters will drop frames or reduce chroma subsampling.

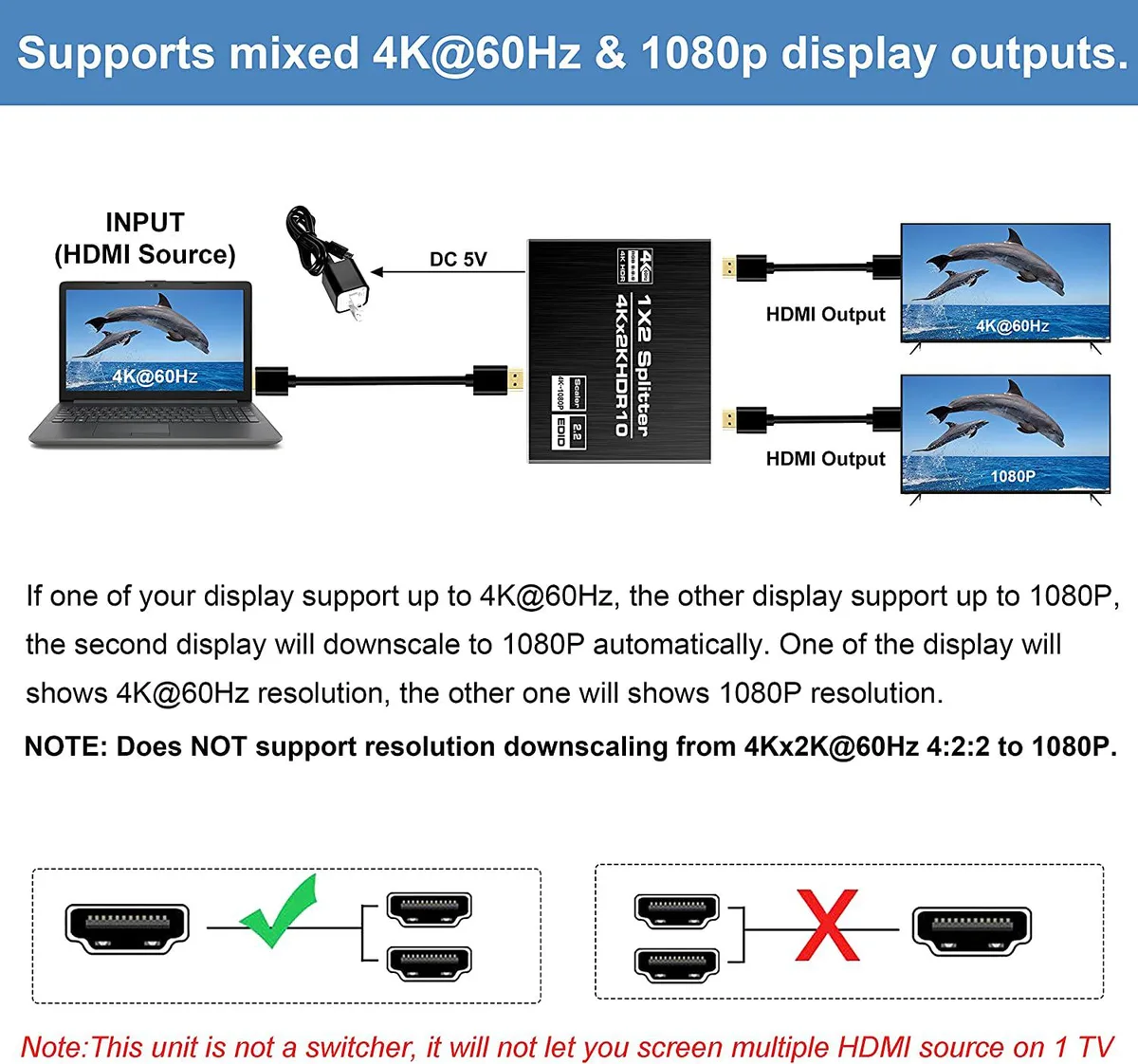

4K 60 Hz duplicate with 49 ft cable reach

The device handles resolutions up to 3840×2160 at 60 Hz with deep colour up to 48-bit and audio formats including LPCM 7.1, DTS-HD and Dolby TrueHD. Using AWG22 standard cables, the signal remains clean for up to 49 ft on the input and 49 ft on each output. It does not support extended desktop modes, so each screen always shows the same image.

Highlights

  • One source drives two displays simultaneously
  • HDMI 2.0b and HDCP 2.2 keep 4K@60Hz protected
  • 18Gbps bandwidth carries 12-bit deep colour and HDR
  • Metal housing dissipates heat for stable 49ft cable runs
  • Includes 5V/2A adapter for reliable power delivery

Specifications

BrandLUOM
SeriesOZF12
ModelOZF12
Part NumberOZF12
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Video color format: 24bit/deep color 30bit, 36bit, 48bit
Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 600MHz
Max baud rate: 18.5Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: <17ft AWG28 HDMI standard cable
Output cable distance: <17ft AWG28 HDMI standard cable
Max working current: 1200mA
Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesFully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1

Questions about this item

What does 4K@60Hz mean when the splitter is connected to two displays?

Both outputs mirror the source at up to 3840×2160 resolution and 60 frames per second, with support for RGB 4:4:4 and deep colour up to 48bit.

Which HDMI standard and HDCP version does the OZF12 implement, and what bandwidth does that allow?

It complies with HDMI 2.0b and HDCP 2.2, providing an 18Gbps link that carries 4K@60Hz, HDR and high-bitrate audio without compression.

What physical space and power does the splitter need for installation?

The metal enclosure measures 5.59 × 3.15 × 1.26 inches and weighs 3.2 ounces; it requires the included 5V/2A power adapter to operate.
