Small black rectangular HDMI splitter with three ports

LUOM

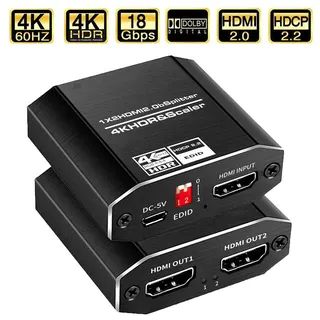

LUOM OZF12-2 1x2 HDMI Splitter 4K 60Hz 18Gbps Duplicate Mirror PS5 Roku TV Box

SKU CH-DCT6-GYB98

Duplicates one HDMI source to two displays at 4K 60 Hz with 18 Gbps bandwidth, HDCP 2.2 and RGB 4:4:4 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Duplicate one source to two screens with zero loss thanks to 18Gbps bandwidth
  • 4K 60Hz output keeps motion smooth on both displays via HDMI 2.0
  • RGB 4:4:4 at 30/36/48-bit deep colour preserves full chroma detail
  • Dolby Vision and HDR pass-through supported when both displays are compatible

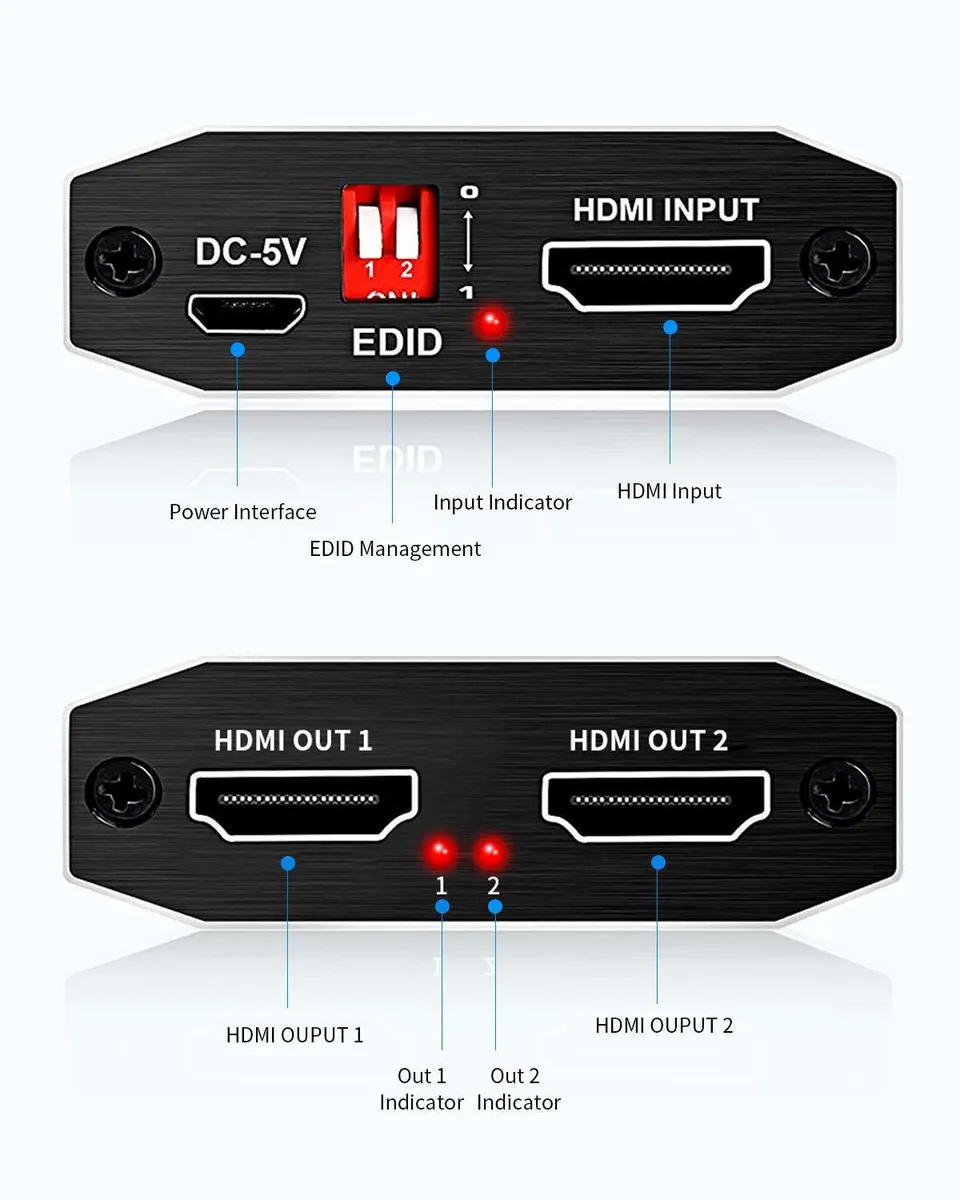

  • Four EDID modes let you match the splitter to any PS5, Roku or TV box setup

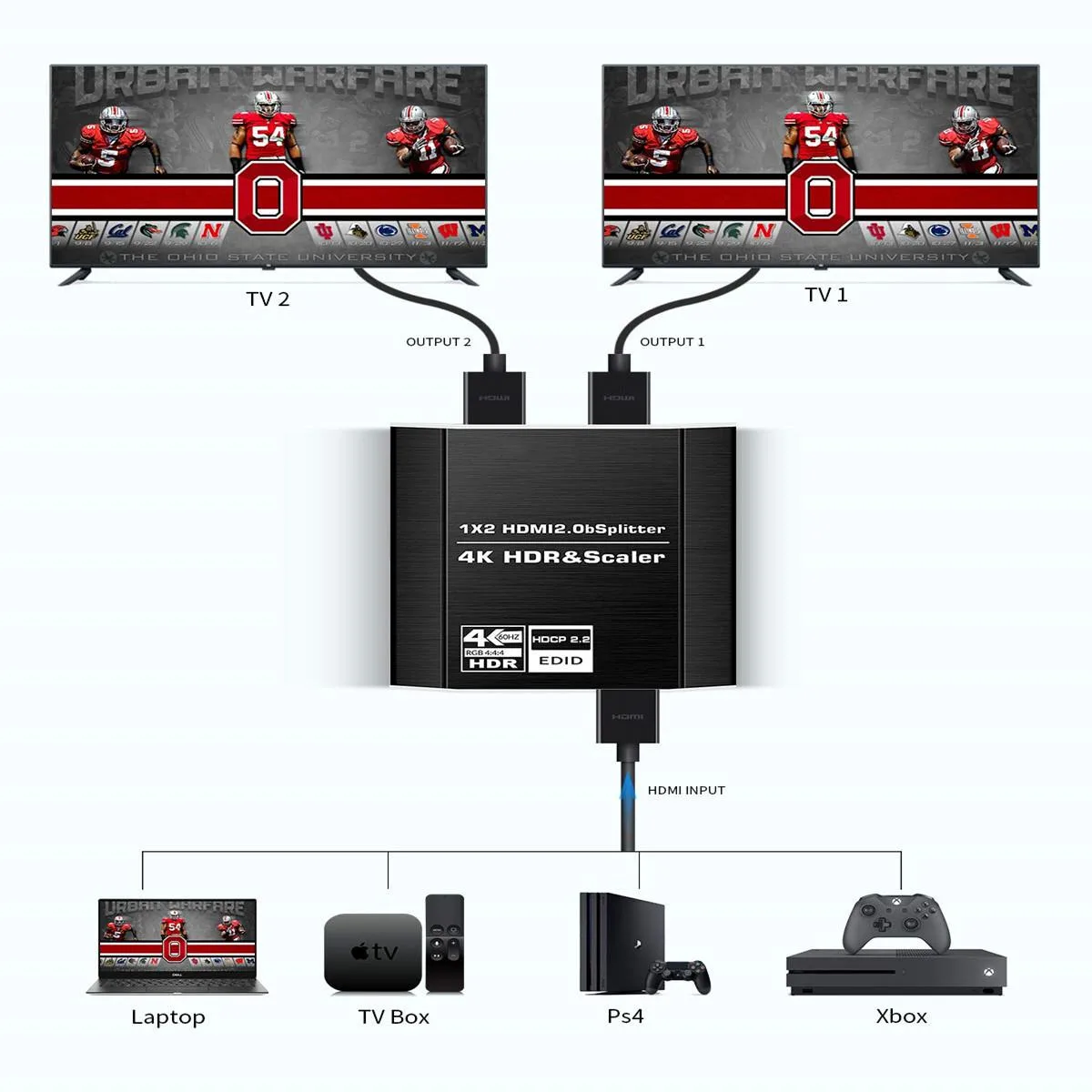

1x2 HDMI Splitter for Dual Displays

The LUOM OZF12-2 splits one HDMI 2.0 source to two screens at up to 3840x2160 60Hz. It carries 18Gbps bandwidth with RGB 4:4:4 colour and deep colour up to 48 bit. Audio formats include DTS-HD, Dolby TrueHD, DSD and standard Dolby or DTS streams. The box includes the splitter, a DC 5V 1A power adapter and a manual.

Replaces Basic 1080p or Single-Output Setups

Older splitters limited to 1080p or 4K 30Hz cannot pass full 4K 60Hz HDR or Dolby Vision metadata. This unit adds HDCP 2.2 compliance and EDID management with four selectable modes, so protected 4K streams from a PS5, Roku or TV box play on both displays without handshake failures. The upgrade is worth it when the source outputs 4K 60Hz and both sinks must show an identical image.

Handles 4K 60Hz Mirrored Content Comfortably

The splitter duplicates 3840x2160 60Hz signals with HDR and high-bit-rate audio up to 5 metre cable runs on each side using AWG26 leads. It does not extend the desktop, so each screen shows the same picture. Bandwidth headroom ends at 18Gbps, so 4K 120Hz, 8K or multi-channel PCM beyond the listed formats are not supported. Buyers needing independent content on each display or longer cable distances cannot use this device.

Highlights

  • Duplicate one source to two screens with zero loss thanks to 18Gbps bandwidth
  • 4K 60Hz output keeps motion smooth on both displays via HDMI 2.0
  • RGB 4:4:4 at 30/36/48-bit deep colour preserves full chroma detail
  • Dolby Vision and HDR pass-through supported when both displays are compatible
  • Four EDID modes let you match the splitter to any PS5, Roku or TV box setup

Specifications

BrandLUOM
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

What cable length and gauge does the OZF12-2 require for 4K 60 Hz signals?

Use AWG26 standard HDMI cables no longer than 5 m on both the input and each output to maintain the 18 Gbps link.

Which EDID mode should I select first when connecting a PS5 and a soundbar to the two outputs?

Power the splitter with the included 5 V 1 A adapter, then cycle the EDID button until both displays show a stable 4K 60 Hz 4:4:4 picture; the wrong mode often causes a blank screen on one output.

How do I know when the external power supply needs replacing on the OZF12-2?

If the unit draws more than 1200 mA, the power LED flickers or one display drops out intermittently, swap the 5 V 1 A adapter for a new one of the same rating.
