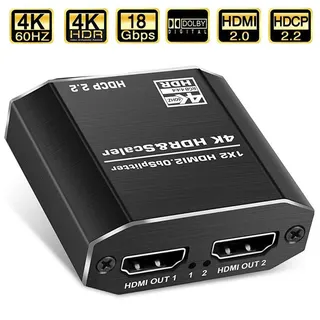

Small black rectangular HDMI splitter with ports on each end

LUOM

LUOM OZF12-2 1x2 HDMI Splitter 4K 60Hz 18Gbps

SKU CH-3574-HM7X2

Splits one HDMI source to two displays at 4K 60 Hz with 18 Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version:HDMI 2.0 HDMI resolution:up to 3840x2160P/60Hz
  • Distributes one source to two displays simultaneously
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • HDCP 2.2 and EDID ensure secure handshake
  • 30/36/48 bit deep colour and HDR support
  • Includes DC 5 V power adaptor and manual

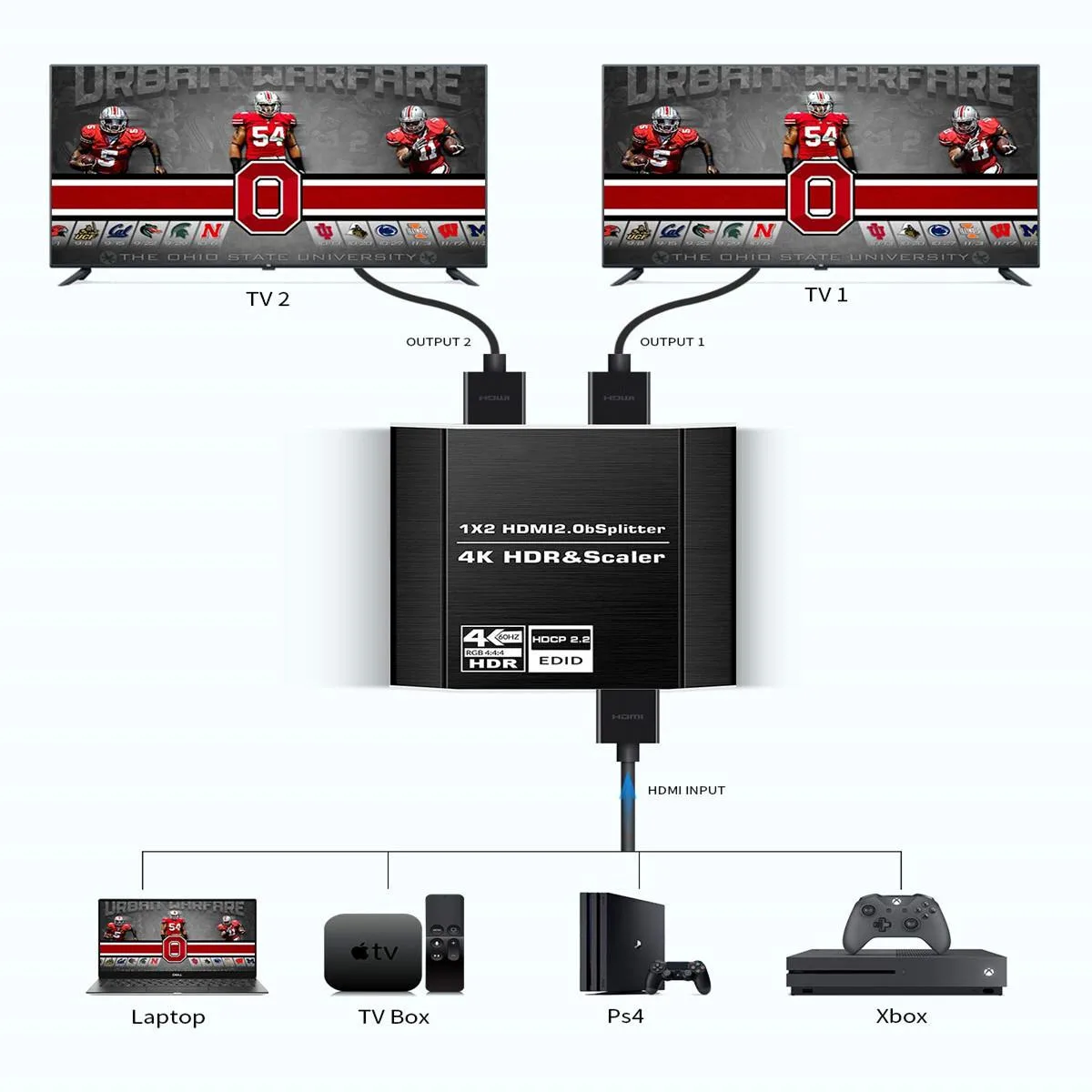

1×2 HDMI Splitter for Dual Displays

The LUOM OZF12-2 duplicates a single HDMI source to two screens simultaneously. It handles 4K resolution at 60 Hz with 18 Gbps bandwidth and supports HDR, Dolby Vision and high-bitrate audio formats. The unit requires the included 5 V power adapter and works with consoles, streamers and Blu-ray players.

HDMI 2.0 Bandwidth and Cable Limits

The splitter conforms to the HDMI 2.0 standard with a maximum data rate of 18 Gbps and 1536 MHz pixel clock. Input and output cables must not exceed 5 metres when using AWG26 standard HDMI leads. Longer runs or thinner cables will reduce signal integrity and may cause dropouts.

4K 60 Hz Capacity and Colour Depth

The device comfortably drives two displays at 3840×2160 60 Hz with RGB 4:4:4 chroma subsampling and 30, 36 or 48 bit deep colour. It cannot extend the desktop across screens — only mirror — and it does not support resolutions or refresh rates beyond the 18 Gbps ceiling such as 4K 120 Hz or 8K signals.

Highlights

  • Distributes one source to two displays simultaneously
  • 18 Gbps bandwidth carries 4K at 60 Hz
  • HDCP 2.2 and EDID ensure secure handshake
  • 30/36/48 bit deep colour and HDR support
  • Includes DC 5 V power adaptor and manual

Specifications

BrandLUOM
SeriesOZF12-2
ModelOZF12-2
Part NumberOZF12-2
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version:HDMI 2.0
HDMI resolution:up to 3840x2160P/60Hz
Support video color format:30/36/48 bit deep color
Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth:1536MHz
Max baud rate:18Gbps
Input cable distance:<5m AWG26 HDMI standard cable
Output cable distance:<5m AWG26 HDMI standard cable
Max working current:1200mA
Power Adapter Format:output: DC5V/1A
Dimension :58x49x11mm
Weight:130g
4K HDMI Splitter 1x2 2160P 60HZ HDMI2.

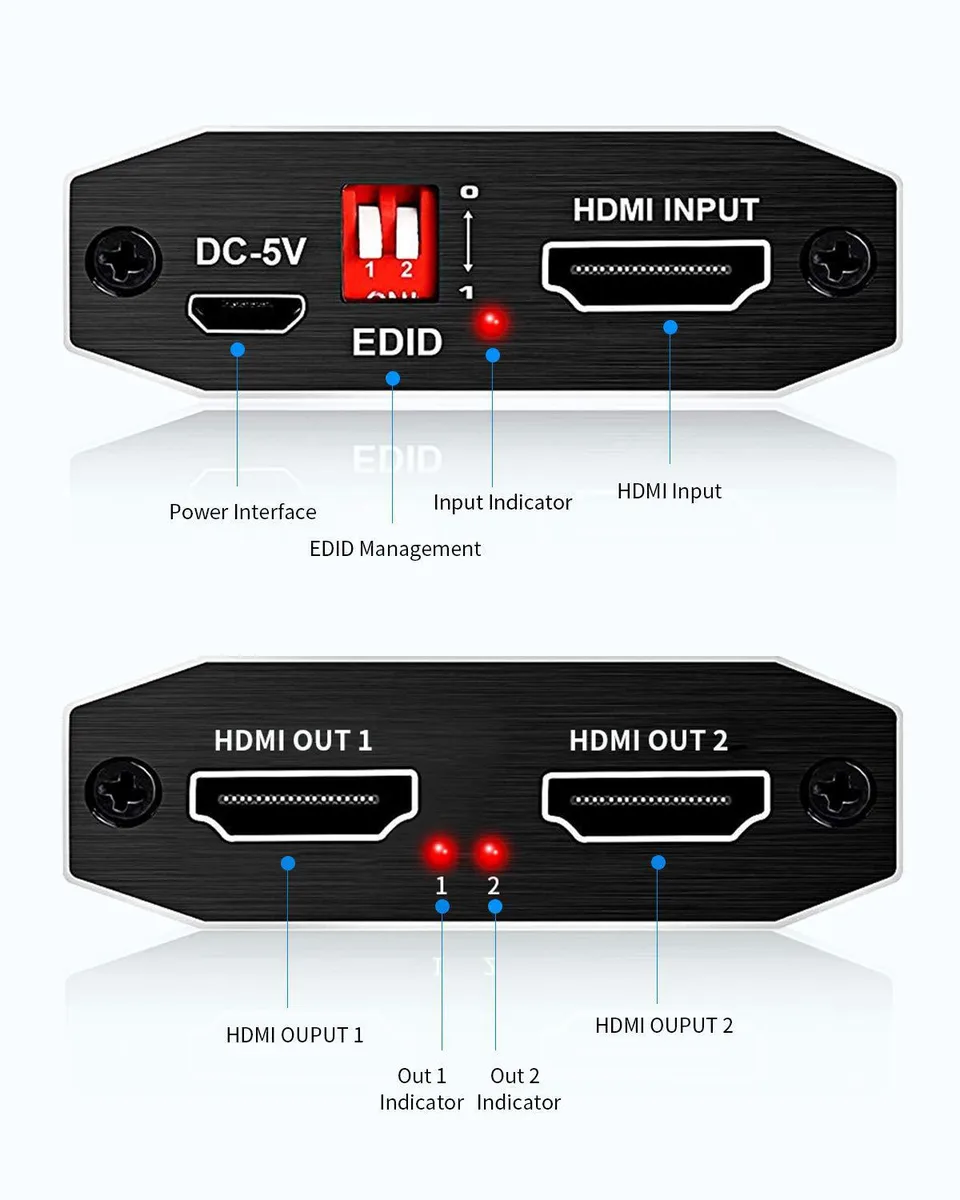

Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesHDMI Splitter 1x2: 4k 1x2 HDMI Splitter distributes 1 HDMI source duplicate to 2 different HDMI displays simultaneously. Transfer impressive and high-definition video and audio without loss and delay. (Duplicate input signal only, NOT support Extend)
High-grade Configuration: The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, EDID, 3D, RGB 4:4:4, Ultra HD Max Resolution 3840*2160 4k@60Hz. The most high-grade configuration gives you the most extreme enjoyment. It support doby vision, but it requires your display device support doby vision, too.
Wide Compability: This 4k HDMI splitter 1
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1.1x2 HDMI 2.0 Splitter HDCP 2.2 x1
2.AC Power Adaptor x1
3.User Manual x1

Questions about this item

Which LUOM OZF12-2 version should I pick for my setup?

Only the OZF12-2 model is offered; it provides one HDMI input and two HDMI outputs in a single black unit.

What does the 18 Gbps bandwidth mean when I connect it?

It allows 4K resolution at 60 Hz with RGB 4:4:4 chroma sampling and 30/36/48-bit deep colour, plus HDR and Dolby Vision pass-through.

How does the HDMI 2.0b interface limit cable length in practice?

The spec lists maximum input and output cable distances of 5 metres using AWG26 standard HDMI cables.
