Small black metal box with one HDMI input and two outputs

LUOM

LUOM OZF12 1x2 HDMI Splitter 4K@60Hz 18Gbps Black

SKU CH-0KBV-A0MQ7

Splits one HDMI input to two outputs with EDID handling at 4K 60 Hz, 18 Gbps bandwidth, HDR10 and 3D support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f

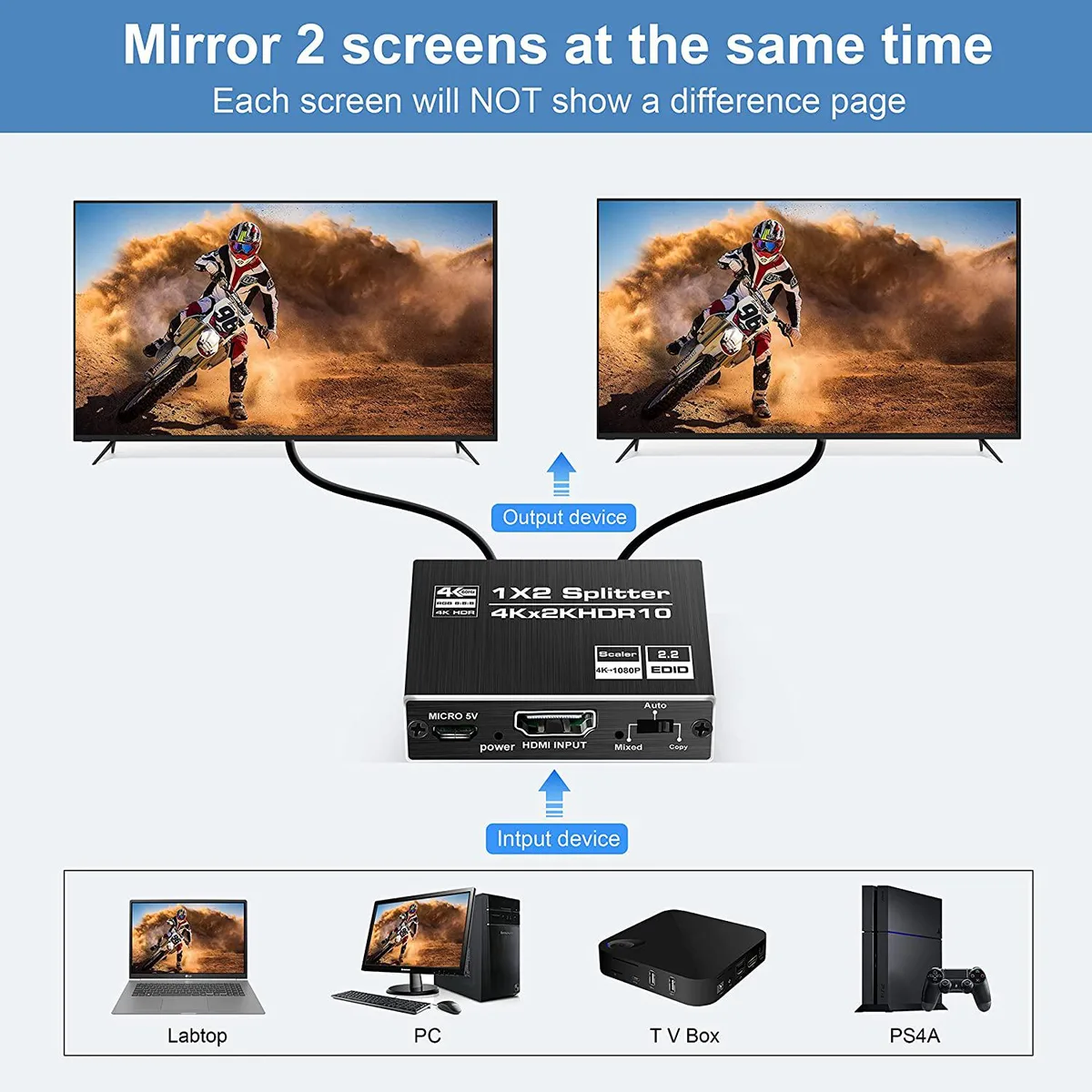

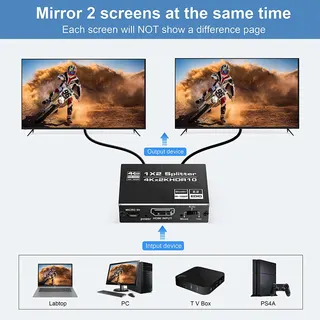

  • Duplicate one source to two displays simultaneously
  • 4K@60Hz 18Gbps bandwidth with HDR support
  • HDCP 2.2 compliant for protected content playback
  • Metal housing dissipates heat for stable signal up to 49ft
  • Supports 48bit deep color and 7.1-channel audio formats

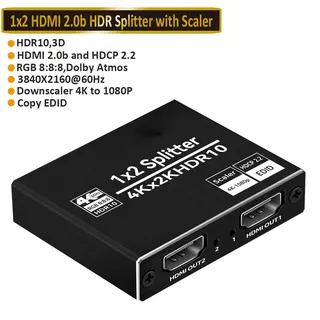

LUOM OZF12 1x2 HDMI Splitter 4K@60Hz

The LUOM OZF12 is a 1x2 HDMI splitter that duplicates a single 4K@60Hz source to two displays simultaneously. It supports HDMI 2.0b and HDCP 2.2 for protected content playback. The unit handles video resolutions up to 3840 x 2160 at 60Hz with deep color up to 48-bit. Audio formats including DTS-HD and Dolby TrueHD pass through via LPCM 7.1.

Check your source and cables before ordering

Verify your source device outputs HDMI 2.0b or earlier signals at 4K@60Hz or lower. The splitter requires a 5V/2A power adapter, which is included in the package. Use HDMI cables rated for 18Gbps bandwidth to maintain 4K@60Hz 4:4:4 transmission. Ensure both connected displays support the same resolution and refresh rate for proper EDID handshake.

Metal enclosure aids heat dissipation daily

The metal housing provides durability and passive cooling during continuous operation. Standard HDMI Type A connectors fit typical cables without adapters. With AWG22 cables, signal integrity holds up to 49ft on both input and output sides. The compact 5.59 x 3.15 x 1.26 inch form factor suits desk or rack placement. Note this device duplicates only; it cannot extend desktop space across screens.

Highlights

  • Duplicate one source to two displays simultaneously
  • 4K@60Hz 18Gbps bandwidth with HDR support
  • HDCP 2.2 compliant for protected content playback
  • Metal housing dissipates heat for stable signal up to 49ft
  • Supports 48bit deep color and 7.1-channel audio formats

Specifications

BrandLUOM
SeriesOZF12
ModelOZF12
Part NumberOZF12
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Video color format: 24bit/deep color 30bit, 36bit, 48bit
Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 600MHz
Max baud rate: 18.5Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: <17ft AWG28 HDMI standard cable
Output cable distance: <17ft AWG28 HDMI standard cable
Max working current: 1200mA
Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesFully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1

Questions about this item

What cables and power supply come with the LUOM OZF12 splitter?

The box contains the 1x2 HDMI splitter and a 5V/2A power adapter. You will need to provide three HDMI cables — one for the source and one for each display.

Does this model have different port counts or bandwidth options to choose from?

This OZF12 unit is a fixed 1-input, 2-output splitter with an 18Gbps bandwidth rating. No other port-count or bandwidth variants exist for this model.

Will 4K@60Hz 4:4:4 HDR work on both screens at the same time?

Yes. The splitter duplicates a single HDMI 2.0b signal up to 3840×2160 at 60 Hz with 4:4:4 colour, HDR and HDCP 2.2 on both outputs simultaneously.
