Small black metal box with one HDMI input and two HDMI outputs

LUOM

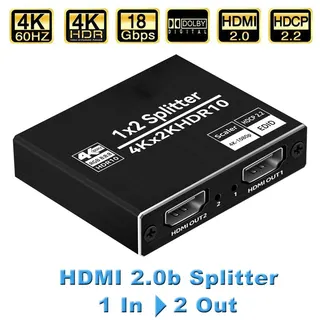

LUOM OZF12 1x2 HDMI Splitter 4K@60Hz 18Gbps

SKU CH-6NSR-800TB

Splits one HDMI input to two outputs at 4K 60 Hz with EDID support, 18 Gbps bandwidth and HDCP 2.2 compliance

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Duplicates one 4K@60Hz source to two displays
  • 18Gbps bandwidth carries 4K@60Hz RGB 4:4:4 and HDR
  • HDCP 2.2 compliant for protected 4K content
  • Metal housing dissipates heat for stable 49ft cable runs
  • Supports 7.1 surround and deep colour up to 48bit

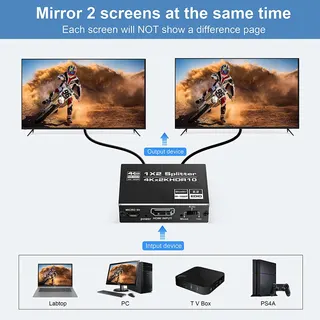

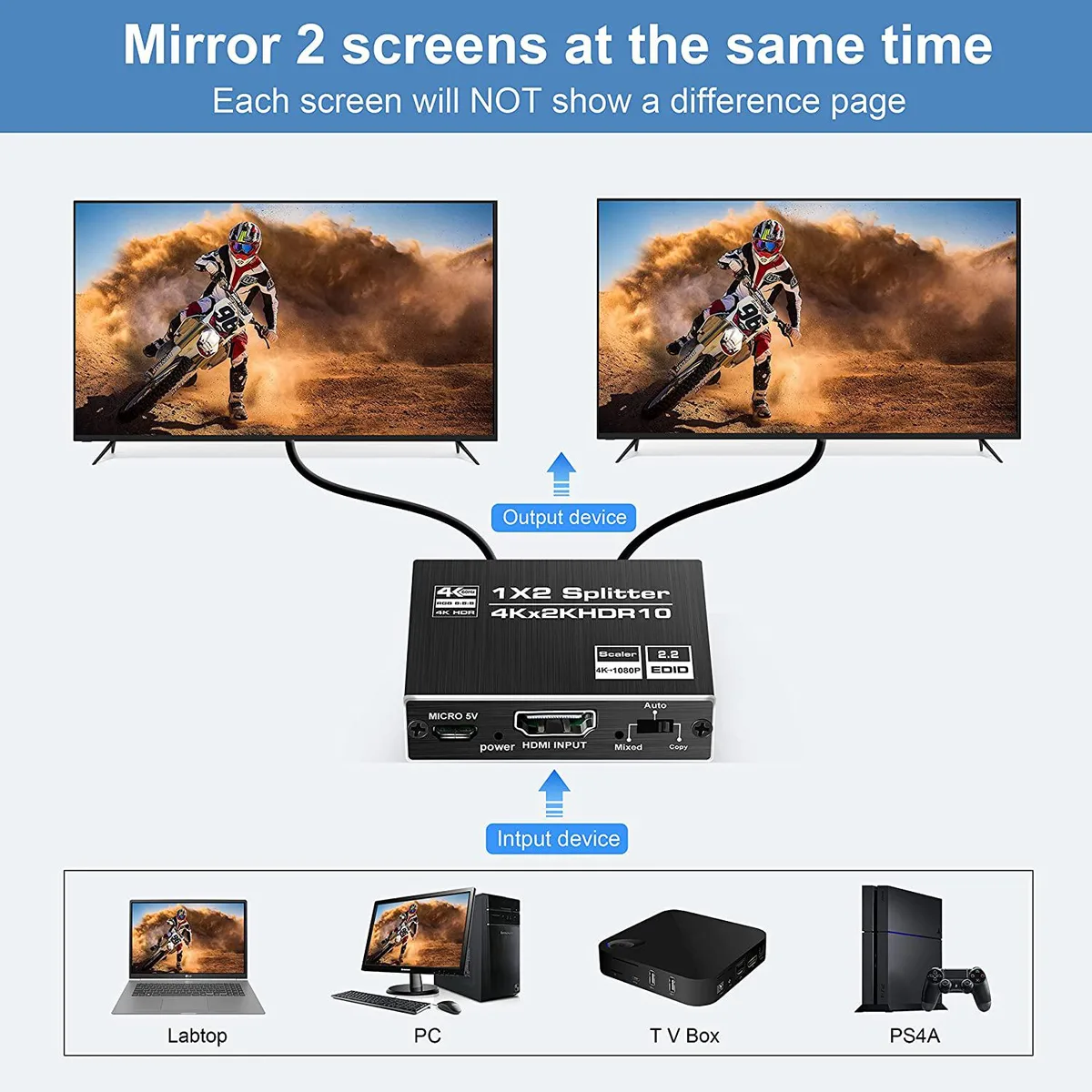

1x2 HDMI Splitter for 4K@60Hz duplication

The LUOM OZF12 takes a single HDMI source and mirrors it to two displays at up to 4K resolution and 60 Hz refresh. It supports HDMI 2.0b and HDCP 2.2 for protected content playback. The unit handles deep-colour video up to 48-bit and multi-channel audio formats including LPCM 7.1. This splitter is built for users who need identical output on two screens without extending the desktop.

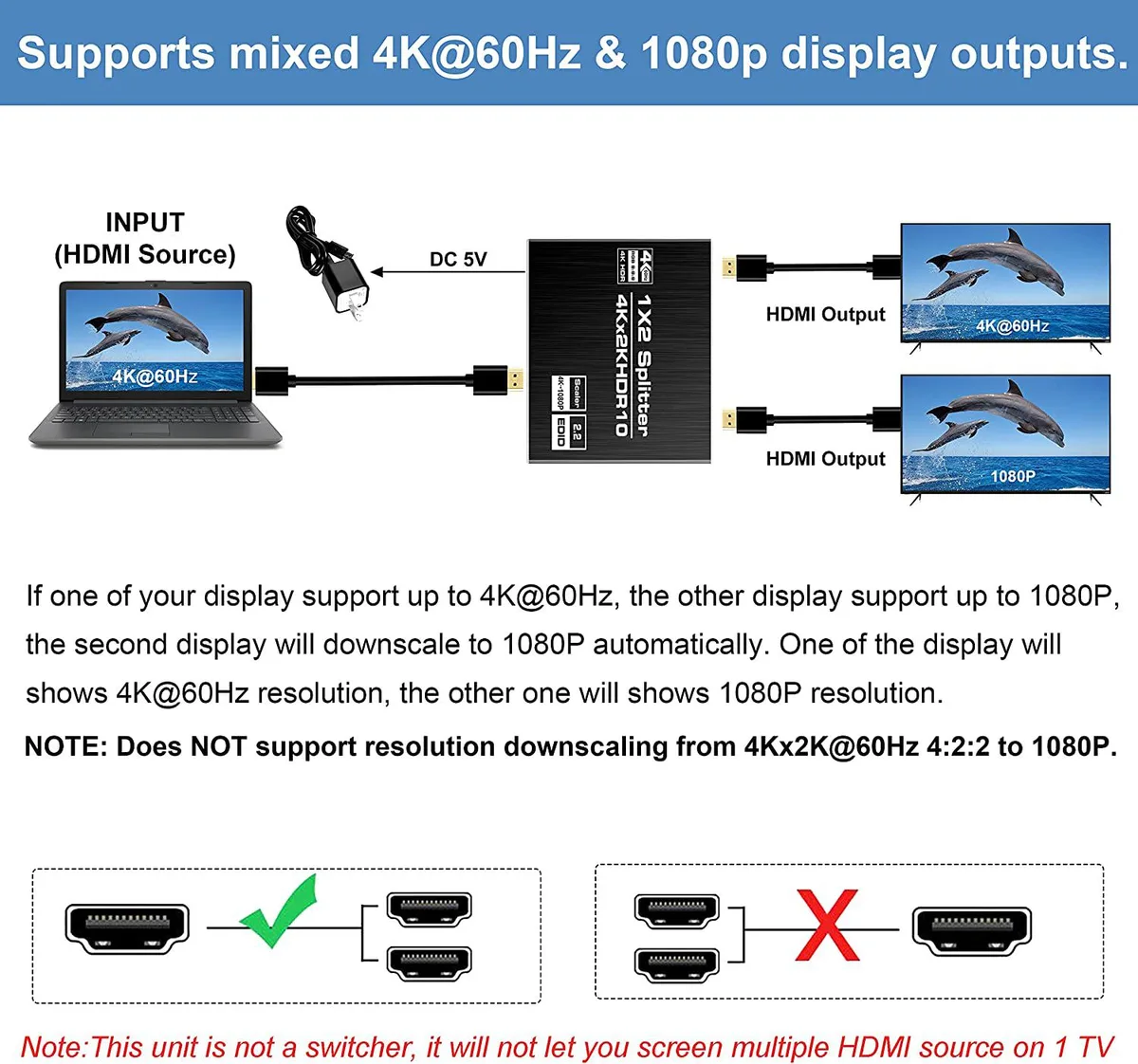

Fits between one source and two displays

Connect the source to the single HDMI input and two screens to the HDMI outputs using standard cables. The included 5 V/2 A power adapter ensures stable signal regeneration over longer runs. The metal enclosure aids heat dissipation during continuous operation. No software or drivers are required; the splitter manages EDID automatically for compatible handshake.

Handles 4K@60Hz and regenerates signals up to 49

The 18 Gbps bandwidth comfortably carries 3840 x 2160 at 60 Hz with 4:4:4 colour sampling. It also passes 1080p, 720p and legacy resolutions down to 480i. When AWG22 cables are used, the input can reach 49 ft and each output can reach 49 ft without signal degradation. The device does not support extended desktop modes, so each screen always shows the same image.

Highlights

  • Duplicates one 4K@60Hz source to two displays
  • 18Gbps bandwidth carries 4K@60Hz RGB 4:4:4 and HDR
  • HDCP 2.2 compliant for protected 4K content
  • Metal housing dissipates heat for stable 49ft cable runs
  • Supports 7.1 surround and deep colour up to 48bit

Specifications

BrandLUOM
SeriesOZF12
ModelOZF12
Part NumberOZF12
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Video color format: 24bit/deep color 30bit, 36bit, 48bit
Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 600MHz
Max baud rate: 18.5Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: <17ft AWG28 HDMI standard cable
Output cable distance: <17ft AWG28 HDMI standard cable
Max working current: 1200mA
Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesFully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1

Questions about this item

What bandwidth limit appears first when this splitter runs at 4K 60 Hz?

The 18 Gbps HDMI 2.0b bandwidth ceiling is reached at 4K 60 Hz 4:4:4, so sustained use at that rate cannot exceed the spec.

How much heat or noise does the metal enclosure produce during all-day operation?

The aluminium case passively dissipates heat with no fan, so it runs silently and stays warm but not hot under continuous load.

Which power source must already be available for the splitter to function?

A standard mains outlet for the included 5 V 2 A adapter is required; the unit has no USB or bus-powered option.
