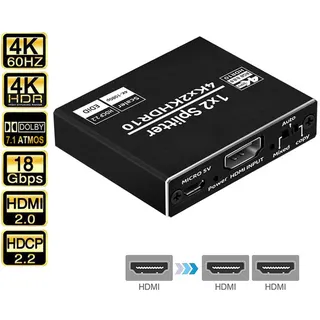

Black rectangular HDMI splitter with two output ports

LUOM

LUOM OZF12 1x2 HDMI 2.0 Splitter 4K@60Hz 18Gbps Black

SKU CH-4BS6-0ME61

Splits one HDMI source to two displays at 4K@60Hz with 18Gbps bandwidth and HDCP 2.2 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2 HDMI Resolution: 24/50/60f
  • Split one source to two displays with HDMI 2.0b
  • Enjoy 4K@60Hz RGB 4:4:4 and HDR on both screens
  • HDCP 2.2 compliant for protected 4K content
  • Metal chassis dissipates heat for stable long-cable runs
  • Includes 5V/2A power adapter for reliable operation

1-to-2 HDMI 2.0 Splitter 4K@60Hz

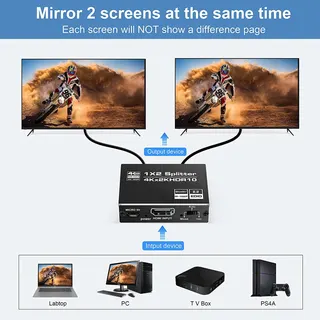

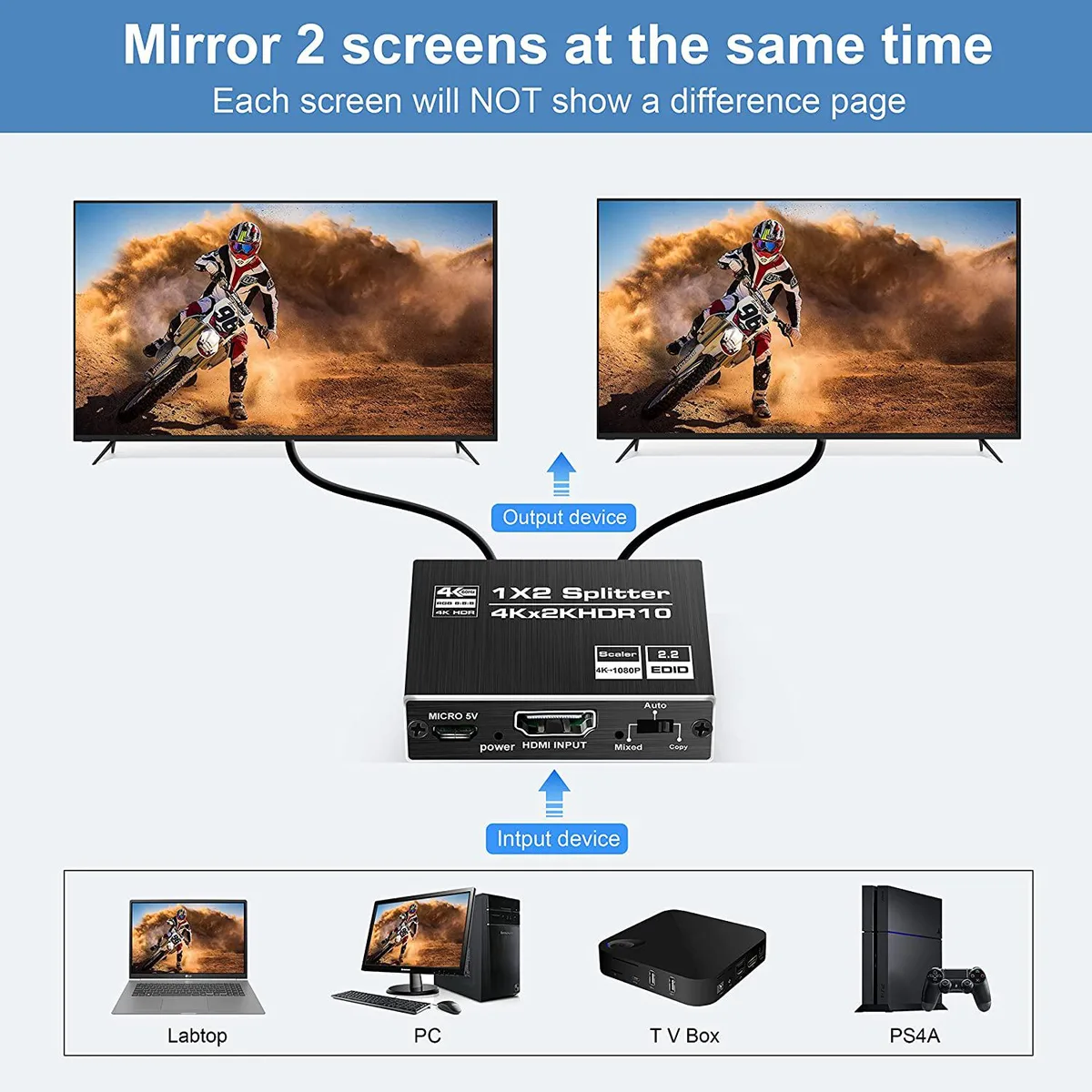

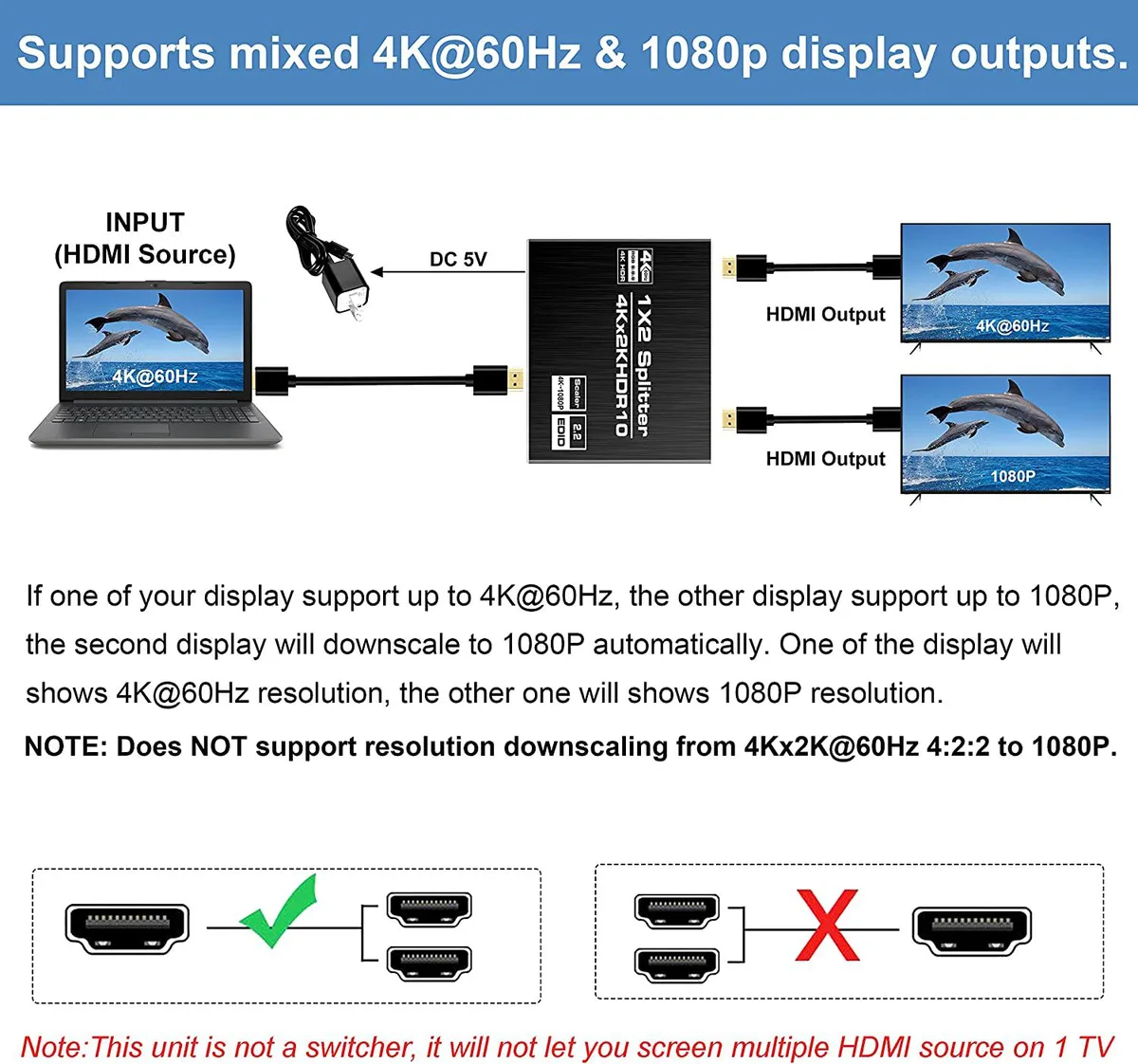

The LUOM OZF12 takes a single HDMI 2.0b source and duplicates it to two displays at up to 3840 x 2160 @60Hz. It supports 24-bit, 30-bit, 36-bit and 48-bit deep colour as well as HDCP 2.2 for protected content. Audio formats include DTS-HD, Dolby TrueHD and LPCM 7.1 pass-through. The unit is intended for mirroring only and does not extend desktops.

Metal enclosure with passive cooling

A tough metal housing dissipates heat without a fan, so operation stays silent in normal use. The device draws power from an included 5V/2A adapter and runs from 25 MHz to 600 MHz bandwidth with 18 Gbps throughput. Jitter-clean circuitry keeps the signal stable over cascaded connections. No active cooling or audible noise is present during typical playback.

1 HDMI input, 2 HDMI outputs

One HDMI input and two HDMI outputs use standard connectors compatible with AWG22 cables. Input runs up to 49 ft and each output up to 49 ft when suitable cables are used. The package includes the splitter and the 5V/2A power adapter. The compact 5.59 x 3.15 x 1.26 inch form factor fits easily behind displays or in AV racks.

Highlights

  • Split one source to two displays with HDMI 2.0b
  • Enjoy 4K@60Hz RGB 4:4:4 and HDR on both screens
  • HDCP 2.2 compliant for protected 4K content
  • Metal chassis dissipates heat for stable long-cable runs
  • Includes 5V/2A power adapter for reliable operation

Specifications

BrandLUOM
SeriesOZF12
ModelOZF12
Part NumberOZF12
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
SpecificationsHDMI version: HDMI 2.0b, HDCP 2.2
HDMI Resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz
Video color format: 24bit/deep color 30bit, 36bit, 48bit
Audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 600MHz
Max baud rate: 18.5Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal: 5Volts p-p (TTL)
Input cable distance: <17ft AWG28 HDMI standard cable
Output cable distance: <17ft AWG28 HDMI standard cable
Max working current: 1200mA
Power adapter format Input: AC100V-240V (50/60Hz) ; Output: DC 5V/2A
Operating
Input Connector1 HDMI input
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesFully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.
specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP 2.2 specification.
Wide Frequency Range: 25MHz-600MHz.
Supports high resolutions up to 3840×2160 @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.
Supports jitter Clean capability for more cascadable stages.
Supports 12-bit Deep Full HD, Full 3D and 4K@ 60Hz video.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x2 HDMI Splitter 4K@60Hz*1, 5V/2A Power adapter*1

Questions about this item

How do I install the LUOM OZF12 HDMI 2.0 splitter and what step do people often miss?

Connect the 5V/2A power adapter first, then link one source to the single HDMI input and two displays to the HDMI outputs. The step people miss is powering the unit before connecting video cables, which is required for HDCP 2.2 handshake and 18Gbps bandwidth.

What maintenance or replacement will the LUOM OZF12 splitter need over time?

The external 5V/2A power adapter is the only replaceable part. The metal enclosure provides passive cooling with no fans or filters to clean. If the adapter fails, replace it with an equivalent 5V/2A unit to maintain 4K@60Hz performance.

What limit appears first when the LUOM OZF12 splitter runs continuously at 4K@60Hz?

Cable length is the first limit. Using AWG22 HDMI cables, the maximum reliable distance is 49ft for the input and 49ft for each output. Beyond that, signal jitter increases despite the on-chip equalisation and 25MHz-600MHz frequency range.
