Black rectangular HDMI splitter with one input and two output ports

LUOM

LUOM OZF10 4K@60Hz HDMI Splitter 1 in 2 Out

SKU CH-RXBD-0PTC8

Duplicates one HDMI source to two displays at 4K 60 Hz with HDCP 1.4 and 10.5 Gbps bandwidth

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications4K@60Hz HDMI Splitter 1 in 2 out One HDMI input to Two HDMI
  • Mirrors one source to two displays simultaneously
  • Delivers 4K at 60 Hz with 10.5 Gbps bandwidth
  • Supports deep colour 8, 10 and 12 bit
  • Passes DTS-HD, Dolby TrueHD and LPCM 7.1 audio
  • Compact 5.59 × 3.15 × 1.26 in design

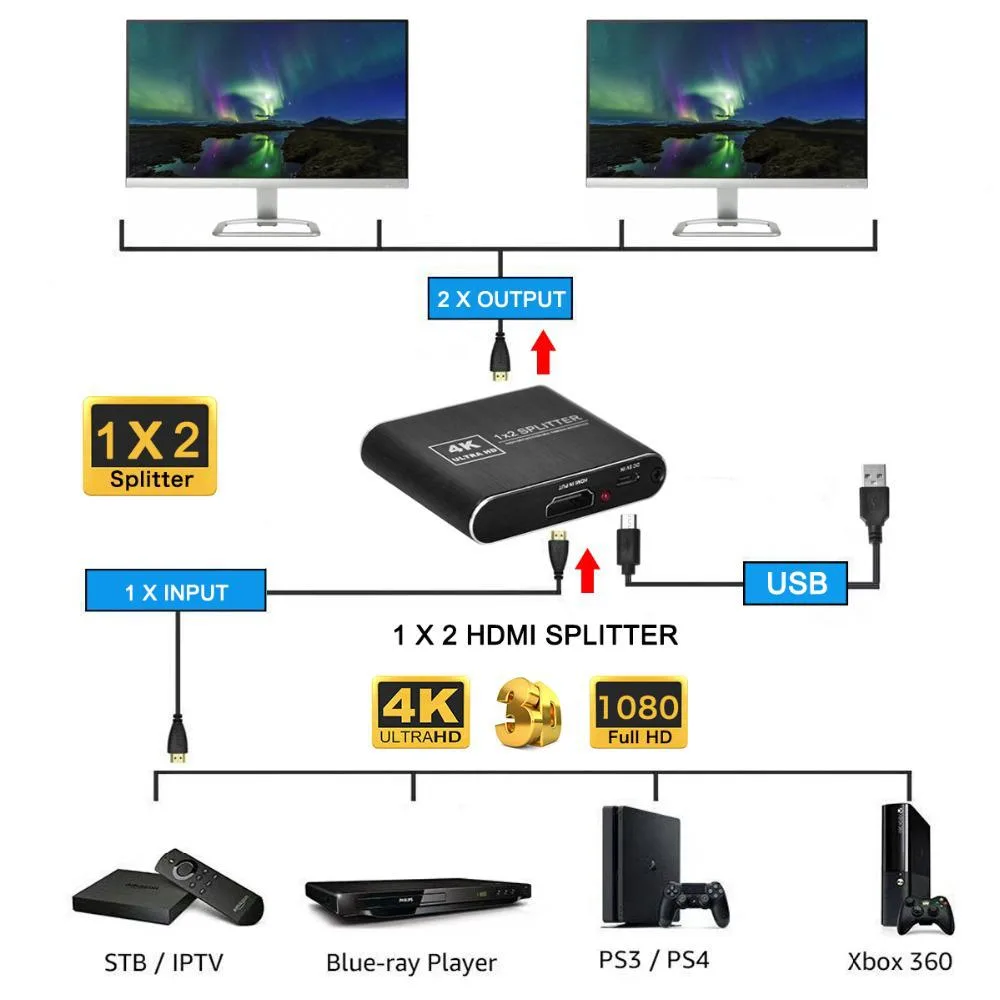

One input to two HDMI outputs

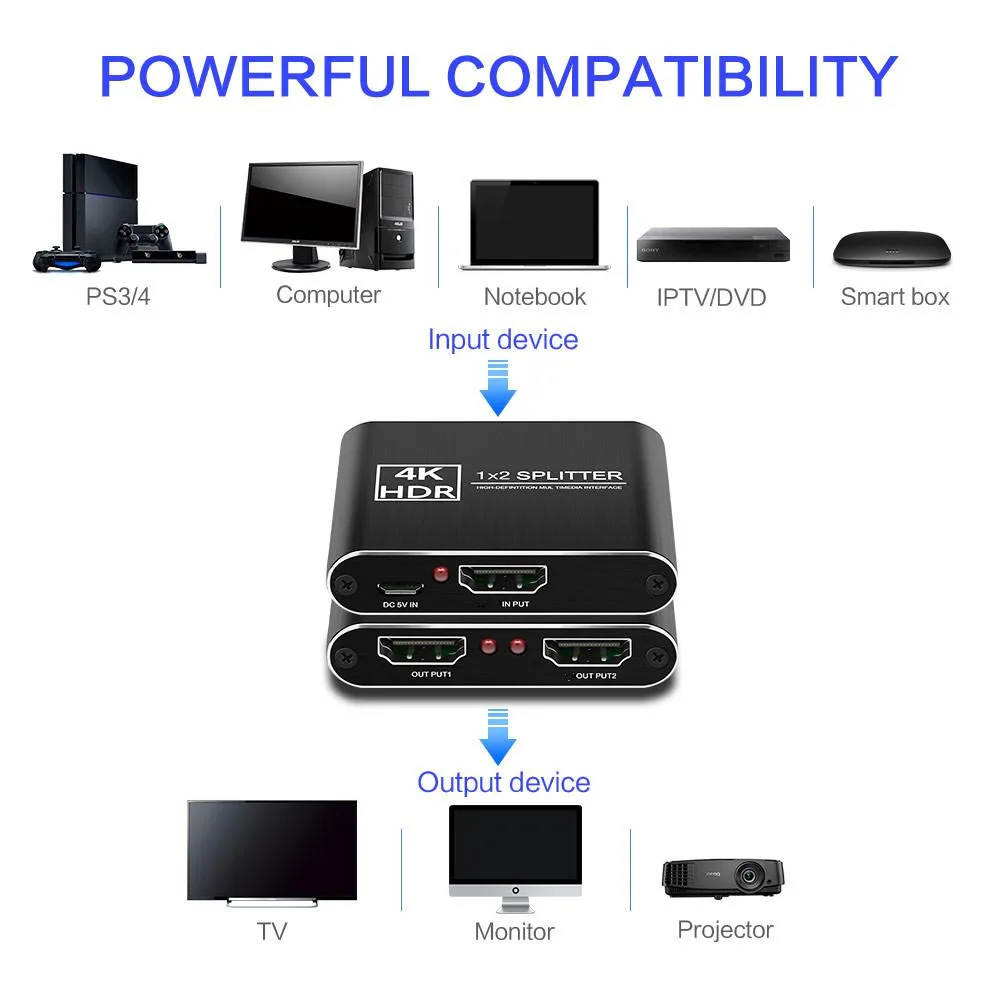

The LUOM OZF10 splits a single HDMI source across two displays, mirroring video and audio at up to 4K@60Hz. It suits installers or home users who need the same picture on a TV and a projector, or on screens in separate rooms, without extending the desktop.

Compact enclosure with USB power option

The black unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits behind equipment or on a shelf. A supplied USB cable can power the splitter for more stable 4K@60Hz transmission over AWG 26 cables up to 16 feet.

Replaces basic 1080p splitters

The jump is worth it when you need 4K@60Hz with 10.5Gbps bandwidth, HDCP1.4 compliance and deep-colour support up to 12-bit. It does not extend monitors, so buyers who want independent screens should look elsewhere.

Highlights

  • Mirrors one source to two displays simultaneously
  • Delivers 4K at 60 Hz with 10.5 Gbps bandwidth
  • Supports deep colour 8, 10 and 12 bit
  • Passes DTS-HD, Dolby TrueHD and LPCM 7.1 audio
  • Compact 5.59 × 3.15 × 1.26 in design

Specifications

BrandLUOM
SeriesOZF10
ModelOZF10
Part NumberOZF10
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
Specifications4K@60Hz HDMI Splitter 1 in 2 out
One HDMI input to Two HDMI Outputs
Support HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
PAY ATTENTION: NO support Extended Mode.
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth10.5Gbps
FeaturesSupport HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K@60Hz HDMI splitter 1 in 2 out
1 x USB cable
1 x User Manual

Questions about this item

What bandwidth does the HDMI 2.0 interface cap at?

The splitter is rated for a maximum bandwidth of 10.5 Gbps, which is the practical ceiling for HDMI 2.0 at 4K 60 Hz.

What are the physical dimensions and weight for mounting?

The unit measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, so it fits easily on a shelf or behind a display with double-sided tape or a small bracket.

How is it powered and what step do users miss?

It draws power from the included USB cable; the step often missed is plugging that cable into a live USB port or charger before expecting a stable 4K 60 Hz signal on both outputs.
