Small black box with one HDMI input and two HDMI outputs

LUOM

LUOM OZF10 1x2 HDMI Splitter 4K@60Hz 10.5Gbps audio

SKU CH-ND5R-C4V9R

A 1x2 HDMI 2.0 splitter mirrors 4K@60Hz video and multi-channel audio to two displays with 10.5Gbps bandwidth and HDCP1.4 support

  • TypeHDMI Splitters
  • Changer TypeHDMI
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications4K@60Hz HDMI Splitter 1 in 2 out One HDMI input to Two HDMI
  • Mirror 4K@60Hz to two displays from one source
  • 5 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • HDCP 1.4 and HDMI 2.0 keep protected content playing
  • Deep colour 8, 10 and 12 bit plus DTS-HD and Dolby TrueHD audio
  • USB power cable adds stability for longer cable runs

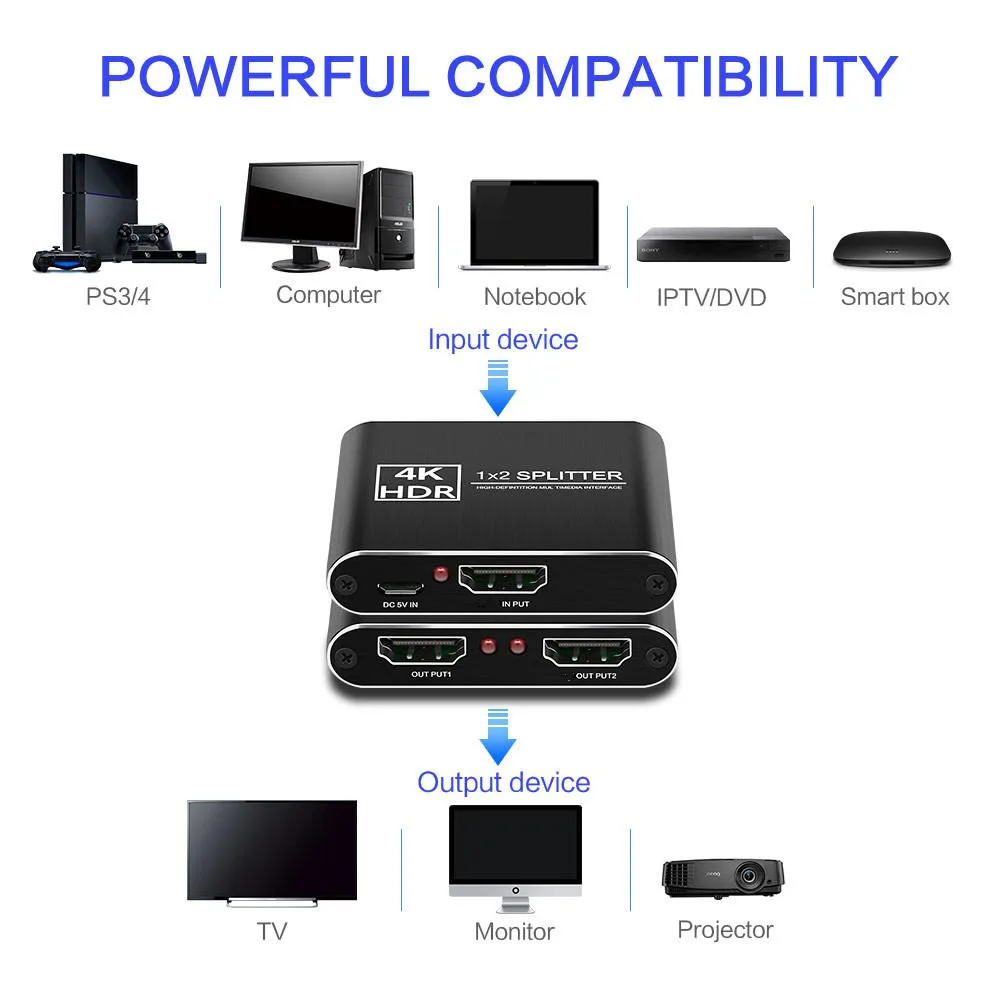

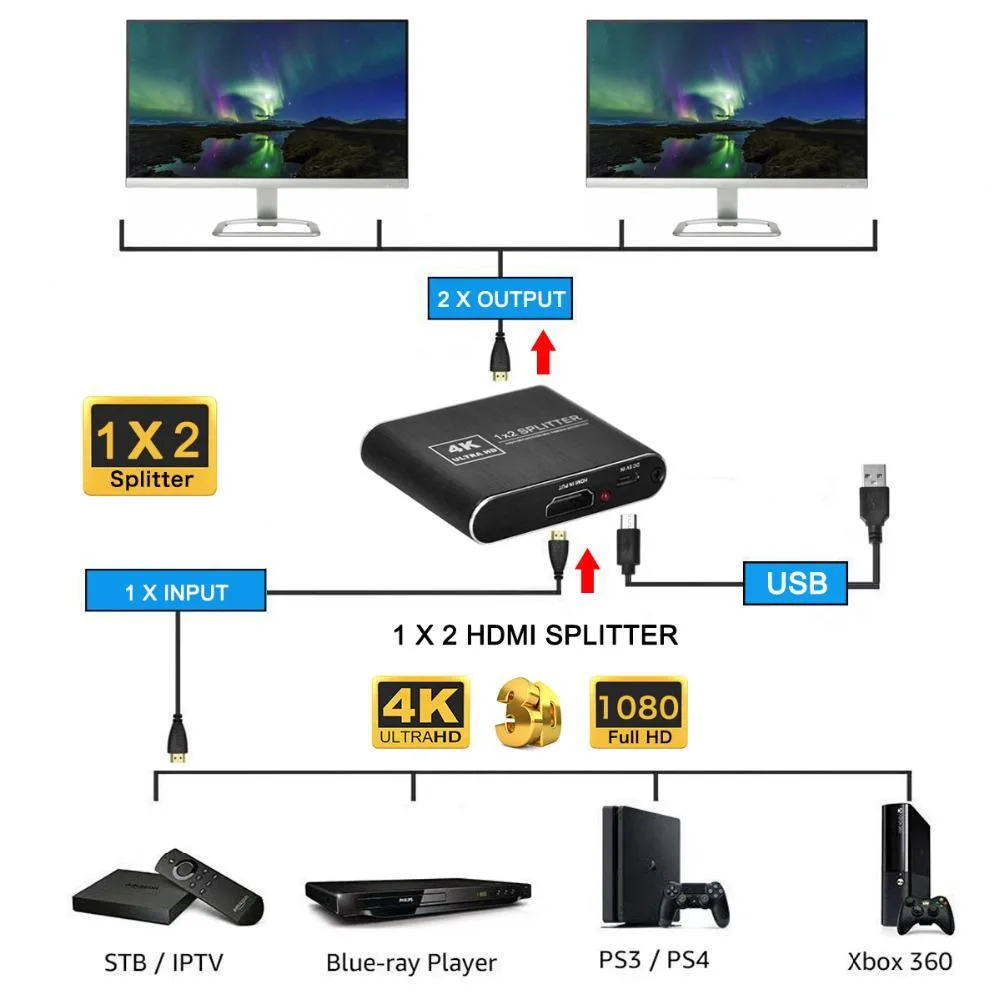

Splitter for Mirroring One Source to Two Displays

The LUOM OZF10 takes a single HDMI input and duplicates it across two HDMI outputs at up to 4K resolution and 60 Hz refresh rate. It handles 10.5 Gbps bandwidth and supports HDCP 1.4, HDMI 2.0 and YUV 4:2:0 colour sampling. Audio formats including DTS-HD, Dolby TrueHD and LPCM 7.1 pass through unchanged. This unit is for users who need identical content on two screens simultaneously; it does not extend a desktop across monitors.

Check Source Resolution

Both connected displays must be set to the same resolution for reliable operation. The source device must output a signal the splitter can handle, such as 4K at 60 Hz, 30 Hz or 1080p. Using AWG 26 HDMI cables, the maximum tested run is 16 feet at 4K 60 Hz. Longer or thinner cables may reduce stability. A USB power cable is included and should be connected to maintain consistent signal quality.

Compact Metal Housing with Side-Facing Ports

The black enclosure measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, making it easy to tuck behind a display or AV rack. All three HDMI ports face the same edge, so cables run parallel and stay tidy in tight spaces. The supplied USB cable draws power from any standard USB port, removing the need for a separate mains adapter. Build quality feels solid for permanent installation or occasional repositioning.

Highlights

  • Mirror 4K@60Hz to two displays from one source
  • 5 Gbps bandwidth carries 3840 x 2160 at 60 Hz
  • HDCP 1.4 and HDMI 2.0 keep protected content playing
  • Deep colour 8, 10 and 12 bit plus DTS-HD and Dolby TrueHD audio
  • USB power cable adds stability for longer cable runs

Specifications

BrandLUOM
SeriesOZF10
ModelOZF10
Part NumberOZF10
TypeHDMI Splitters
Changer TypeHDMI
Ports2
AudioYes
ColorBlack
Specifications4K@60Hz HDMI Splitter 1 in 2 out
One HDMI input to Two HDMI Outputs
Support HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
PAY ATTENTION: NO support Extended Mode.
Input Connector1 HDMI
Output Connector2 HDMI
Maximum Resolutions3840 x 2160
Bandwidth10.5Gbps
FeaturesSupport HDCP1.4, HDMI2.0, YUV 4:2:0.
Supports Ultra HD 4Kx2K (4K@60HZ/ 30HZ) 1080P/ 1080i, 720p/ 720i, 480p/ 480i; Deep color 8bit,10bit, 12bit.
Support digital audio formats including DTS-HD, Dobly-true HD, LPCM 7.1, DTS, Dobly-AC3, DSD, HD(HBR)
With the AWG26 (19+1) HDMI standard cable: When the resolution is 1080P or below, input and output up to 26ft (8m); When the resolution is 4K, input and output up to 16ft (5m).
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 4K@60Hz HDMI splitter 1 in 2 out
1 x USB cable
1 x User Manual

Questions about this item

What comes in the box and do I need to buy any cables separately?

The package includes the 1x2 HDMI splitter, a USB power cable, and a user manual. HDMI cables for the input and two outputs are not included and must be purchased separately.

How do I choose between the supported resolutions and refresh rates for my displays?

The splitter handles 4K at 60Hz or 30Hz, 1080p, 1080i, 720p, 720i, 480p, and 480i. Both connected displays must be set to the same resolution for proper operation.

What does the 10.5Gbps bandwidth mean for my 4K@60Hz setup?

The 10.5Gbps bandwidth supports 4K@60Hz with YUV 4:2:0 chroma subsampling and deep colour up to 12-bit. Using AWG 26 HDMI cables, the signal reaches up to 16ft at 4K 60Hz.
