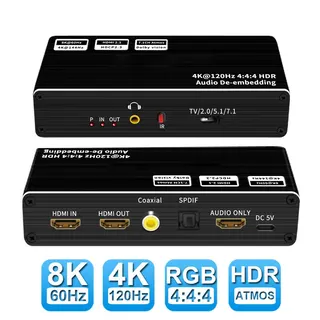

Small black box with HDMI, Toslink, coaxial and 3.5mm ports

LUOM

LUOM OZ8V1 HDMI 2.1 Audio Extractor 8K 60Hz 48Gbps 7.1CH

SKU CH-XE2D-JS0A3

Extracts 7.1-channel HDMI audio plus optical, coaxial and 3.5 mm stereo while passing 8K 60 Hz and 4K 120 Hz video at 48 Gbps

  • TypeHDMI Splitters
  • Changer TypeHDMI Audio Extractor
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsInput ports: 1XHDMI Output port: 1 XHDMI(Female type ) 1 XHD
  • Extract 7.1-channel audio via HDMI output for full surround sound
  • Send 5.1-channel audio to soundbars through optical Toslink connection
  • Output 5.1-channel audio to older amplifiers using coaxial digital output
  • Connect stereo headphones or speakers via 3.5 mm analogue jack
  • Pass 8K 60 Hz video with 48 Gbps bandwidth and HDCP 2.3 support

Purpose-built extractor

The LUOM OZ8V1 is an HDMI 2.1 audio extractor that takes one HDMI input and provides an HDMI loop-through plus four separate audio outputs. It handles 8K at 60 Hz, 4K at 120 Hz and 5120x1440 at 120 Hz with 48 Gbps bandwidth. The unit is aimed at gamers and home-cinema users who need to send multichannel sound to a soundbar or AV receiver while keeping the video path intact.

Connections and build

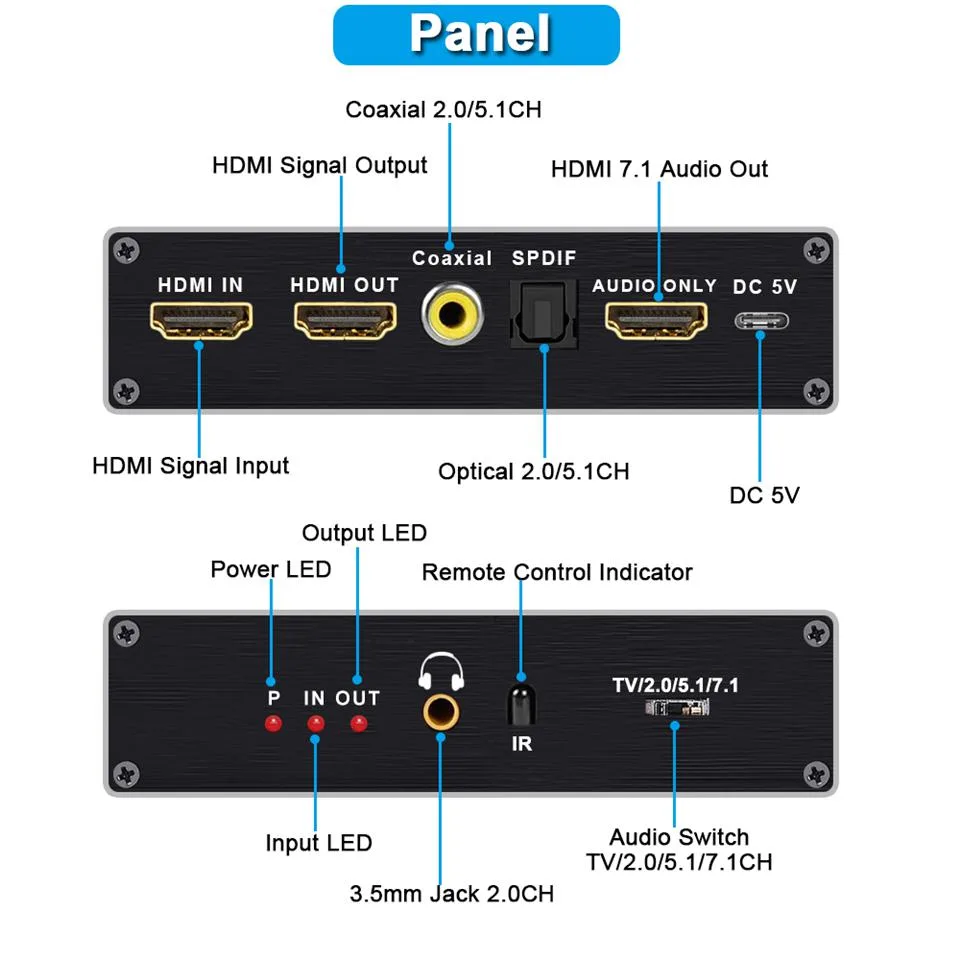

A compact black enclosure measuring 5.59 x 3.15 x 1.26 inches houses one HDMI input, one HDMI output, an HDMI audio output supporting 7.1-channel LPCM, an optical Toslink port and a coaxial port each supporting 5.1-channel audio, and a 3.5 mm jack for stereo extraction. HDCP 2.2 and 2.3 bypass, CEC pass-through and EDID switching are built in, so the extractor fits cleanly between a PS5, Xbox Series X or similar source and the display without handshake issues.

Included extras

The package supplies the extractor, an IR remote for switching EDID modes without reaching behind the rack, a 5 V/1 A DC power adapter and a user manual. The remote lets you select the appropriate EDID profile for 8K, 4K high-refresh or legacy sinks, while the bundled power supply ensures stable operation at the full 48 Gbps rate. No HDMI cables are included, so buyers must provide their own certified 48 Gbps leads.

Highlights

  • Extract 7.1-channel audio via HDMI output for full surround sound
  • Send 5.1-channel audio to soundbars through optical Toslink connection
  • Output 5.1-channel audio to older amplifiers using coaxial digital output
  • Connect stereo headphones or speakers via 3.5 mm analogue jack
  • Pass 8K 60 Hz video with 48 Gbps bandwidth and HDCP 2.3 support

Specifications

BrandLUOM
SeriesOZ8V1
ModelOZ8V1
Part NumberOZ8V1
TypeHDMI Splitters
Changer TypeHDMI Audio Extractor
Ports4
AudioYes
ColorBlack
SpecificationsInput ports: 1XHDMI
Output port: 1 XHDMI(Female type )
1 XHDMI Audio output: support 7.1CH audio extract function
1 XToslink Audio output: support 5.1CH audio extract function
1 XCoaxial Audio output: support 5.1CH audio extract function
1 x3.5mmJack output: support 2.0CH audio extract function
Audio support: LPCM 7 .1CH,Dolby TrueHD ,DTS-X and DTS -HD Master Audio
Video Resolution: up to 8k@60Hz/4K@120Hz RGB 4 :4:4
Operating Temperature: 0 C to 40 C/ 32Fto 104F
Storage Temperature: - 20 C to 6 C/ -4F to 104F
Dimensions: 130X61X30MM
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions5120x1440
Bandwidth48Gbps
Features4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents48Gbps HDMI 2.1 Audio Extractor: 1 pcs
IR Remote control: 1 pcs(without battery)
5V/1A DC Power Adapter: 1 pcs
User Manual: 1 pcs

Questions about this item

What HDMI version and bandwidth does the LUOM OZ8V1 support, and what resolution ceiling does that enforce?

The extractor uses HDMI 2.1 with 48Gbps bandwidth, allowing up to 8K at 60Hz or 4K at 120Hz RGB 4:4:4.

What are the exact dimensions and weight of the LUOM OZ8V1, and does it need external power?

It measures 130 x 61 x 30 mm and weighs 3.2 ounces; a 5V/1A DC adapter is included and required.

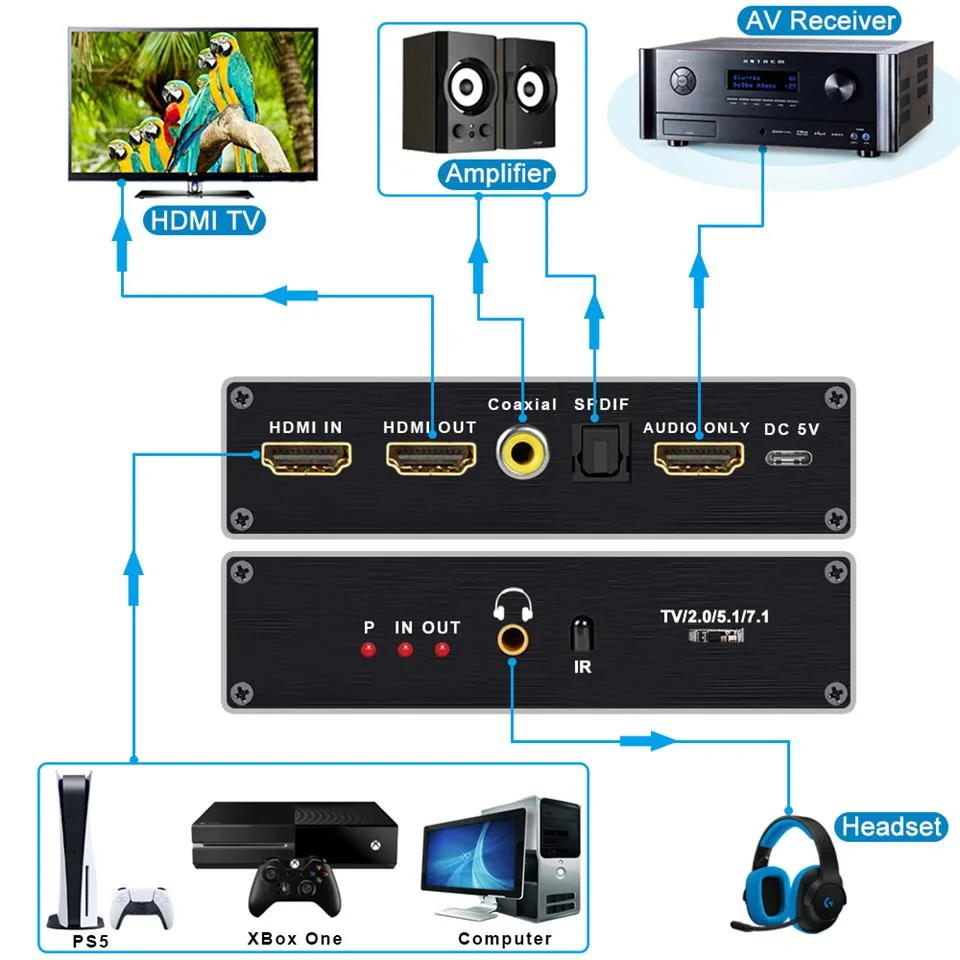

How do I connect the LUOM OZ8V1 so that 7.1-channel audio reaches my AV receiver?

Use the HDMI audio output for 7.1CH LPCM, Dolby TrueHD or DTS-HD Master Audio; Toslink and coaxial only carry 5.1CH.
