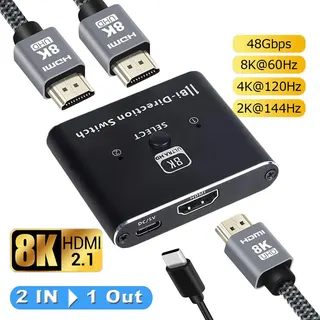

Compact black HDMI switch box with three ports and a selector button

LUOM

LUOM OZ8AB 8K Bi-Directional HDMI Switch 2x1/1x2 48Gbps

SKU CH-2ZJZ-00GQC

A bi-directional HDMI 2.1 switch connects two sources to one display or one source to two displays at 8K 60 Hz and 4K 120 Hz with 48 Gbps bandwidth

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2-Port UHD
  • Specifications· Product Type: 8K Bi-Directional HDMI Switcher Splitter · I
  • Input Connector2 x HDMI
  • Bi-directional design lets two sources share one screen or one source feed two displays
  • 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz or 144Hz
  • Manual push-button switching avoids wear from repeated cable changes
  • Aluminium alloy housing dissipates heat for stable signal transfer
  • Compact 5.91 x 2.36 x .79 inch form factor fits tight spaces

What this switch does

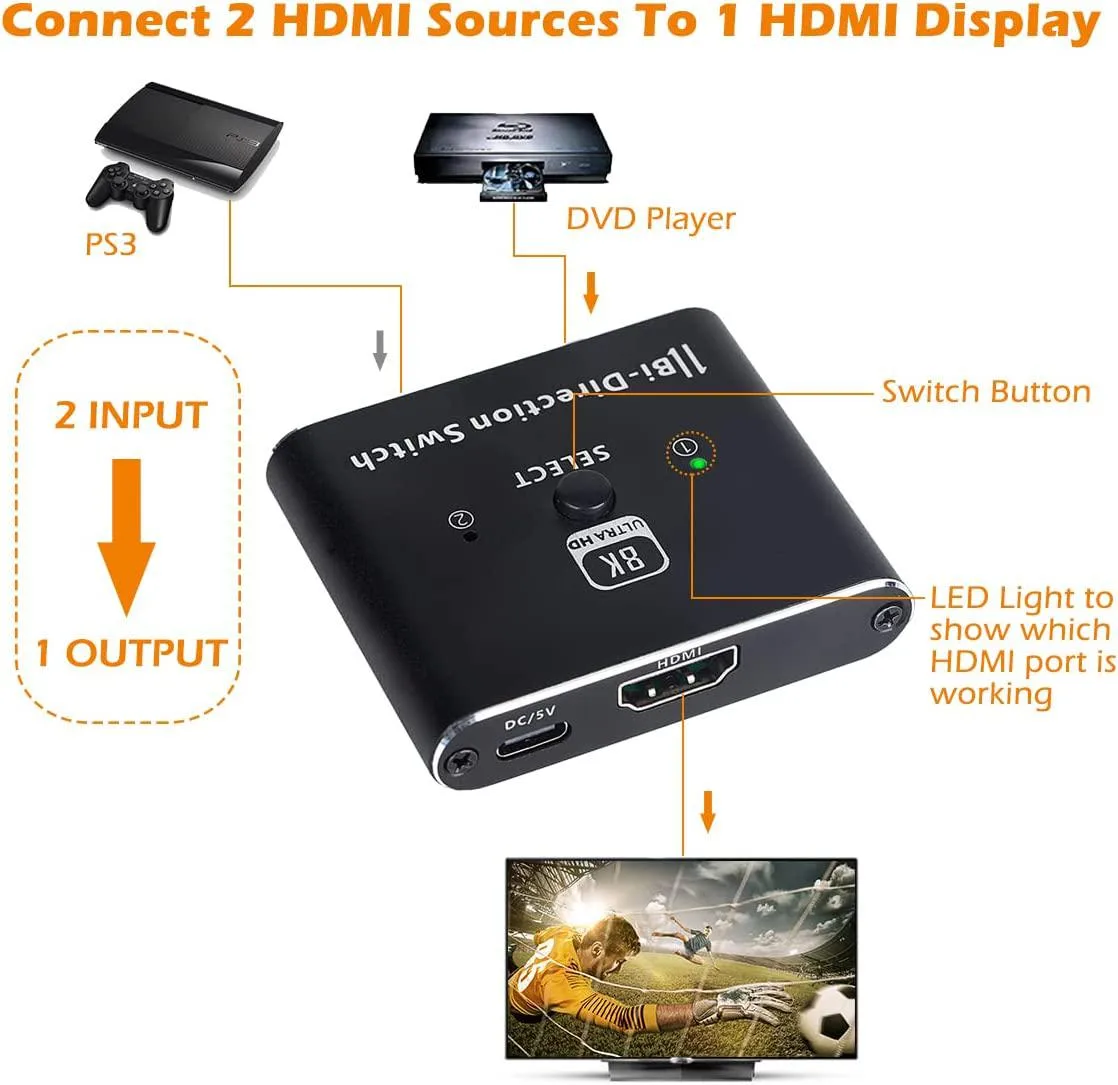

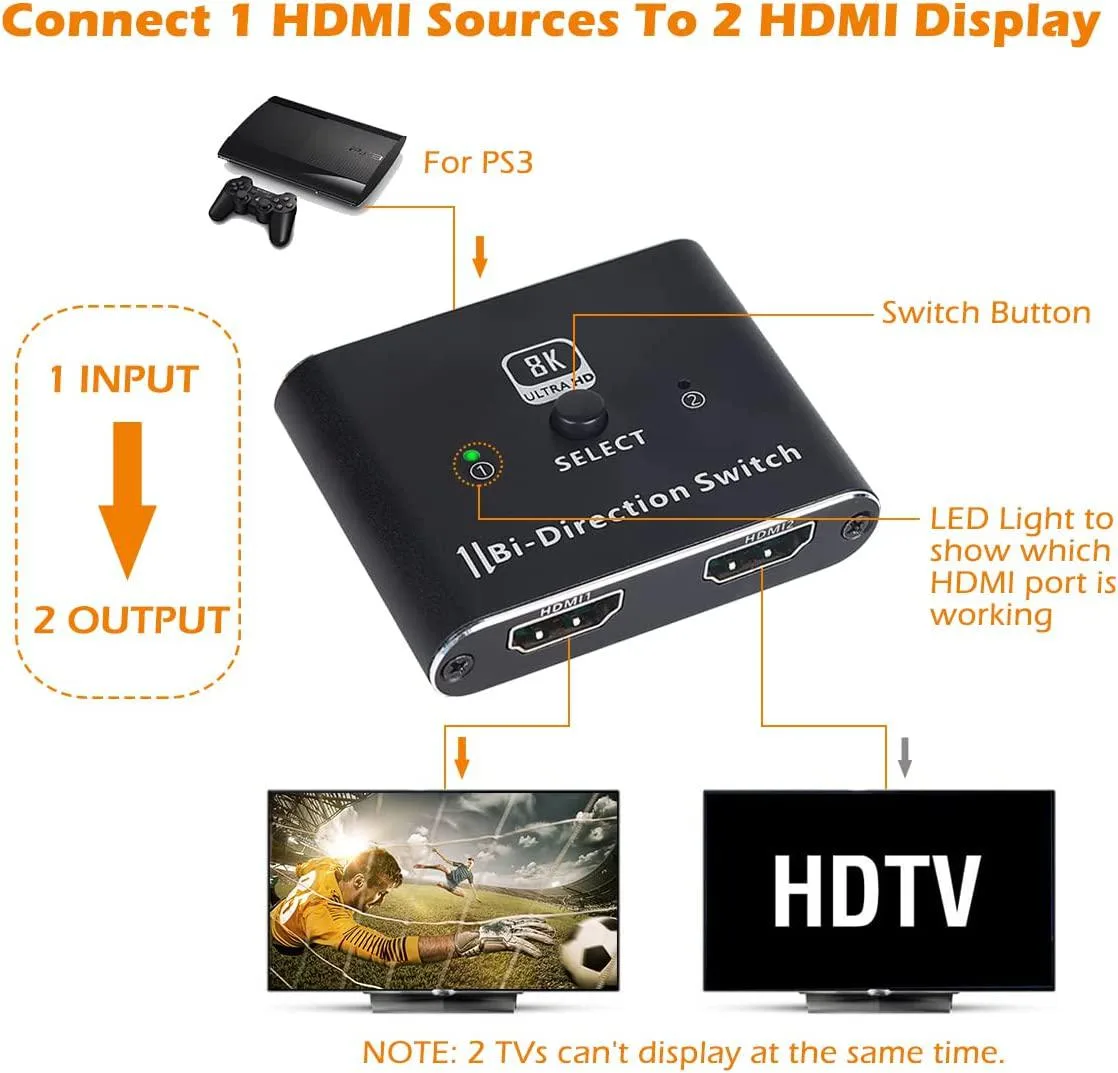

The LUOM OZ8AB is an 8K bi-directional HDMI 2.1 switch that handles 2×1 switching or 1×2 splitting at up to 48 Gbps. It lets you route two sources to one display or one source between two displays, though both outputs cannot show an image at the same time. Gamers and home-cinema users get 8K at 60 Hz, 4K at 120 Hz or 144 Hz, and 1080p at 240 Hz without swapping cables. It is not for installations that need simultaneous dual-display output or automatic source detection.

Build and daily connections

A compact aluminium-alloy chassis measures 5.91 by 2.36 by 0.79 inches and weighs 11.9 ounces, so it sits discreetly on a desk or behind a TV. Three HDMI ports — two inputs and one output that reverses roles in splitter mode — are selected by a tactile push button; there is no auto-switching. The unit requires the supplied DC 5 V power cable for stable operation, and manual changes on high-power sources may take three to six seconds to settle.

Included accessories and their effect

The box contains the switch, a DC 5 V power cable and a user manual. The dedicated power adapter ensures reliable 48 Gbps bandwidth for Dynamic HDR, VRR and full 4:4:4 chroma at 8K 60 Hz. No HDMI cables are bundled, so you must provide certified Ultra High Speed leads no longer than three metres to reach the advertised resolutions.

Highlights

  • Bi-directional design lets two sources share one screen or one source feed two displays
  • 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz or 144Hz
  • Manual push-button switching avoids wear from repeated cable changes
  • Aluminium alloy housing dissipates heat for stable signal transfer
  • Compact 5.91 x 2.36 x .79 inch form factor fits tight spaces

Specifications

BrandLUOM
SeriesOZ8AB
ModelOZ8AB
Part NumberOZ8AB
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2-Port UHD
Specifications· Product Type: 8K Bi-Directional HDMI Switcher Splitter
· Interface Type: 2 HDMI In/Out, 1 HDMI Out/In
· Please use the supplied DC 5V charger to power the device.
· Portable and compact design takes very little space setting it up, easy to carry and use.
Input Connector2 x HDMI
Output Connector1 x HDMI
Maximum Resolutions7680x4320
Bandwidth48Gbps
Features· This is a 2 in 1 out switcher, and 1 in 2 Out a HDMI Splitter (2 Output CANNOT display simultaneously).
· Does not support automatic switching, only supports manual switching. For some high-power devices, it may take 3-6 seconds to manually switch the signal source.
· It can well work with xbox or PS5 to achieve 4K@120hz in your tvs or relatively monitors.
· If you need to output 8K@60Hz and 4K@120Hz, we recommend using high-quality HDMIl 2.1 standard cables that not over 3Meters (We do not include HDMI cables).
· For 8K resolution, the length of the HDMl cables connecting the two
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1 x 8K HDMI AB Switch, 1 x DC 5V Power cable, 1 x User manual.

Questions about this item

What resolution and refresh rate does the HDMI 2.1 interface cap at with its 48Gbps bandwidth?

The switch passes 7680x4320 at 60Hz and 4K at 120Hz or 144Hz, limited by the 48Gbps HDMI 2.1 link.

What are the physical dimensions and weight for mounting this bi-directional switch?

It measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces, so it fits on a shelf or behind a display with minimal space.

How do I power and connect the switch for manual source selection?

Plug the included DC 5V charger, connect sources and display to the three HDMI ports, then press the button to switch — allow 3-6 seconds for the signal to lock.
