LUOM OZ8AB 8K Bi-Directional HDMI 2.1 Switch 2x1/1x2 48Gbps Black
A bi-directional HDMI 2.1 switch that toggles two sources on one display or one source between two displays at 8K 60 Hz and 4K 120 Hz with 48 Gbps bandwidth
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2-Port UHD
- Specifications· Product Type: 8K Bi-Directional HDMI Switcher Splitter · I
- Input Connector2 x HDMI

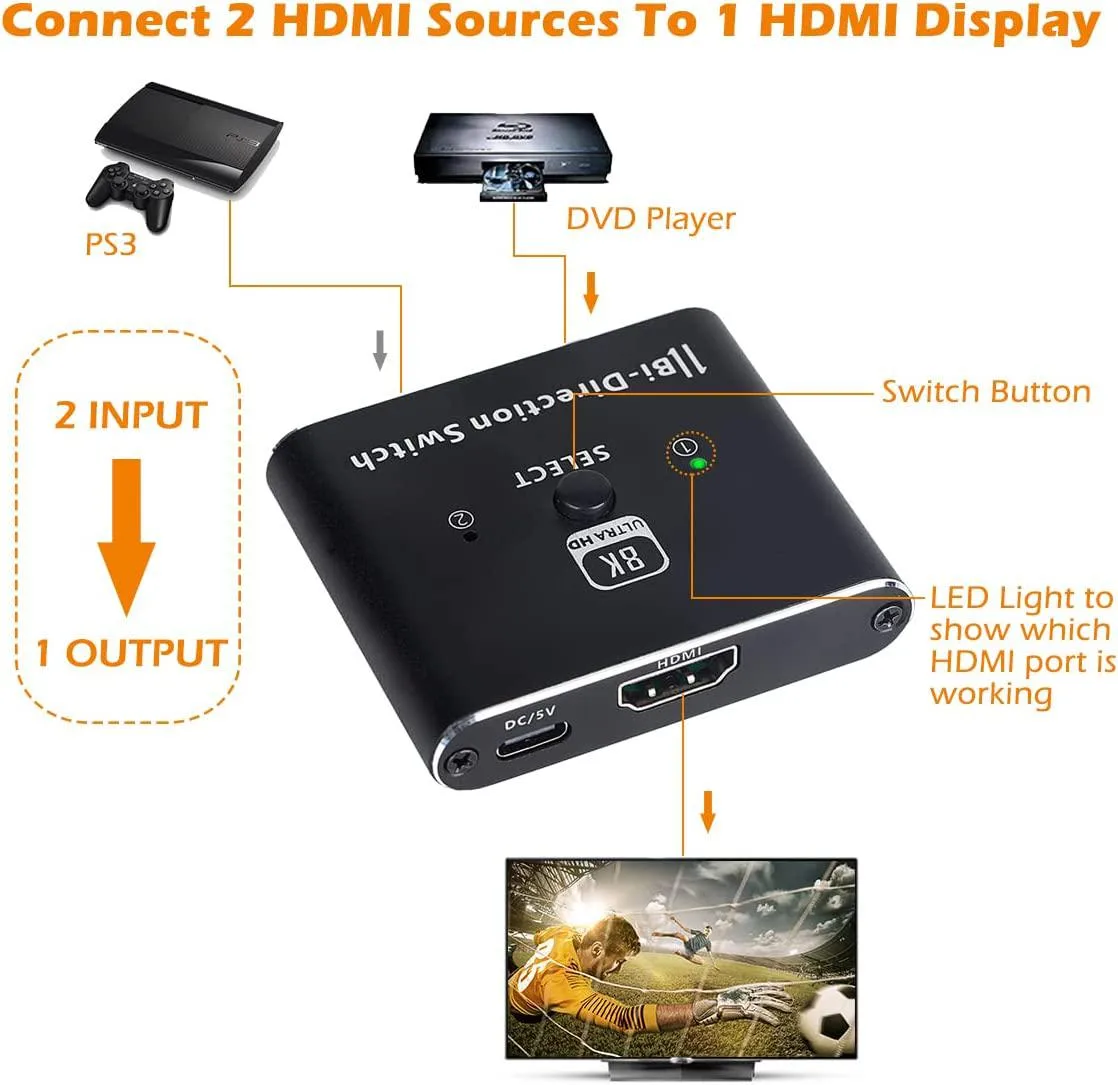

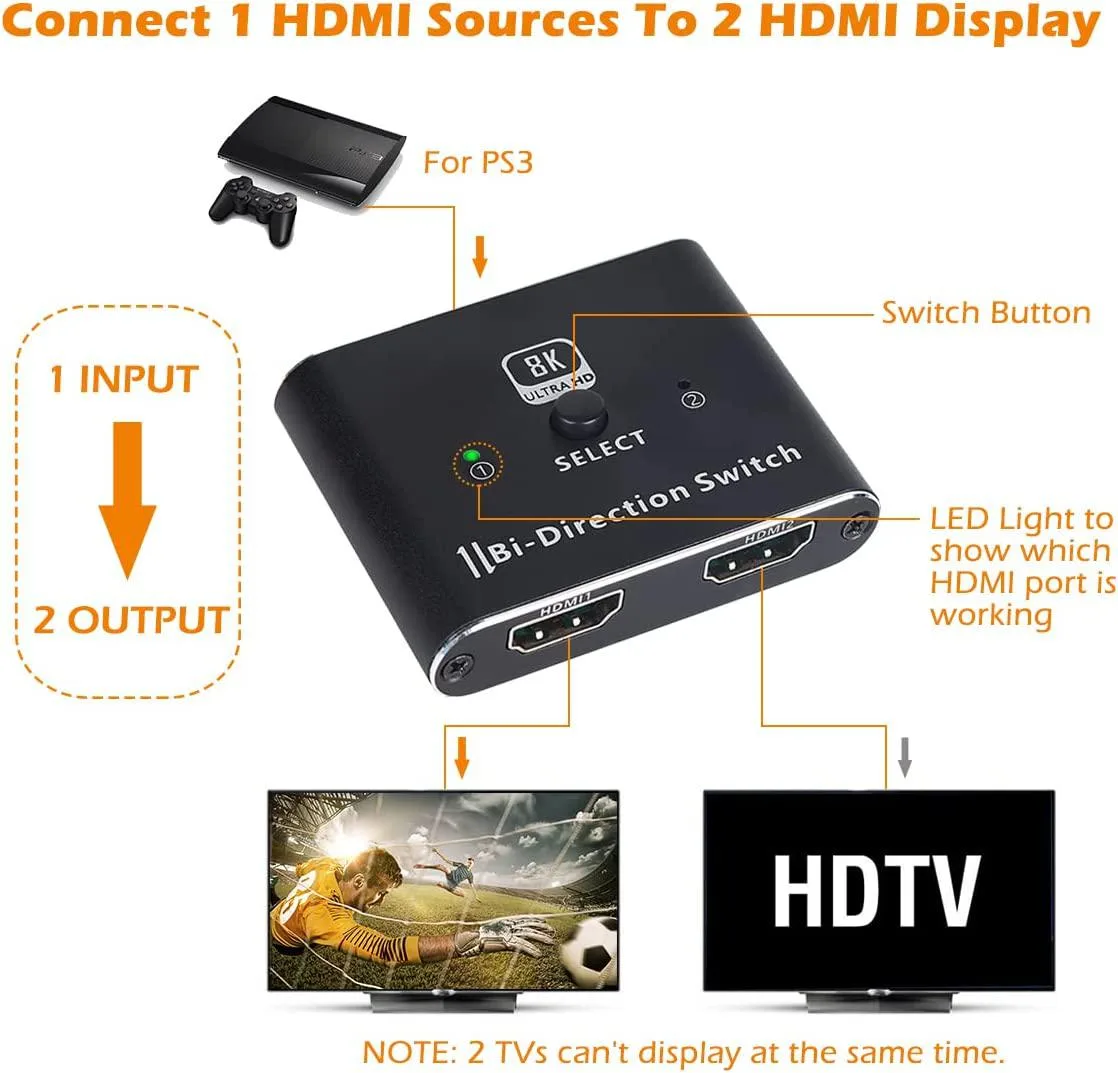

- Switch two sources to one display or one source between two displays with bi-directional HDMI 2.1
- 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz or 144Hz
- Dynamic HDR, VRR and full chroma sampling reveal detail in every frame
- Manual push-button switching avoids wear from repeated cable changes
- Compact aluminium-alloy housing measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces
What this switch does
The LUOM OZ8AB is an 8K bi-directional HDMI 2.1 switch that handles two sources on one display or one source across two displays. It moves up to 48Gbps of bandwidth and supports resolutions up to 7680x4320 at 60Hz.
Gamers and dual-display users
Console players who need 4K at 120Hz or 144Hz on a single screen will benefit from the manual push-button selection. Buyers who want both outputs active at the same time should look elsewhere because the two displays cannot operate simultaneously.
The bandwidth limit that decides fit
The 48Gbps ceiling carries 8K at 60Hz, 4K at 120Hz or 144Hz, and 1080P at 240Hz. If your installation needs higher throughput or automatic switching, this unit will not meet the requirement.
Highlights
- Switch two sources to one display or one source between two displays with bi-directional HDMI 2.1
- 48Gbps bandwidth carries 8K at 60Hz and 4K at 120Hz or 144Hz
- Dynamic HDR, VRR and full chroma sampling reveal detail in every frame
- Manual push-button switching avoids wear from repeated cable changes
- Compact aluminium-alloy housing measures 5.91 x 2.36 x .79 inches and weighs 11.9 ounces
Specifications
| Brand | LUOM |
|---|---|
| Series | OZ8AB |
| Model | OZ8AB |
| Part Number | OZ8AB |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2-Port UHD |
| Specifications | · Product Type: 8K Bi-Directional HDMI Switcher Splitter · Interface Type: 2 HDMI In/Out, 1 HDMI Out/In · Please use the supplied DC 5V charger to power the device. · Portable and compact design takes very little space setting it up, easy to carry and use. |
| Input Connector | 2 x HDMI |
| Output Connector | 1 x HDMI |
| Maximum Resolutions | 7680x4320 |
| Bandwidth | 48Gbps |
| Features | · This is a 2 in 1 out switcher, and 1 in 2 Out a HDMI Splitter (2 Output CANNOT display simultaneously). · Does not support automatic switching, only supports manual switching. For some high-power devices, it may take 3-6 seconds to manually switch the signal source. · It can well work with xbox or PS5 to achieve 4K@120hz in your tvs or relatively monitors. · If you need to output 8K@60Hz and 4K@120Hz, we recommend using high-quality HDMIl 2.1 standard cables that not over 3Meters (We do not include HDMI cables). · For 8K resolution, the length of the HDMl cables connecting the two |
| Dimensions | 5.91 x 2.36 x 0.79 inches |
| Weight | 11.9 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x 8K HDMI AB Switch, 1 x DC 5V Power cable, 1 x User manual. |
Questions about this item
How do I install the LUOM OZ8AB and what step do people often miss?
Connect up to two HDMI sources to the two input ports or one source to the single input, then attach the supplied DC 5V power cable before pressing the manual button to select the active signal path.
What maintenance or replacement will the LUOM OZ8AB need over time?
The unit has no user-serviceable parts; keep ventilation clear around the aluminum alloy case and replace the DC 5V power cable only if it becomes damaged.
What limit appears first during extended 8K@60Hz or 4K@120Hz sessions?
Signal integrity depends on cable quality; the manufacturer recommends certified Ultra High Speed HDMI cables no longer than 3 metres to sustain 48Gbps bandwidth without dropouts.
