Small black aluminium box with SDI and HDMI ports

LUOM

LUOM Micro Converter SDI to HDMI 3G with Power Supply

SKU CH-689J-VDQQP

Converts SDI video to HDMI up to 1080p/60Hz with a loop-through SDI output and includes a 5V power supply

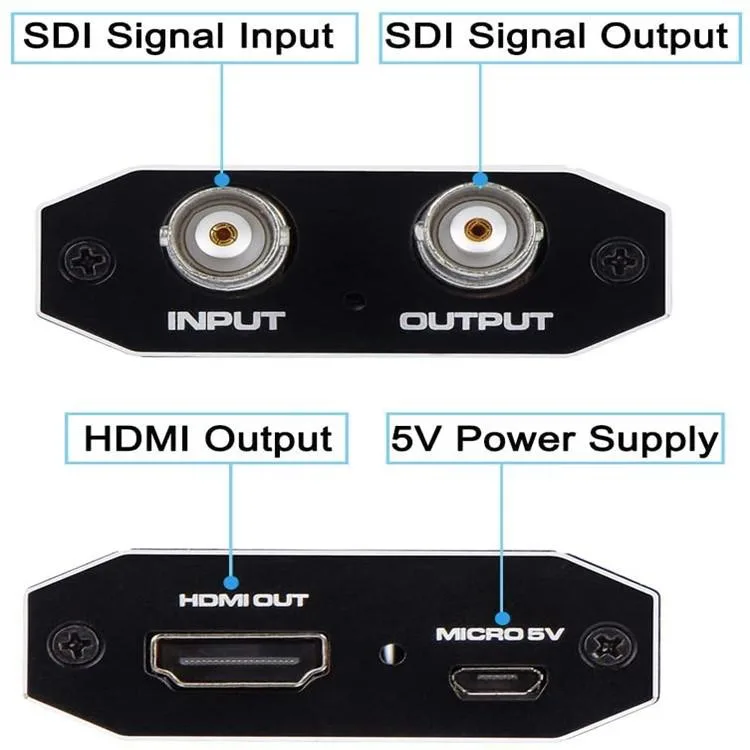

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SDI to HDMI for standard display compatibility
  • SDI loop-through output keeps original signal on second monitor
  • Supports SD-SDI, HD-SDI and 3G-SDI formats up to 2.970 Gbps
  • Aluminium alloy housing at 90x55x20mm for compact installation
  • Includes 5V DC power adapter and USB cable for immediate use

Compact 3G-SDI to HDMI Converter

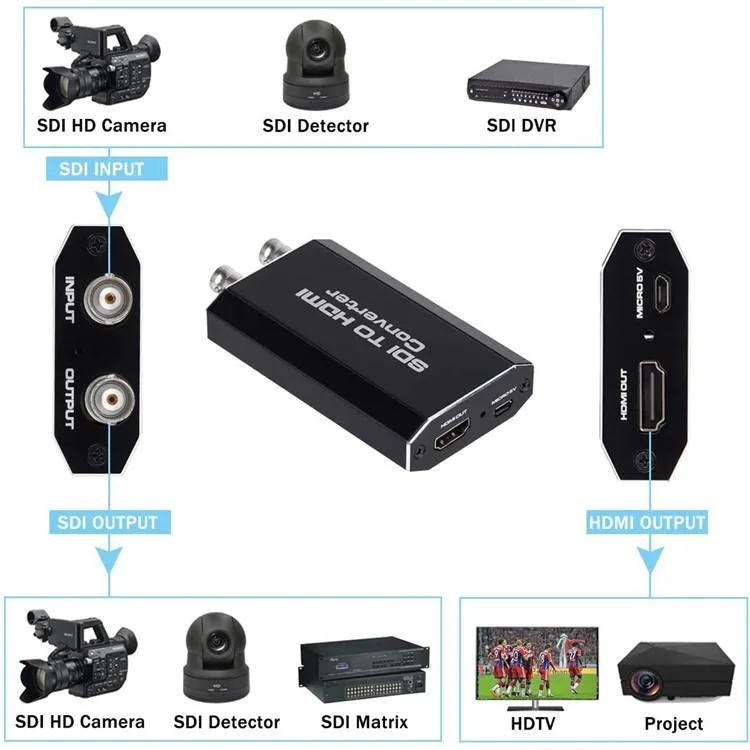

The LUOM Micro Converter transforms SD-SDI, HD-SDI and 3G-SDI signals into an HDMI output while preserving the original feed through an SDI loop-out. It accepts resolutions up to 1080p at 60 Hz and ships with a 5 V DC power supply and USB charge cable in a black aluminium enclosure measuring 90 x 55 x 20 mm.

Ideal for broadcast monitoring, not for 4K workflows

Camera operators and studio technicians who need to view SDI sources on consumer HDMI displays will benefit from the simultaneous loop-through. The unit does not support higher bit-rate formats or resolutions beyond 1080p, so installations requiring greater bandwidth must select alternative equipment.

Maximum 2.970 Gbps bit-rate

The converter handles SDI signals up to 2.970 Gbps, which corresponds to 3G-SDI at 1080p/60 Hz. This single limit determines whether a given camera or recorder can be connected without signal degradation.

Highlights

  • Converts SDI to HDMI for standard display compatibility
  • SDI loop-through output keeps original signal on second monitor
  • Supports SD-SDI, HD-SDI and 3G-SDI formats up to 2.970 Gbps
  • Aluminium alloy housing at 90x55x20mm for compact installation
  • Includes 5V DC power adapter and USB cable for immediate use

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

What SDI signal types must my source already output for this converter to work?

The converter accepts SD-SDI, HD-SDI and 3G-SDI signals up to 2.970 Gbps, so your camera or switcher must send one of those standards.

Can I keep my existing SDI monitor connected while also feeding an HDMI display?

Yes — the built-in SDI loop-out passes the original signal through unchanged, letting an SDI monitor and an HDMI screen run simultaneously.

How do I confirm the unit is converting correctly after hooking it up?

Power the converter with the included 5 V/1 A adapter, connect an SDI source and an HDMI display; a stable 1080p/60 Hz picture on the HDMI screen means it is working.
