Small black box with HDMI ports and optical plus RCA audio outputs

LUOM

LUOM HY-5001 4K HDMI Audio Extractor Optical SPDIF RCA L/R

SKU CH-EJ7Z-F5NW1

Extracts audio from an HDMI source to optical SPDIF and RCA stereo outputs while passing 4K video through to a display

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports2
  • AudioYes
  • ColorBlack
  • Cable Length5 in.
  • Extracts audio to optical SPDIF or RCA L/R for amplifiers
  • Passes 4K video at 30 Hz through HDMI output
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 formats
  • Three audio modes: PASS, 2.0CH and 5.1CH selectable
  • Works with Blu-ray, consoles, streaming sticks and PCs

LUOM HY-5001 Audio Extractor

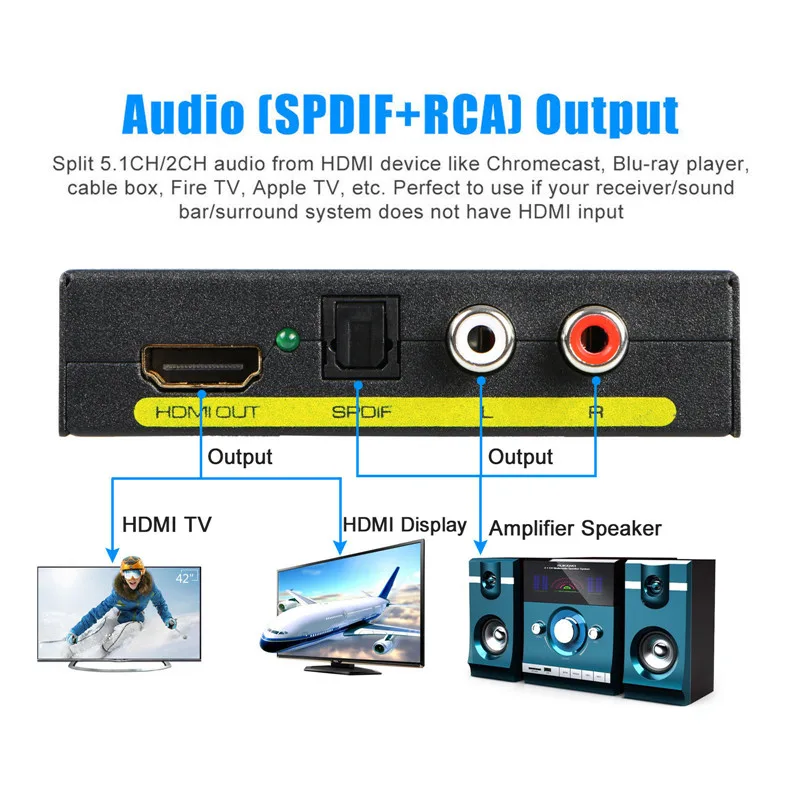

This LUOM HY-5001 unit extracts audio from an HDMI source and sends it to separate optical SPDIF and RCA stereo outputs while passing the original video signal through to an HDMI display. It supports resolutions up to 4K at 30 Hz with HDMI 1.4b and HDCP 1.4 compliance. A 5 V power adapter is included for operation.

Suits systems needing separate audio paths

The extractor suits installations where a source device must feed a display and an external audio system simultaneously. It offers three audio modes: PASS, 2.0CH and 5.1CH for compatibility with different soundtracks. It does not support ARC, so televisions that only return audio via ARC cannot be used as the source.

Maximum video resolution 1920 x 1080

The specification table lists a maximum resolution of 1920 x 1080, while the manufacturer highlights mention 4K at 30 Hz. Verify which figure matches your source and display before purchase. The device handles DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD audio formats.

Highlights

  • Extracts audio to optical SPDIF or RCA L/R for amplifiers
  • Passes 4K video at 30 Hz through HDMI output
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 formats
  • Three audio modes: PASS, 2.0CH and 5.1CH selectable
  • Works with Blu-ray, consoles, streaming sticks and PCs

Specifications

BrandLUOM
ModelHY-5001
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports2
AudioYes
ColorBlack
Cable Length5 in.
Input Connector1x HDMI female
Output Connector4x Toslink
Connector StyleStandard
Maximum Resolutions1920 x 1080
Package Contents1x 4K HDMI Audio Extractor Converter
1x 5V Power Adapter
1x User Manual

Questions about this item

How do I install the LUOM HY-5001 and which step is often missed?

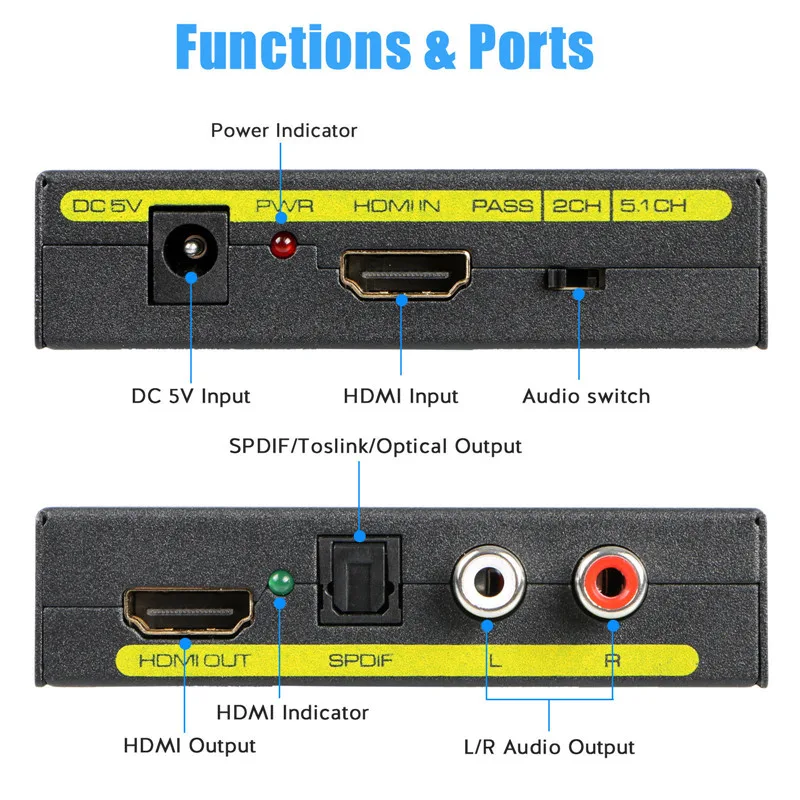

Connect the HDMI source to the input, the display to the HDMI output, and audio to optical or RCA. The step often missed is plugging in the included 5V/1A DC power adaptor; the unit will not pass audio without it.

What maintenance or replacement will the LUOM HY-5001 need later?

No user-serviceable parts are inside. Long-term care is limited to keeping the 5V power adaptor and cables firmly seated; if the external power supply fails, replace it with an equivalent 5V/1A unit.

What limit appears first during sustained use of the LUOM HY-5001?

The HDMI 1.4b link caps video at 1080p or 4K@30Hz with 36-bit deep colour, so extended sessions cannot exceed that bandwidth or resolution ceiling.
