Small black HDMI audio extractor box with ports and short cable

LUOM

LUOM HY-5001 4K HDMI Audio Extractor 5.1ch 2.0ch

SKU CH-YG94-15BXA

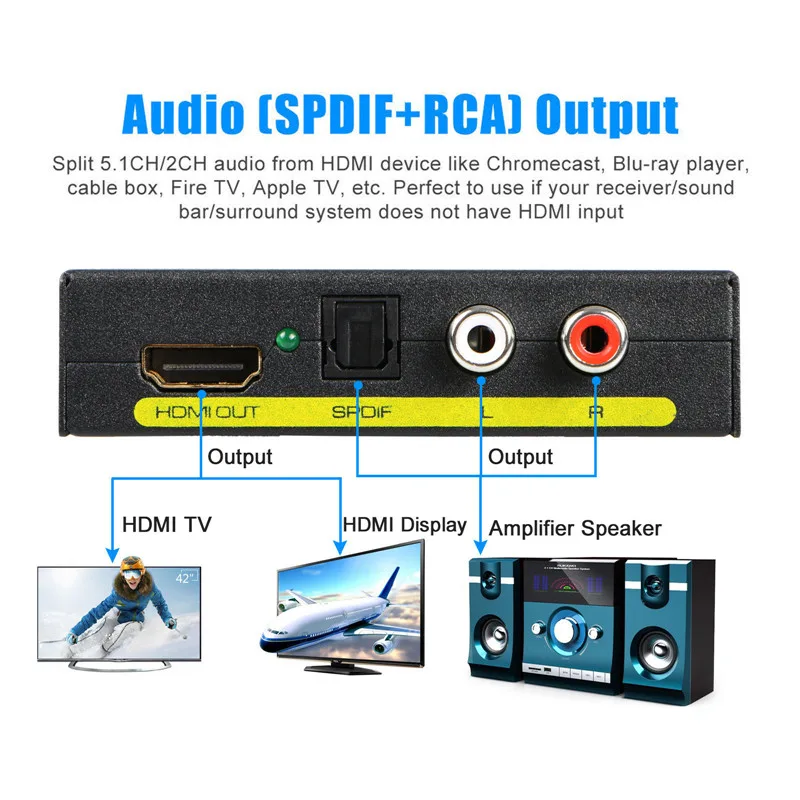

Extracts audio from an HDMI source to optical SPDIF and RCA stereo outputs while passing 1080p video through to a display

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports2
  • AudioYes
  • ColorBlack
  • Cable Length5 in.
  • Extracts HDMI audio to optical or RCA outputs for soundbars or amplifiers
  • Passes 4K video at 30 Hz with 36-bit deep colour to the display
  • Three selectable audio modes — Pass, 2.0 CH or 5.1 CH — match your speaker setup
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD formats
  • Works with Blu-ray, consoles, streaming sticks, PCs and other HDMI sources

Purpose and Audience

The LUOM HY-5001 extracts audio from an HDMI source and sends it to optical SPDIF or RCA stereo outputs while passing the video through to a display. It suits owners of soundbars, AV receivers or powered speakers that lack HDMI inputs but need multichannel or stereo sound from a Blu-ray player, game console or streaming stick.

Upgrade Path

The unit replaces a direct HDMI connection when the display cannot forward audio to an external sound system or when the source device has no separate audio output. The jump is worth it if you need 5.1-channel surround via optical or 2.0-channel analogue without buying a new amplifier with HDMI switching.

Capacity and Headroom

Video passes through at up to 1080 resolution with 36-bit deep colour and 3D support, while audio handles LPCM 7.1, DTS-HD and Dolby TrueHD formats. Three selectable modes — PASS, 2.0CH and 5.1CH — cover most legacy and current soundtracks. The extractor does not support ARC, so TV-internal apps cannot send audio back through the same cable.

Highlights

  • Extracts HDMI audio to optical or RCA outputs for soundbars or amplifiers
  • Passes 4K video at 30 Hz with 36-bit deep colour to the display
  • Three selectable audio modes — Pass, 2.0 CH or 5.1 CH — match your speaker setup
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3 and DSD formats
  • Works with Blu-ray, consoles, streaming sticks, PCs and other HDMI sources

Specifications

BrandLUOM
ModelHY-5001
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports2
AudioYes
ColorBlack
Cable Length5 in.
Input Connector1x HDMI female
Output Connector4x Toslink
Connector StyleStandard
Maximum Resolutions1920 x 1080
Package Contents1x 4K HDMI Audio Extractor Converter
1x 5V Power Adapter
1x User Manual

Questions about this item

What size HDMI plug does the extractor accept and how long is the attached cable?

The unit has a standard HDMI female input and ships with a 5 in. integrated cable.

Which audio mode should I select for a soundbar that only handles stereo?

Set the switch to 2.0CH; PASS passes the source format unchanged and 5.1CH is for multichannel systems.

Will the optical or RCA outputs degrade over time and need replacement?

The extractor has no moving parts; only the external 5 V power adapter may eventually require replacement.
