Small black box with HDMI input, HDMI output, optical and RCA audio ports, short cable attached

LUOM

LUOM HY-5001 4K HDMI Audio Extractor 2.0/5.1ch

SKU CH-WNT3-QFGWP

Extracts audio from an HDMI source to optical, RCA and HDMI outputs with 2.0 or 5.1 channel modes up to 1080p resolution

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports2
  • AudioYes
  • ColorBlack
  • Cable Length5 in.

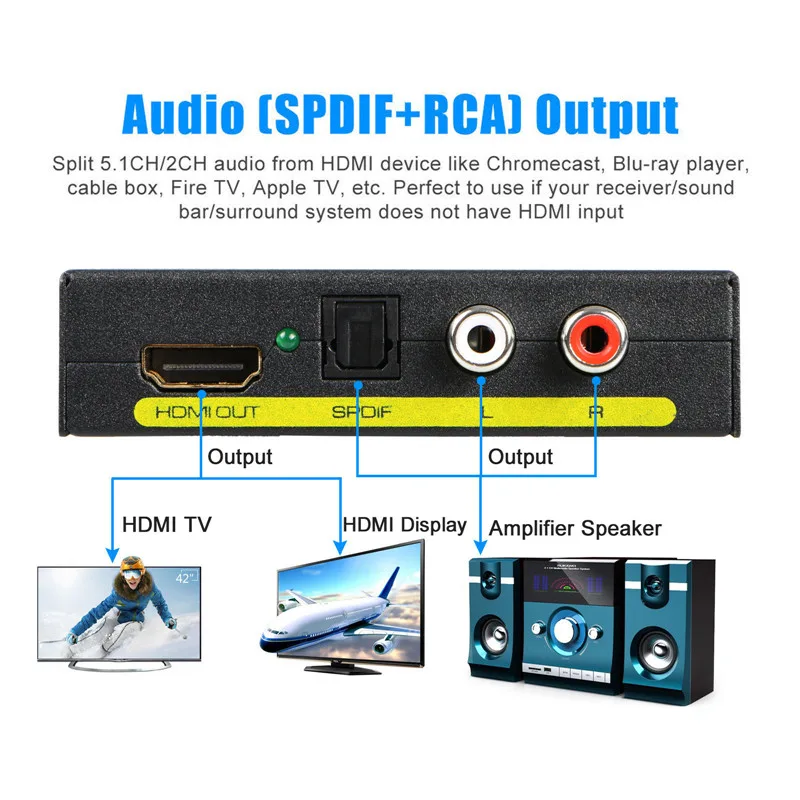

  • Extracts audio via optical SPDIF and RCA stereo
  • Pass-through video up to 1080p at 30 Hz with 36-bit colour
  • Three audio modes: PASS, 2.0CH and 5.1CH
  • Powered by included 5 V adapter for stable operation
  • Compatible with Blu-ray, consoles, streaming sticks and PCs

4K HDMI Audio Extraction

The LUOM HY-5001 separates embedded digital audio from an HDMI source and delivers it through optical Toslink SPDIF or RCA stereo outputs while passing the original video signal to a connected display. It suits installers who need to route sound from a Blu-ray player, games console or streaming device to an external amplifier or soundbar without losing the picture feed. The unit includes a 5 V power adapter and requires no software configuration.

HDMI 1.4 Bandwidth Limits

Video throughput is capped at the HDMI 1.4 specification, so 4K resolution is supported only at 30 Hz with 36‑bit deep colour; higher refresh rates or newer HDR formats cannot be transmitted. The extractor does not support ARC, so a television’s internal apps cannot send audio back through the same cable. HDCP 1.4 compliance allows protected content from typical source devices to pass through without handshake errors.

Multi-Channel Audio Headroom

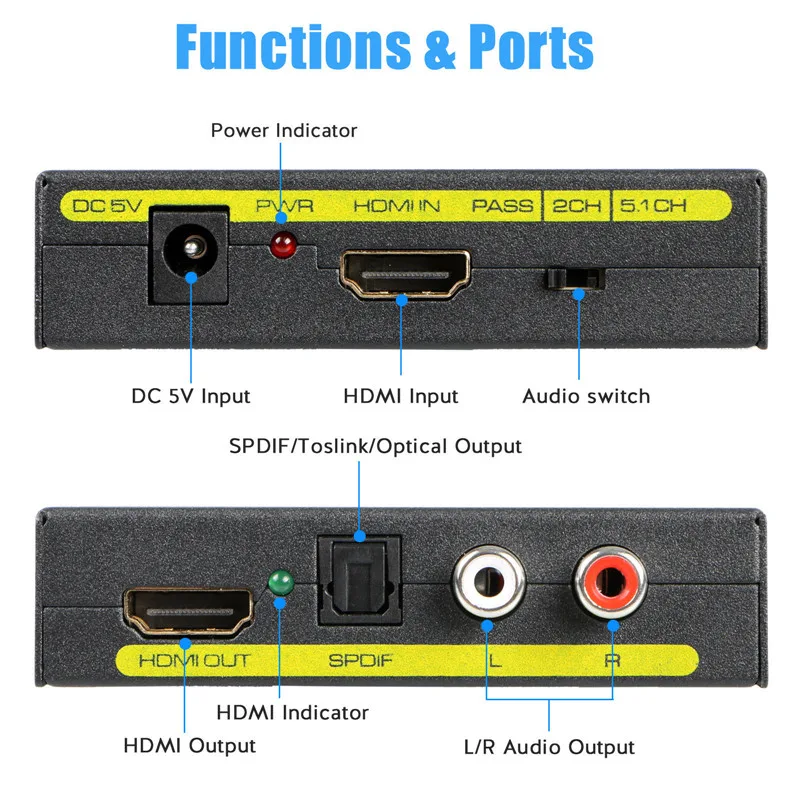

Three selectable modes — PASS, 2.0 CH and 5.1 CH — let the installer match the output to the connected sound system, while the internal decoder handles DTS-HD, Dolby TrueHD and LPCM 7.1 bitstreams down to the available optical or analogue ports. When a source delivers more than 5.1 channels the extractor will downmix, so setups requiring discrete 7.1 analogue outputs or object-based formats such as Dolby Atmos are not served by this device.

Highlights

  • Extracts audio via optical SPDIF and RCA stereo
  • Pass-through video up to 1080p at 30 Hz with 36-bit colour
  • Three audio modes: PASS, 2.0CH and 5.1CH
  • Powered by included 5 V adapter for stable operation
  • Compatible with Blu-ray, consoles, streaming sticks and PCs

Specifications

BrandLUOM
ModelHY-5001
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports2
AudioYes
ColorBlack
Cable Length5 in.
Input Connector1x HDMI female
Output Connector4x Toslink
Connector StyleStandard
Maximum Resolutions1920 x 1080
Package Contents1x 4K HDMI Audio Extractor Converter
1x 5V Power Adapter
1x User Manual

Questions about this item

Should I choose the 2.0CH or 5.1CH audio mode for my soundbar?

Select 2.0CH for stereo soundbars or 5.1CH for surround systems; PASS mode forwards the source format unchanged.

What does the 4K 30 Hz rating mean for my 4K TV?

The extractor passes video up to 4K at 30 Hz with HDMI 1.4b and HDCP 1.4; higher refresh rates are not supported.

Does the optical Toslink output carry 7.1 LPCM or only 5.1?

Optical SPDIF carries up to 5.1CH encoded audio; 7.1 LPCM requires the HDMI output path to a compatible receiver.
