Black rectangular HDMI splitter box with one input and four output ports

LUOM

LUOM HDMI698352 1x4 HDMI Splitter Display Duplicate Mirror 1080P 4K@30Hz Black

SKU CH-3HV2-DHD8Q

A powered 1×4 HDMI splitter duplicates one source to four displays at up to 3840×2160 30Hz with multi-format audio passthrough

  • TypeHDMI Splitters
  • Changer TypeHDMI splitter
  • Ports4
  • ColorBlack
  • Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM
  • Input Connector1x HDMI female

Ports 4

  • 2
  • 4
  • Splits one source to four identical displays without quality loss
  • Supports 4K at 30 Hz and 1080p at 60 Hz for broad compatibility
  • Carries LPCM, Dolby-AC3, DTS 7.1 and high-definition audio formats
  • Transmits up to 100 ft total using standard AWG26 cables
  • Accepts PAL, NTSC and SECAM input formats for global use

Signal Distribution

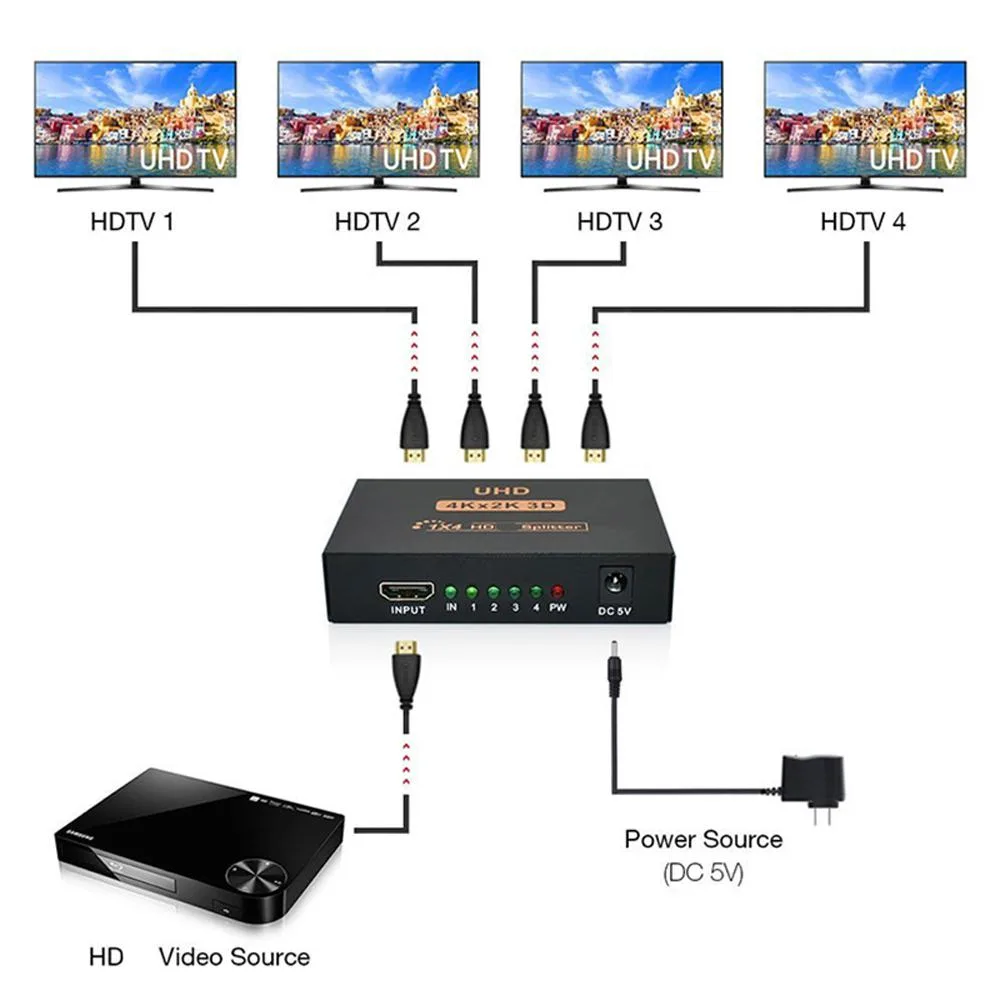

This LUOM HDMI698352 splitter takes one HDMI source and duplicates it across four identical outputs. It handles video formats up to 3840 x 2160 at 30 Hz and passes audio formats including LPCM, Dolby-AC3, DTS7.1 and DSD. The unit ships with a 5 V power adapter and a USB cable for flexible power options.

Installer Fit

Installers running a single media player to multiple displays in retail, education or conference spaces will find the 1-to-4 layout matches their topology. Users who need to switch between several sources, convert signal types or drive 4K at 60 Hz should look at a matrix switch or a higher-bandwidth distributor instead.

Bandwidth Limit

The chipset is rated for 225 MHz bandwidth and HDMI 1.4b signalling, which caps the maximum timing at 4K 30 Hz. If the installation requires 4K 60 Hz or HDR metadata pass-through this splitter cannot meet that requirement.

Highlights

  • Splits one source to four identical displays without quality loss
  • Supports 4K at 30 Hz and 1080p at 60 Hz for broad compatibility
  • Carries LPCM, Dolby-AC3, DTS 7.1 and high-definition audio formats
  • Transmits up to 100 ft total using standard AWG26 cables
  • Accepts PAL, NTSC and SECAM input formats for global use

Specifications

BrandLUOM
SeriesHDMI698352
ModelHDMI698352
Part NumberHDMI698352
TypeHDMI Splitters
Changer TypeHDMI splitter
Ports4
ColorBlack
Specifications1.Multi-format input, Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input
2.Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio.
3.One Input ports: Supports with computer, XBox 360, XBox one, PS3, PS4 Pro, Fire Stick, Blu-Ray DVD player,
Satellite Receiver, Route Roku, Chromecast, PC, Projectors etc.
4.4 Output ports: Supports with HD-Ready, Full HsD TVs, monitors etc
5.Output Video: HDMI+HDCP1.0/1.1/1.2/1.2a/1.3/1.4
6.Input Video Signal: 0.5 ~ 1.0 volts p-p ;Input DDC Signal: 5 volts p-p
Input Connector1x HDMI female
Output Connector4x HDMI female
Maximum Resolutions3840 x 2160
Features1x4 Hdmi Splitter: This Hdmi splitter 1 input 4 output duplicate 1 HDMI input signal to 4 identical HDMI output signals, transmit video and audio simultaneously without any quality loss. NOT hdmi switch 4 input 1 output, can't switch 4 signal source on one display.
High Compability: 4 way Hdmi Splitter supports full HD 1080P and 3D resolutions, it can reach up to 4K@30Hz, deep color 408i/576i/576p/720p/1080i/1080P, worked perfectly with computer, laptop, PS3 game, Blu-ray DVD, tablet pc, projectors, full HD TVs, etc. Please make sure the resolution of both output devices is the same
Dimensions3.15 x 1.18 x 2.36 inches
Weight7.8 ounces
Package Contents4 output ports hdmi splitter box X1
5V/2A AC adapter X1
User manual X1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the LUOM HDMI698352 is working correctly after connecting four displays?

All four connected screens should show an identical image from the single source at the same resolution, with audio playing through each display. The unit supports up to 4K at 30 Hz and 1080p at 60 Hz, so verify the source outputs a compatible format such as 1080p or 4K 30 Hz.

What comes in the box and which cables must I provide?

The package includes the 1×4 splitter, a 5 V 2 A AC adapter, and a user manual. You must supply one HDMI cable for the input and up to four HDMI cables for the outputs; the supplier notes transmission up to 100 ft total using AWG26 cables.

Which video formats and resolutions does this model actually support?

It handles 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, and 4K at 30 Hz, plus 3D and Deep Color. It does not support 4K at 60 Hz. The HDMI 1.4b bandwidth is 225 MHz, and EDID negotiation takes about 4 seconds.
