Small black metal box with HDMI input and two BNC outputs, plus power socket

LUOM

LUOM HDMI to Dual AHD Converter Adapter with AHD Loopout 500M Repeater

SKU CH-HZ7T-6YT74

Converts HDMI signals to dual AHD outputs at 720p or 1080p 30 Hz with a 500 m loop-out repeater for CCTV systems

  • TypeHDMI to AHD Converter
  • Connector A1 x HDMI input
  • Connector B2 x AHD output
  • Package Contents1x HDMI to AHD Converter 1x 5V/1A Power Adapter and Cable 1x
  • HDMI input accepts 480i up to 1080p60 for flexible source compatibility
  • AHD output delivers 720p or 1080p at 30Hz for clear recording
  • Loop-out repeater extends AHD signal up to 500M without quality loss
  • Built-in ESD protection safeguards circuitry against static discharge damage
  • Includes 5V power adapter and manual for immediate installation readiness

HDMI to Dual AHD Converter with 500M Loopout

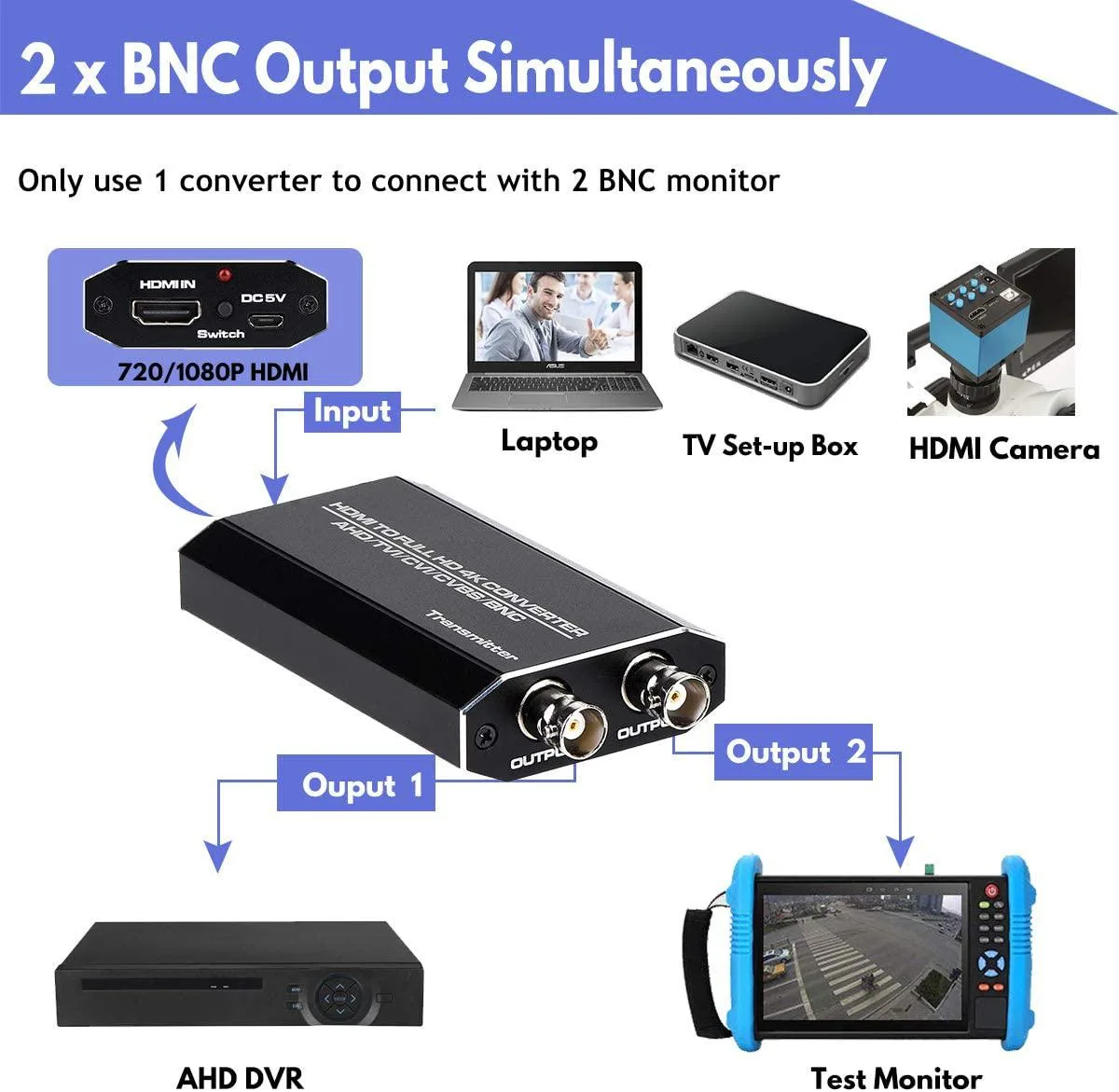

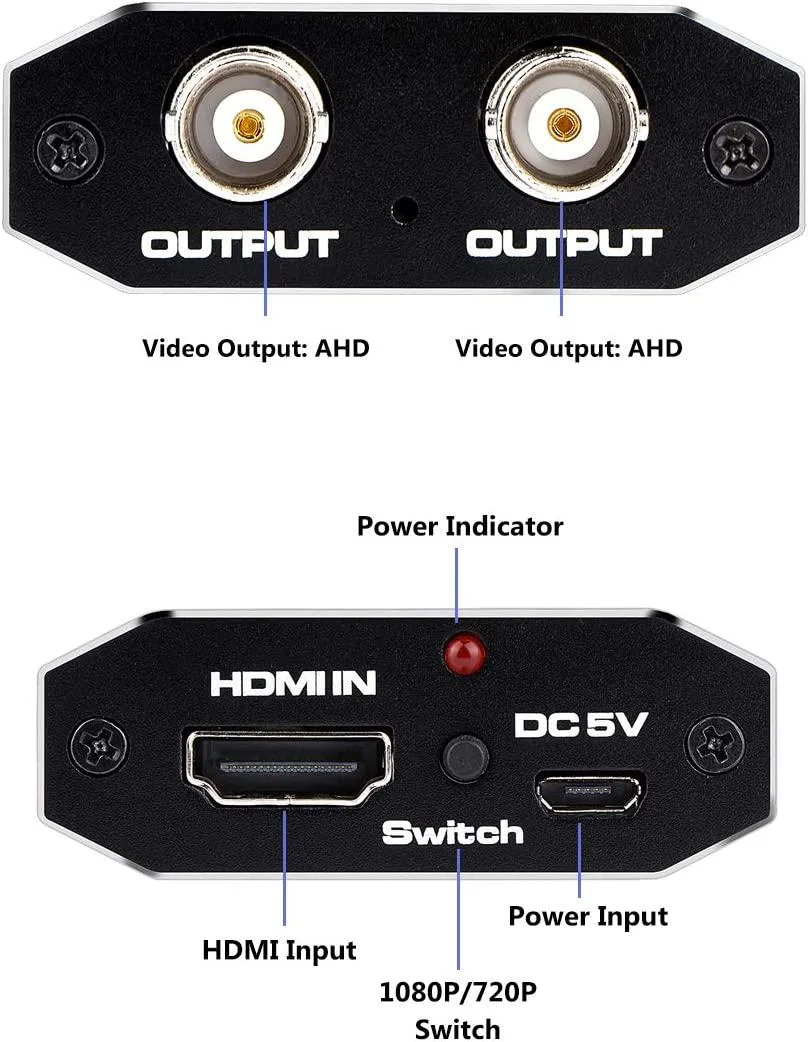

This LUOM adapter converts an HDMI source into two simultaneous AHD outputs for CCTV recorders or monitors. It accepts SD 480i, 576i, HD 720p and 1080i at 50 or 60 Hz, plus 3G 1080p up to 60 Hz, and delivers 720p or 1080p at 30 Hz on each BNC connector. A front-panel button selects the output resolution.

Check HDMI source resolution

Your source must output one of the listed HDMI formats: 480i, 576i, 720p50/60, 1080i50/60 or 1080p25/30/50/60. The converter requires the included 5 V 1 A power supply; no bus power option exists. Ensure your DVR or NVR accepts AHD at 720p or 1080p 30 Hz and that BNC cabling reaches the recorder or the 500 m loopout point.

Replaces separate HDMI-to-AHD boxes

Installers who previously used a standalone converter plus a coaxial repeater can consolidate to this single unit with built-in 500 m loopout. The jump is worth it when you need two identical AHD feeds from one HDMI camera or playback device and want to avoid daisy-chaining extra hardware.

Highlights

  • HDMI input accepts 480i up to 1080p60 for flexible source compatibility
  • AHD output delivers 720p or 1080p at 30Hz for clear recording
  • Loop-out repeater extends AHD signal up to 500M without quality loss
  • Built-in ESD protection safeguards circuitry against static discharge damage
  • Includes 5V power adapter and manual for immediate installation readiness

Specifications

TypeHDMI to AHD Converter
Connector A1 x HDMI input
Connector B2 x AHD output
Package Contents1x HDMI to AHD Converter
1x 5V/1A Power Adapter and Cable
1x 1x User Manual

Questions about this item

What comes in the box and is a separate power supply needed?

The package includes the converter, a 5V/1A power adapter with cable, and a user manual; the external power adapter is required for operation.

Should I choose 720p or 1080p output for my recorder?

The converter outputs 720P or 1080P at 30Hz, selectable by the front button; choose 1080P for maximum detail if your DVR or NVR supports it.

What does the 500M repeater figure mean for my cable run?

The AHD loop-out can extend the signal up to 500 metres over coaxial cable, allowing the converter to act as a mid-span repeater for long-distance CCTV installations.
