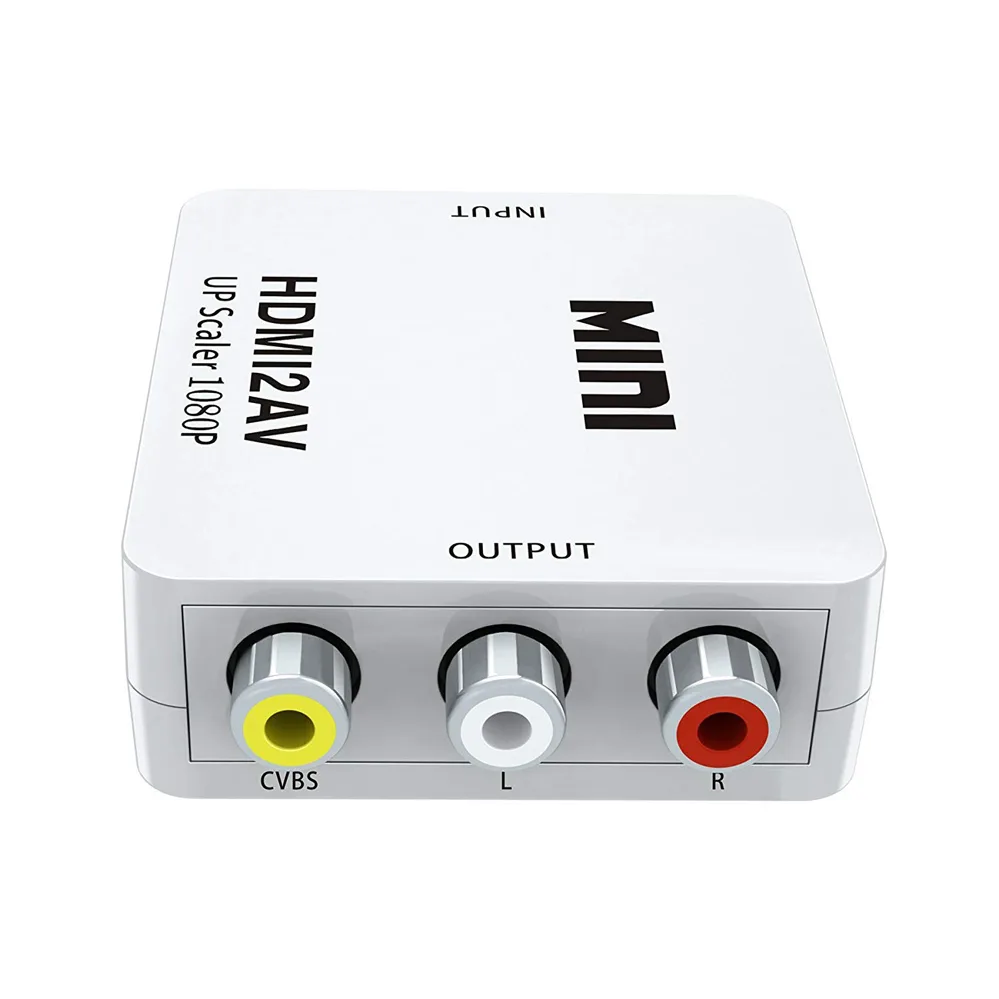

Small white box with HDMI input and three RCA outputs

LUOM

LUOM HDMI to 3RCA AV Converter 1080P White

SKU CH-A1V2-SWPSB

Converts HDMI signals to composite RCA video and stereo audio for legacy displays at 480i or 576i resolution

  • TypeHDMI Converters
  • Converts HDMI to composite AV for legacy displays
  • Outputs 480i and 576i standard-definition video
  • Supports both PAL and NTSC TV formats
  • Works driver-free with included USB power cable
  • Compact 67×55×20 mm design weighs 37 g

What this converter does

The LUOM HDMI to 3RCA AV Converter changes a digital HDMI signal into an analogue composite video signal with stereo audio. It lets you connect a source that only has an HDMI output to a display or recorder that only accepts RCA inputs. The unit supports both PAL and NTSC television standards.

What it replaces and when to use it

This adapter replaces a direct HDMI cable when the receiving device lacks an HDMI port. The upgrade is worth it when you need to send video from a modern laptop, set-top box or games console to an older TV, VHS recorder or DVD recorder that only has composite inputs. It does not work with streaming sticks such as Fire TV Stick, Roku or Chromecast, nor with mobile devices or Apple products.

Limits of the composite output

The converter downscales the incoming 1080P signal to standard-definition 480i or 576i resolution. Picture detail is therefore limited to the capabilities of the CVBS format. A USB power cable is included and must be connected to a 5 V supply for the unit to operate. The compact enclosure measures 67 mm deep, 55 mm wide and 20 mm high and weighs 37 g.

Highlights

  • Converts HDMI to composite AV for legacy displays
  • Outputs 480i and 576i standard-definition video
  • Supports both PAL and NTSC TV formats
  • Works driver-free with included USB power cable
  • Compact 67×55×20 mm design weighs 37 g

Specifications

TypeHDMI Converters

Questions about this item

How much space do the 67 mm depth, 55 mm width and 20 mm height require behind my TV?

The converter measures 67 mm deep, 55 mm wide and 20 mm high, so allow at least that much clearance behind the display for the unit and its cables.

Which cables must be connected before the converter will power up?

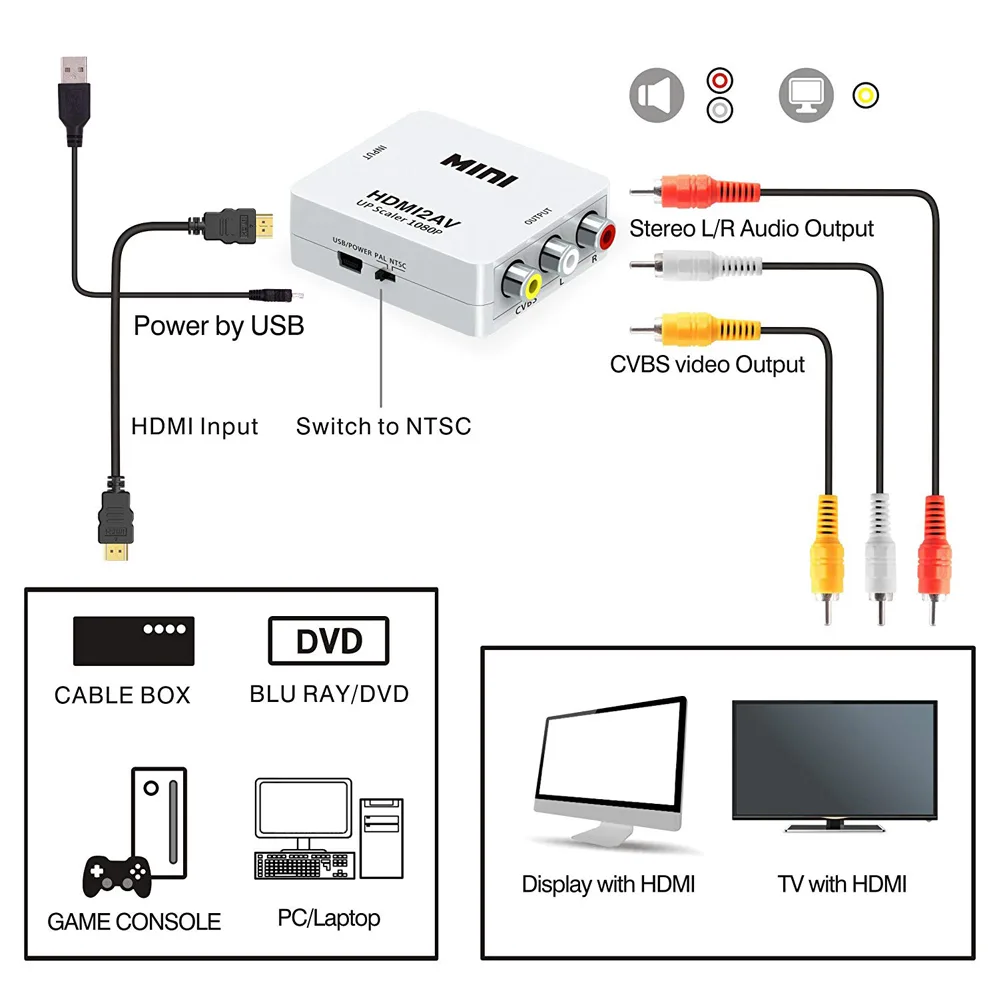

Plug the HDMI source into the single HDMI input, attach the three RCA leads (yellow, white, red) to the matching TV inputs, then connect the included USB power cable to a 5 V USB port or adapter; the unit will not operate without external power.

Will the composite output degrade over time and need replacement?

The passive RCA connectors and internal scaler have no moving parts or consumable components, so no periodic maintenance or scheduled replacement is required under normal use.
