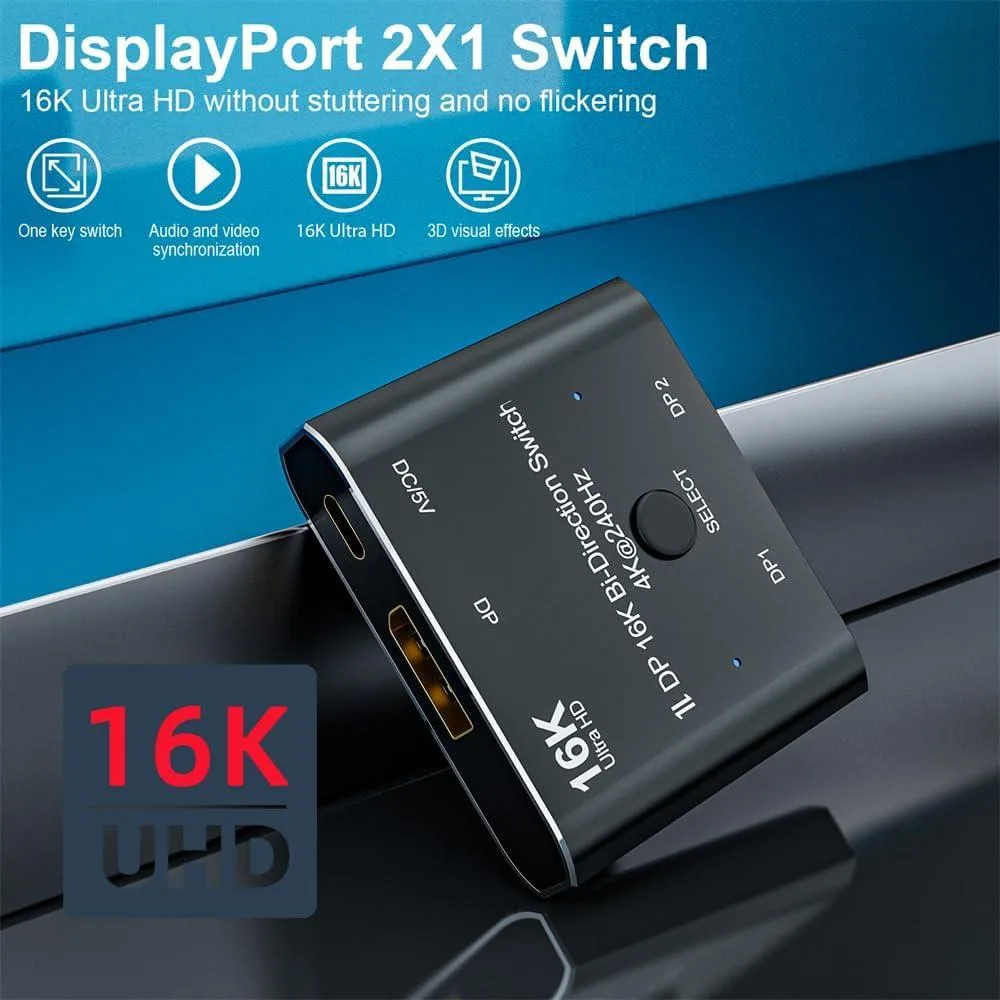

Black rectangular DisplayPort switch with LED indicator and select button

LUOM

LUOM A0201 Bidirectional DP 2.0 Switch 16K@60Hz 4K@240Hz video splitter

SKU CH-KTW7-AE3NH

A bidirectional DisplayPort switch supporting 16K at 60 Hz and 4K at 240 Hz with 40 Gbps bandwidth for toggling between two sources or two displays

  • TypeDisplayPort Splitters
  • Changer TypeDisplay Extenders
  • Ports2
  • AudioYes
  • ColorBlack
  • Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz reso
  • Bidirectional DP 2.0 switching lets you share one monitor between two sources or toggle one source across two displays
  • 40 Gbps bandwidth carries 16K at 60 Hz, 8K at 60 Hz and 4K at 240 Hz for ultra-high-resolution workflows
  • LED indicator shows the active port instantly so you always know which source or display is selected
  • Compact 5.31 × 3.11 × 0.87 inch enclosure fits neatly on any desk without crowding other gear
  • USB-powered operation requires only the included cable — no bulky external adapter to manage

LUOM A0201 Bidirectional DP 2.0 Switch

The LUOM A0201 is a DisplayPort 2.0 switch that routes 40 Gbps signals between sources and displays. It suits anyone who needs to share one 16K@60Hz or 4K@240Hz monitor between two computers or toggle a single PC between two screens.

USB-C power cable and manual included

A USB-C charging cable supplies the mandatory 5 V power; without it the switch passes no video. The manual explains the two wiring modes — two PCs to one monitor or one PC to two monitors — and reminds users that only one display is active at a time.

Press Select button to swap sources

Installation is plug-and-play once the power cable is connected, but total cable length must stay under two metres or the 40 Gbps link can drop out. The selector button on the unit switches the active path; there is no automatic sensing or simultaneous output.

Highlights

  • Bidirectional DP 2.0 switching lets you share one monitor between two sources or toggle one source across two displays
  • 40 Gbps bandwidth carries 16K at 60 Hz, 8K at 60 Hz and 4K at 240 Hz for ultra-high-resolution workflows
  • LED indicator shows the active port instantly so you always know which source or display is selected
  • Compact 5.31 × 3.11 × 0.87 inch enclosure fits neatly on any desk without crowding other gear
  • USB-powered operation requires only the included cable — no bulky external adapter to manage

Specifications

BrandLUOM
SeriesA0201
ModelA0201
Part NumberA0201
TypeDisplayPort Splitters
Changer TypeDisplay Extenders
Ports2
AudioYes
ColorBlack
Specifications1. 16K DP 2.0 Switch: Support 16K@60Hz,8K@60Hz,4K@240Hz resolution, provide you with transfer rates up to 40Gbps and backward compatible with all previous DP standards.
?
2: The DisplayPort switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays.
?
3. External power required, the DP selector box is easy to setup and operate. Note: While using, press "select"Button to switch signal between two sources or displays, the indicator lights show the working status, two displays CANNOT display simultaneously.
?
4. This di
Input Connector1x DisplayPort female
Output Connector2x DisplayPort female
Connector StyleFemale
Maximum ResolutionsSupport 16K@60Hz,8K@60Hz,4K@240Hz,4K@144Hz,1080P@240Hz resolution,
Bandwidth40Gbps
FeaturesBi-Direction ***DP Switch:The DisplayPort Switcher allow you to connect two DP source to one DP display or connect one DisplayPort source to toggle between two displays. (Two displays CANNOT display simultaneously,Press"Select"button to switch between two displays.)(While connecting to Source or Display,you must use the usb cable to power the splitter,or your display can not show anything).Do not use too long cable(total 2m) for connection between the switcher and your devices.
16K DP 1.4 Splitter: Support 8K@120Hz,4K@240Hz,1080P@240Hz resolution, provide you with transfer rates up t
Dimensions5.31 x 3.11 x 0.87 inches
Weight2.12 Ounces
Package Quantity1
Package Contents1x Bi-Direction DP Switch, Power Charging Cable x1, User Manual x1.

Questions about this item

Will the USB power cable or the DP 2.0 switch itself need replacing after heavy daily use?

The unit draws power from the included USB-A to USB-C cable; the solid-state switch has no moving parts, so only the cable would wear out over time.

What resolution or bandwidth ceiling hits first when I run 16K at 60 Hz all day?

The 40 Gbps DP 2.0 link caps at 16K 60 Hz; pushing higher refresh rates at that resolution would exceed the available bandwidth.

How warm does the 5.31 x 3.11 x 0.87 inch enclosure get and is there any fan noise during continuous operation?

The compact aluminium shell runs warm but stays silent because there is no fan; passive cooling handles the heat from the 40 Gbps transceiver.
