Black rectangular HDMI matrix switch, four inputs four outputs, front panel buttons, IR remote included

LUOM

LUOM 4x4 HDMI Matrix Switch 4K@30Hz 10.2Gbps Black

SKU CH-TBKJ-SJBX0

Routes four HDMI sources to four displays at 4K 30 Hz with IR remote and front-panel control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4x4 Matrix
  • MatrixYes
  • AudioYes
  • Routes any of four sources to four displays
  • 2 Gbps bandwidth carries 4K at 30 Hz
  • IR remote and front buttons give flexible control
  • No EDID management needed for quick setup
  • Compact 195 x 70 x 23 mm metal chassis

4x4 HDMI Matrix Switch

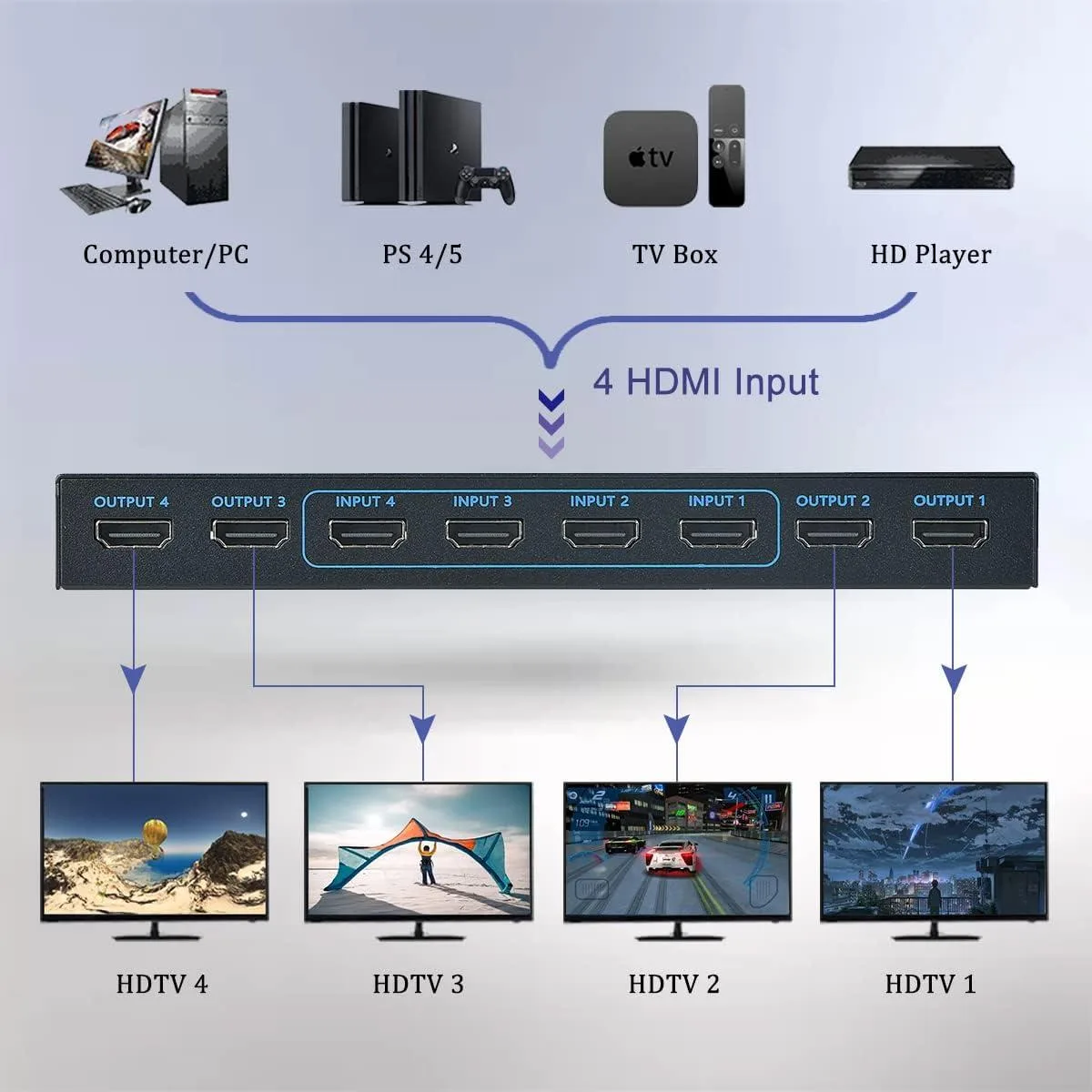

The LUOM 4x4 HDMI Matrix Switch routes four HDMI sources to four displays independently. It handles 4K at 30 Hz and 1080p at 60 Hz with 3D and YUV 4:2:0 support. Control is via front-panel buttons or the supplied IR remote. The unit is aimed at installers and AV enthusiasts who need flexible distribution in homes, retail spaces or presentation rooms.

4K@30Hz 10.2Gbps bandwidth

The switch passes video up to 4096 x 2160 at 30 Hz within a 10.2 Gbps, HDMI 1.4 limit. Deep colour at 8 or 10 bits is supported. Source and display cables must stay under 8 metres using AWG26 HDMI 1.4 cable. Switching takes three to five seconds and is not seamless, so rapid source changes will show a brief blanking interval.

Replaces basic splitters and switchers

A single 4x4 matrix replaces separate splitter and switcher boxes when every display must show any source. The jump is worth it for multi-zone installations that need independent routing without EDID management. It is not suited for applications requiring 4K at 60 Hz, HDR, HDMI 2.0 bandwidth or seamless switching.

Highlights

  • Routes any of four sources to four displays
  • 2 Gbps bandwidth carries 4K at 30 Hz
  • IR remote and front buttons give flexible control
  • No EDID management needed for quick setup
  • Compact 195 x 70 x 23 mm metal chassis

Specifications

TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4x4 Matrix
MatrixYes
AudioYes
Maximum Resolutions4096 x 2160

Questions about this item

Will the LUOM 4x4 matrix pass 1080p@60Hz from my older Blu-ray player to a 4K display?

Yes, the switch supports 1080p@60Hz alongside 4K@30Hz, so legacy 1080p sources display correctly on newer screens.

How can I confirm the matrix is routing each of the four inputs to the right output after installation?

Use the front-panel buttons or the supplied IR remote to select an input for each output; the corresponding LED indicators show the active routing.

Does the package include HDMI cables for the four inputs and four outputs, or must I buy them separately?

Only the matrix unit, an IR remote, and a 5 V/2 A power adapter are supplied; all eight HDMI cables must be purchased separately.
