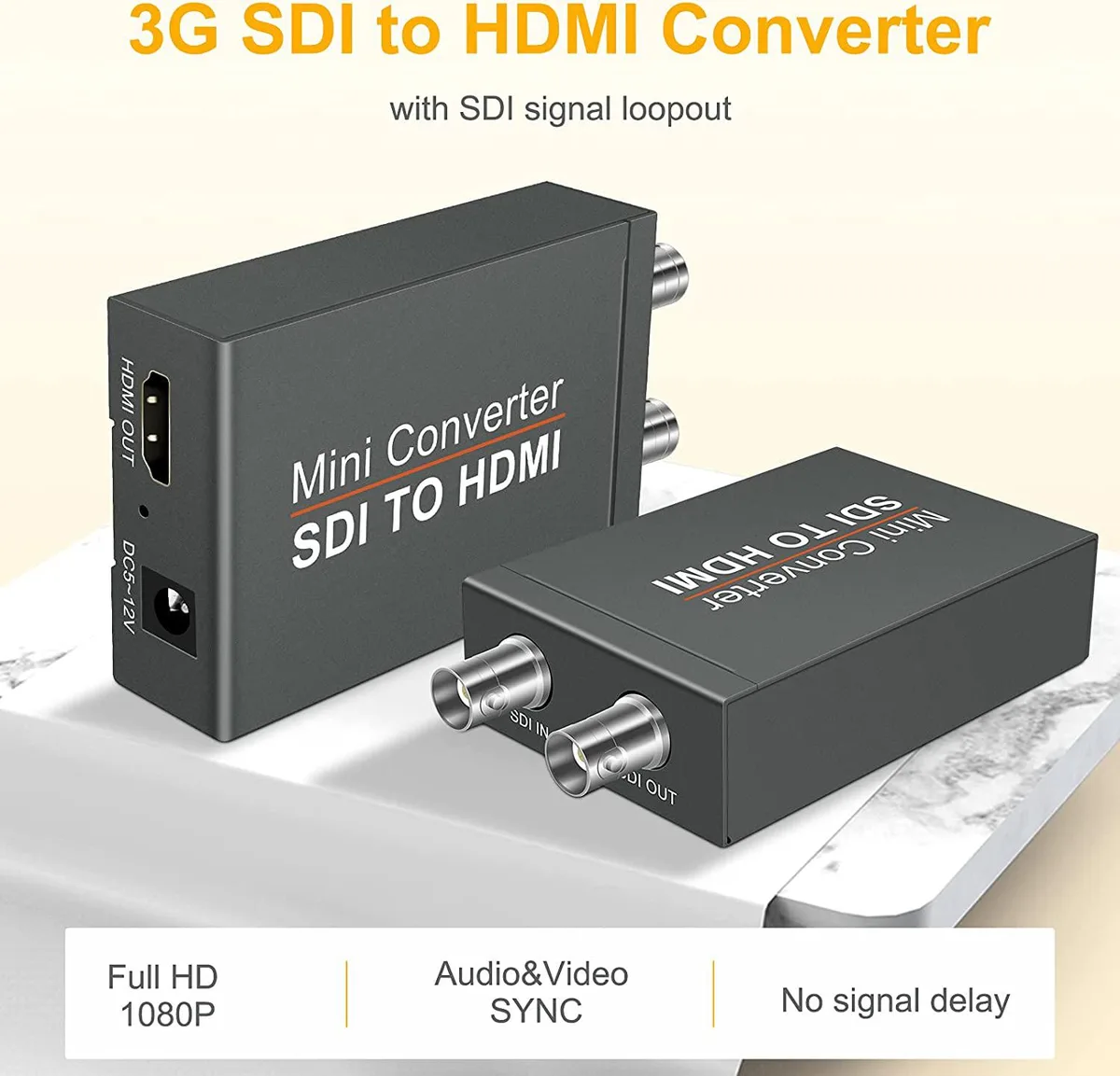

Small black converter box with SDI in, HDMI out and SDI loopout ports

LUOM

LUOM 1080P SDI to HDMI Audio Video Converter with Loopout OZH5

SKU CH-BYXK-07XVN

Converts SD-SDI, HD-SDI and 3G-SDI signals to HDMI up to 1080p at 60 Hz while providing an SDI loop output for simultaneous monitoring

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SD-SDI, HD-SDI and 3G-SDI to HDMI with auto detection
  • Simultaneous HDMI output and SDI loop-out at up to 1080P@60Hz
  • Supports 480i, 567i, 720P and 1080P input at 24, 25, 30, 50, 60Hz
  • HDMI output matches 720P and 1080P at 50 and 60Hz
  • Re-clocked loop-through extends SDI signal for cascaded runs

SDI to HDMI conversion for broadcast gear

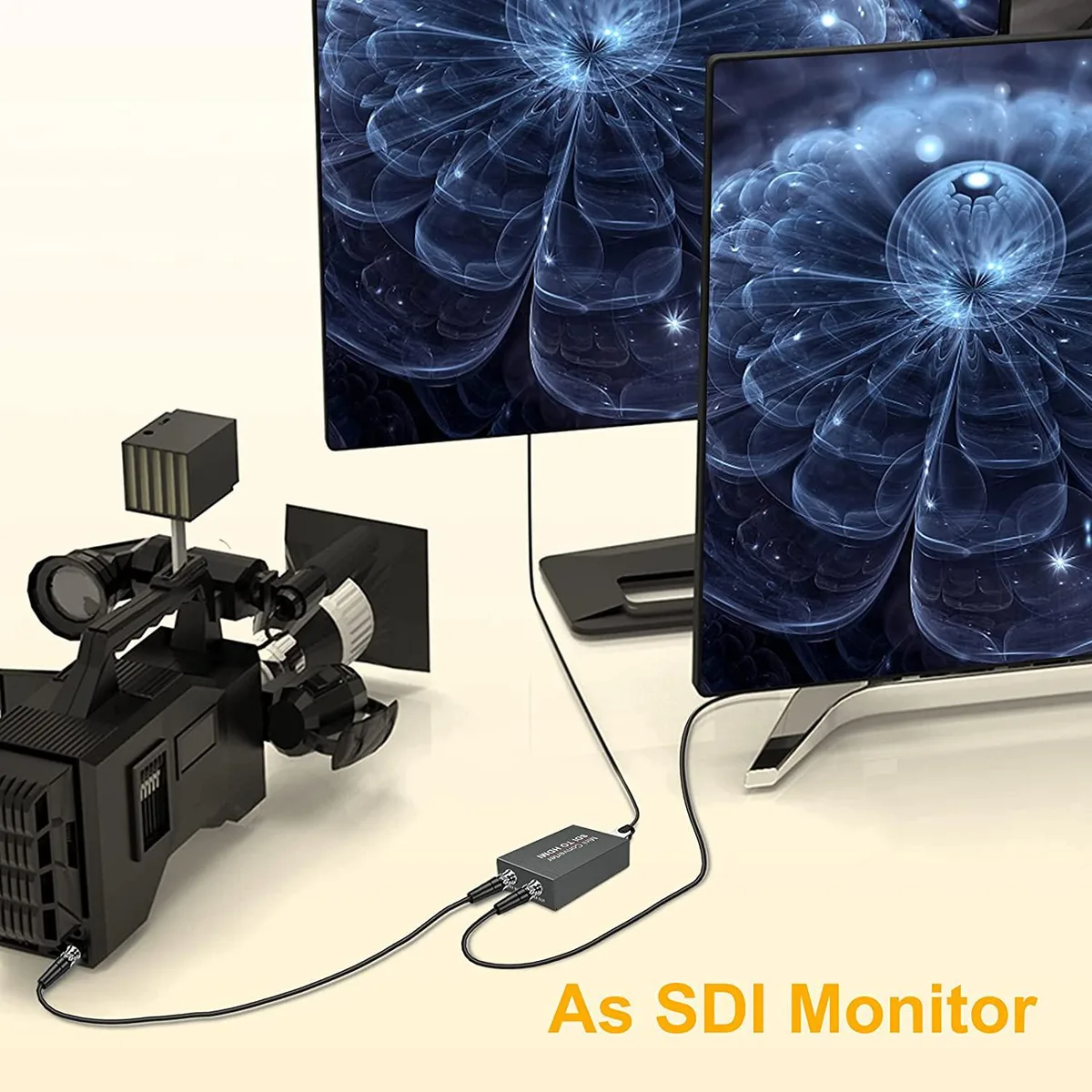

The LUOM converter takes a serial-digital interface feed from cameras, switchers or CCTV systems and turns it into an HDMI signal for monitors, recorders or streaming encoders. It accepts SD-SDI, HD-SDI and 3G-SDI standards with automatic format detection, so no manual switching is required. The box is unidirectional — it cannot send HDMI back to SDI — and it does not handle RF, CVBS, AHD, TVI or CVI over BNC.

Handles 1080p at 60 Hz with loop-through headroom

Input resolutions include 480i, 567i, 720p at 24, 25, 30, 50 and 60 Hz, 1080i at 50 and 60 Hz, and 1080p at 24, 25, 30, 50 and 60 Hz. The HDMI output mirrors those timings up to 1080p at 60 Hz, while the SDI loop-out passes the original stream at up to 2.97 Gbps for a second SDI display or downstream device. Cascading multiple units is possible but not recommended.

One-way SDI-to-HDMI path with re-clocked loop-out

The decisive spec is the single-direction architecture: the converter only moves signal from the SDI input to the HDMI output and the SDI loop-out. Any workflow that needs HDMI-to-SDI conversion, bi-directional routing or support for analogue BNC formats will require a different device.

Highlights

  • Converts SD-SDI, HD-SDI and 3G-SDI to HDMI with auto detection
  • Simultaneous HDMI output and SDI loop-out at up to 1080P@60Hz
  • Supports 480i, 567i, 720P and 1080P input at 24, 25, 30, 50, 60Hz
  • HDMI output matches 720P and 1080P at 50 and 60Hz
  • Re-clocked loop-through extends SDI signal for cascaded runs

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1
