Black rectangular HDMI matrix switch, 6.5 by 4.7 by 3.5 inches, front ports and IR sensor

LUKFOCAB SFX2X460-5V 2x4 HDMI Matrix Switch 4K 60Hz 18Gbps

SKU CH-Y6DP-RWB9W

Distributes two HDMI sources to four displays at 4K 60 Hz with optical and 3.5 mm audio extraction and IR remote control

  • TypeHDMI
  • Changer TypeHDMI
  • ColorBlack
  • Ports6
  • Input Connector6
  • Output ConnectorFemale
  • 2 input sources shared across 4 displays independently
  • 4K 60Hz HDR video with 18Gbps bandwidth
  • Optical and 3.5mm audio extraction with multi-channel formats
  • IR remote control for convenient source switching
  • Compact 6.5 x 4.7 x 3.5 inch form factor

2x4 HDMI Matrix Switch

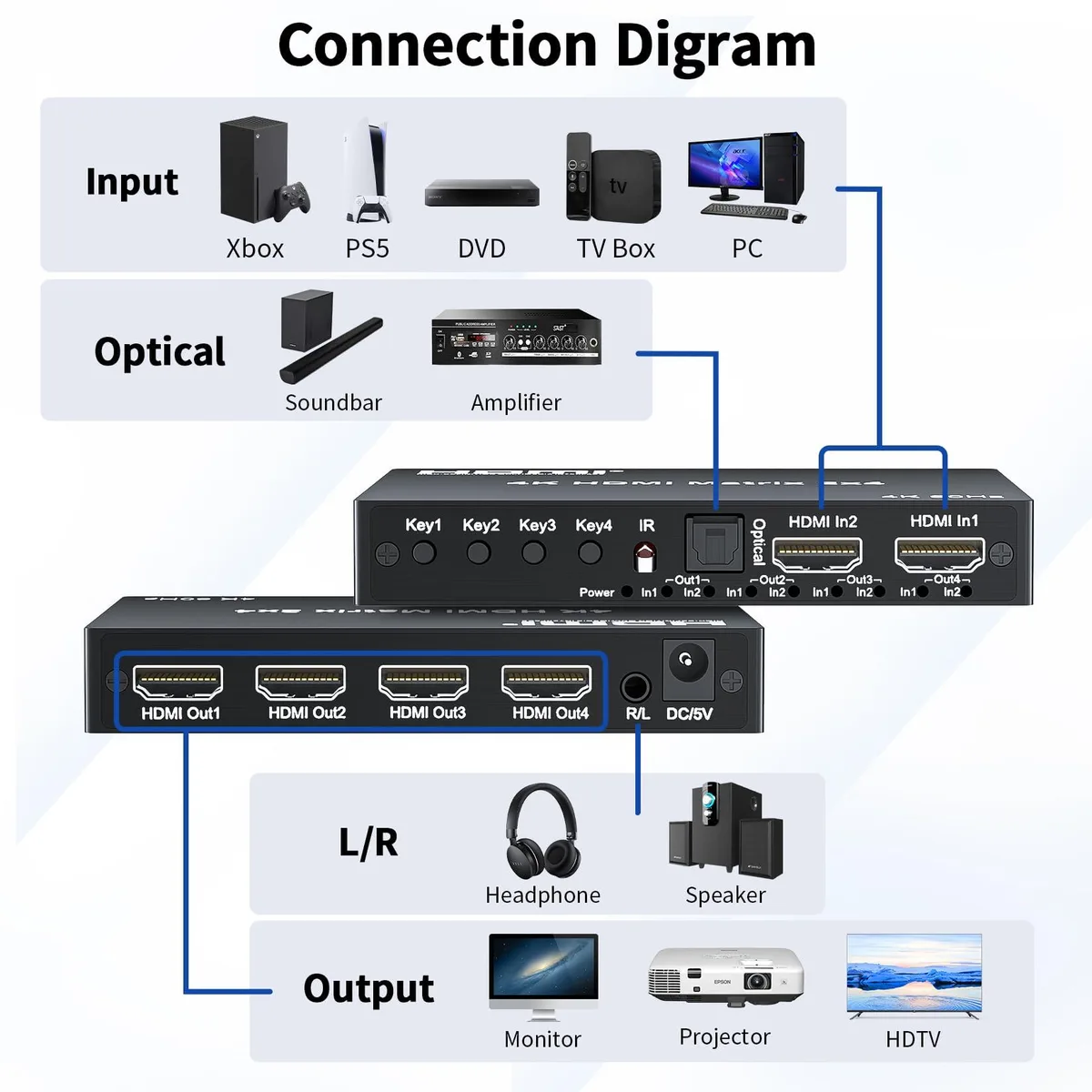

The LUKFOCAB SFX2X460-5V routes two HDMI sources to four displays simultaneously. It supports 4K resolution at 60 Hz with HDR and HDCP 2.2 compliance. Audio can be extracted via optical SPDIF or 3.5 mm ports. The unit includes an IR remote for source selection.

Cables and source limits

Use certified HDMI 2.0 cables with pure copper conductors and all 19 pins wired. Input cable runs should not exceed 5 metres at 4K 60 Hz or 15 metres at 4K 30 Hz. The switch does not support CEC control or ARC. HDMI 2.1 sources must be set to 4K 60 Hz manually to avoid signal loss.

Build integration

The matrix occupies 6.5 by 4.7 by 3.5 inches and weighs 0.41 kilograms. It requires the supplied power charger and USB cable for operation. It frees up display inputs by consolidating two sources across four screens. It does not pass CEC commands or ARC audio to connected devices.

Highlights

  • 2 input sources shared across 4 displays independently
  • 4K 60Hz HDR video with 18Gbps bandwidth
  • Optical and 3.5mm audio extraction with multi-channel formats
  • IR remote control for convenient source switching
  • Compact 6.5 x 4.7 x 3.5 inch form factor

Specifications

BrandLUKFOCAB
ModelSFX2X460-5V
Part NumberHDMI Matrix Switch 2X4
TypeHDMI
Changer TypeHDMI
ColorBlack
Ports6
Input Connector6
Output ConnectorFemale
Maximum Resolutions4K 2X4 Matrix with EDID
Dimensions6.5 in x 4.7 in x 3.5 in
Weight0.41 kilograms

Questions about this item

What comes in the box and do I need to buy HDMI cables separately?

The package includes the matrix unit, a power charger, a USB cable, an IR remote and a user manual. HDMI cables are not included and must be purchased separately.

Which of the 2X2, 2X4, 4X2 and 6X2 versions should I choose?

Choose the 2X4 model when you have two source devices and need to route them independently to four displays. The other versions support different input-output counts.

What does the 18 Gbps bandwidth mean for my 4K 60 Hz setup?

It carries full 4K 60 Hz HDR video with HDCP 2.2. Use certified HDMI 2.0 cables no longer than 5 metres for 4K 60 Hz or 15 metres for 4K 30 Hz.
