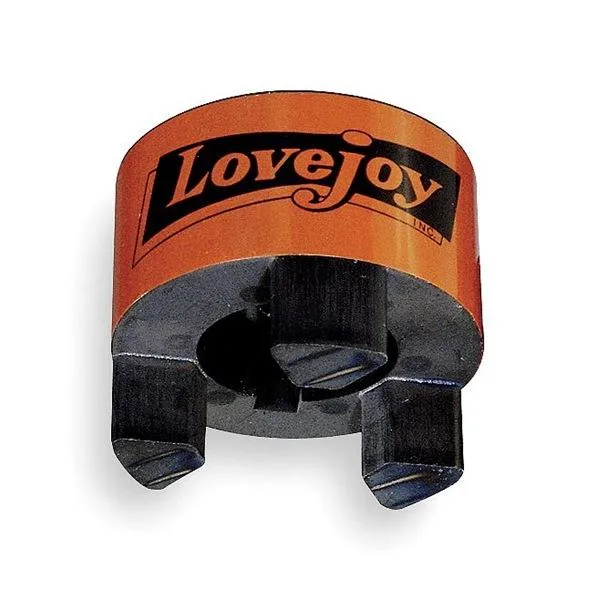

Lovejoy L110 jaw coupling hub, 24 mm bore, carbon steel, 85 mm OD, 107 mm length

Lovejoy

Lovejoy L110 24 mm Jaw Coupling Hub

SKU CH-GVJE-8XJMR

24 mm bore jaw coupling hub, L110 size, 85 mm OD, 107 mm length, carbon steel, set-screw locking, 5000 RPM max

  • 24 mm bore fits shaft directly
  • Carbon steel hub handles 5 000 RPM
  • 3 hp at 100 RPM with Buna-N spider
  • 8 mm keyway secures torque transmission
  • 85 mm OD suits L110 centre element

Jaw Coupling Hub for L110 Size

The Lovejoy L110 hub fits 24 mm shafts with a straight-jaw profile and set-screw locking. It is built from carbon steel for industrial power-transmission assemblies that use metric-dimensioned components. Buyers needing an inch-series bore or a clamp-style hub will need a different part.

Thermals Noise and Power Draw

The hub itself generates no heat or noise and draws no power; it transmits torque mechanically. At 5 000 RPM maximum speed it can deliver 1.3 hp with a Buna-N spider, 2 hp with urethane and 3.6 hp with Hytrel, all rated at 100 RPM reference speed.

Bundled Accessories and Software

No accessories, spiders or software are included with the hub. The compatible center elements carry manufacturer part numbers L110H, L110N and L110U and must be sourced separately to complete the coupling.

Highlights

  • 24 mm bore fits shaft directly
  • Carbon steel hub handles 5 000 RPM
  • 3 hp at 100 RPM with Buna-N spider
  • 8 mm keyway secures torque transmission
  • 85 mm OD suits L110 centre element

Specifications

No published specifications for this item yet.

Questions about this item

How do I install the Lovejoy L110 hub on a 24 mm shaft and what step is often missed?

Slide the hub onto the shaft, align the 8 mm keyway with the shaft key, then tighten the set screw over the key — not the empty keyway — to prevent slippage.

Which spider material should I replace the center element with and how often?

Choose Buna-N (L110N) for general use, Urethane (L110U) for oil resistance, or Hytrel (L110H) for higher torque; inspect annually and replace at first signs of cracking or hardness loss.

What is the first limit reached when running this hub continuously at high speed?

The 5,000 RPM maximum speed rating is the primary limit; sustained operation above this risks hub failure regardless of the 1.3 hp (Buna-N), 2 hp (Urethane) or 3.6 hp (Hytrel) ratings at 100 RPM.
