Grey metal cylindrical hub with 24 mm bore and set screw

Lovejoy

Lovejoy L100 Jaw Coupling Hub 24 mm Bore

SKU CH-N3H1-BECZK

Carbon steel hub with 24 mm bore and keyway fits L100 jaw couplings rated to 7,000 RPM

  • 24 mm bore fits standard metric shafts
  • 64 mm outside diameter suits L100 coupling assemblies
  • 89 mm overall length aligns with common drive spacing
  • Carbon steel hub rated to 7 000 RPM for high-speed drives
  • Compatible Buna-N, Urethane and Hytrel center elements

Jaw Coupling Hub 24 mm Bore

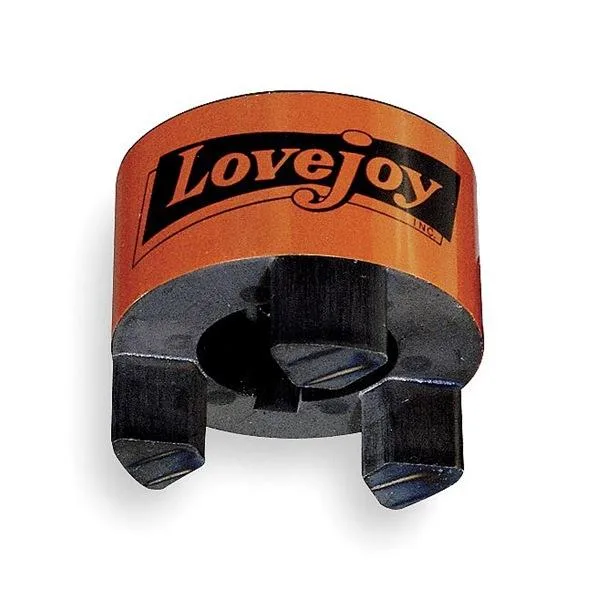

The Lovejoy L100 hub is a carbon-steel jaw coupling component with a 24 mm round bore and keyway. It connects two shafts in power-transmission systems using a compatible elastomer spider. The hub suits metric-dimension machinery where a straight-jaw profile and set-screw locking are specified.

Fits L100 Coupling Assemblies

This hub accepts centre elements with part numbers L100H, L100N or L100U and requires a matching hub on the opposite shaft. The set-screw locking secures the hub to a keyed shaft, while the straight jaw profile engages the spider to transmit torque. No additional clamping hardware is needed beyond the supplied set screw.

Torque Capacity at 100 RPM

With a Buna-N spider the hub transmits 0.66 hp, with urethane 1 hp and with Hytrel 1.8 hp at 100 rpm. Maximum rotational speed is 7,000 rpm. The 64 mm outside diameter and 89 mm overall length define the space envelope. Applications demanding higher horsepower or speed ratings will require a larger coupling size.

Highlights

  • 24 mm bore fits standard metric shafts
  • 64 mm outside diameter suits L100 coupling assemblies
  • 89 mm overall length aligns with common drive spacing
  • Carbon steel hub rated to 7 000 RPM for high-speed drives
  • Compatible Buna-N, Urethane and Hytrel center elements

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum continuous speed for the L100 hub?

The hub is rated for a maximum speed of 7,000 RPM under sustained operation.

How much horsepower can the L100 hub transmit at 100 RPM with different spiders?

At 100 RPM the hub transmits 0.66 hp with a Buna-N spider, 1 hp with a urethane spider, and 1.8 hp with a Hytrel spider.

Which shaft diameter and keyway dimensions does the 24 mm bore hub require?

The hub fits a 24 mm shaft with an 8 mm keyway width and 3.3 mm keyway depth, secured by a set screw.
