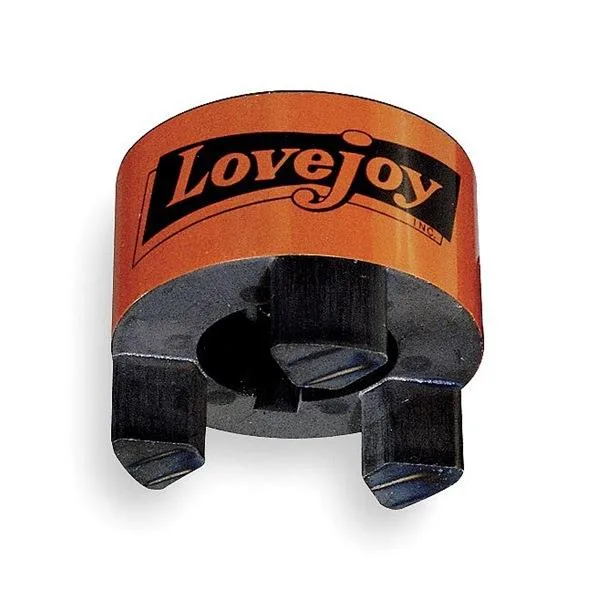

Carbon steel jaw coupling hub, 19 mm bore, 64 mm OD, 73 mm length

Lovejoy

Lovejoy L099 19mm Jaw Coupling Hub

SKU CH-VNED-PV1KN

19 mm bore jaw coupling hub rated to 7,000 RPM with 64 mm outside diameter

  • 19 mm bore fits standard metric shafts
  • Carbon steel hub handles up to 7 000 RPM
  • Set-screw locking secures the hub to the shaft
  • Buna-N spider delivers 0.51 hp at 100 RPM
  • Compatible with L099H, L099N and L099U centre elements

L099 Jaw Coupling Hub for 19 mm Shafts

This L099 jaw coupling hub fits a 19 mm round bore with a 6 mm keyway and 2.8 mm keyway depth. It is made from carbon steel and uses a set-screw locking method. The hub accepts L099H, L099N or L099U centre elements for power transmission applications.

Replaces Worn or Mismatched Hubs on L099 Couplings

The hub directly replaces an existing L099 hub when the bore size or keyway no longer matches the shaft. The upgrade is worth it when a 19 mm bore with metric keyway is required instead of a different bore diameter or imperial keyway configuration.

Fits Standard L099 Elements in Metric Drivelines

The hub has a 64 mm outside diameter and 73 mm overall length, designed for metric system drives. It requires a compatible L099 spider element to complete the coupling assembly. It frees the designer from sourcing custom bore sizes by providing a standard 19 mm metric bore option.

Highlights

  • 19 mm bore fits standard metric shafts
  • Carbon steel hub handles up to 7 000 RPM
  • Set-screw locking secures the hub to the shaft
  • Buna-N spider delivers 0.51 hp at 100 RPM
  • Compatible with L099H, L099N and L099U centre elements

Specifications

No published specifications for this item yet.

Questions about this item

What shaft diameter does the 19 mm bore of this L099 hub fit?

The hub has a 19 mm round bore with a 6 mm keyway width and 2.8 mm keyway depth for a matching shaft.

How is the hub secured to the shaft and what step is often missed?

Two set screws lock the hub; the common mistake is not tightening them onto the keyway flats after aligning the key.

Which centre element part numbers can replace the spider later?

Compatible centre elements are manufacturer part numbers L099H, L099N and L099U.
