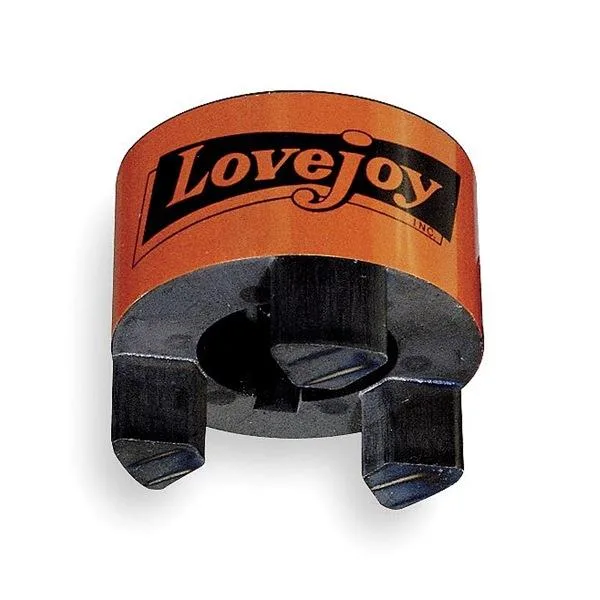

Small cylindrical metal hub with straight jaws and a 7/16 inch bore

Lovejoy

Lovejoy L075 7/16" Jaw Coupling Hub Sint Iron NK

SKU CH-0NW7-XMW48

A 7/16-inch bore jaw coupling hub rated to 11,000 RPM with set-screw locking for L075 series spiders

  • Hub transmits 0.14 hp at 100 RPM with Buna-N spider
  • Carbon steel hub handles up to 11000 RPM continuous operation
  • 7/16 inch round bore fits standard shafts directly
  • Set screw locking secures hub without additional hardware
  • Compatible with L075H, L075N, L075U center elements

Coupling Hub for 7/16" Shafts

The Lovejoy L075 jaw coupling hub fits a 7/16 inch round bore and uses a set-screw locking method. It is made from carbon steel with a straight jaw profile and an outside diameter of 1 3/4 inches. This hub is intended for mechanical power transmission assemblies that use the L075 coupling size.

Speed and Power Limits by Spider Type

Maximum rotational speed is 11,000 RPM. At 100 RPM the hub transmits 0.14 hp with a Buna-N spider, 0.21 hp with a urethane spider and 0.36 hp with a Hytrel spider. These figures define the practical torque ceiling for each compatible centre element. Exceeding the rated speed or horsepower for the chosen spider can cause premature wear or failure.

Bore Diameter Decides Fit

The single specification that determines whether this hub is the correct part is the 7/16 inch bore diameter. The hub accepts only shafts of that exact size with a set-screw flat. Buyers who need a different bore diameter, a keyway connection or a metric shaft cannot use this hub.

Highlights

  • Hub transmits 0.14 hp at 100 RPM with Buna-N spider
  • Carbon steel hub handles up to 11000 RPM continuous operation
  • 7/16 inch round bore fits standard shafts directly
  • Set screw locking secures hub without additional hardware
  • Compatible with L075H, L075N, L075U center elements

Specifications

No published specifications for this item yet.

Questions about this item

Which bore size matches a 7/16 inch shaft?

This hub is machined for a 7/16 in round bore with a set-screw lock, so it fits that shaft diameter directly.

What horsepower can it transmit at 100 RPM with each spider type?

At 100 RPM the hub handles 0.14 hp with a Buna-N spider, 0.21 hp with urethane and 0.36 hp with Hytrel.

What centre element part numbers does the L075 hub accept?

It is compatible with centre elements L075H, L075N and L075U.
