Black rectangular adapter with USB 3.1 Type-E male plug

LORDWORLD

LORDWORLD USB 3.1 Type-E to USB 2.0 Type-A & Dual 9/10pin Header Adapter

SKU CH-24HY-FKWKB

Converts a motherboard USB 3.1 Type-E header to one USB 2.0 Type-A port and dual 9/10-pin headers with a built-in hub chipset running at 480Mbps

  • Converts a 20pin Type-E header into two 9pin connectors for extra internal ports
  • Built-in USB 2.0 hub chipset delivers 480Mbps bandwidth for connected devices
  • Each port supplies DC 5V 500mA current to power peripherals reliably
  • Includes adapter, cable and PCBA so installation is straightforward
  • Male Type-E plug fits motherboard front-panel header for a secure connection

Front Panel Type-E Conversion

This adapter converts a motherboard USB 3.1 Type-E header into a USB 2.0 Type-A port and two 9/10-pin headers. It is designed for builders who need to connect legacy front-panel cables or internal USB devices to a modern 20-pin header. A USB 2.0 hub chipset manages the connection and provides 480 Mbps bandwidth. Each port supports DC 5V 500mA current delivery.

Upgrade From Limited Headers

The adapter replaces the need for a motherboard with native Type-A or 9-pin headers when only a Type-E connector is available. The jump is worth it when a case front panel uses older USB 2.0 cables or 9-pin connectors that cannot plug directly into the 20-pin header. It also solves port shortages by splitting one Type-E header into three usable connections for internal devices.

Straightforward Internal Install

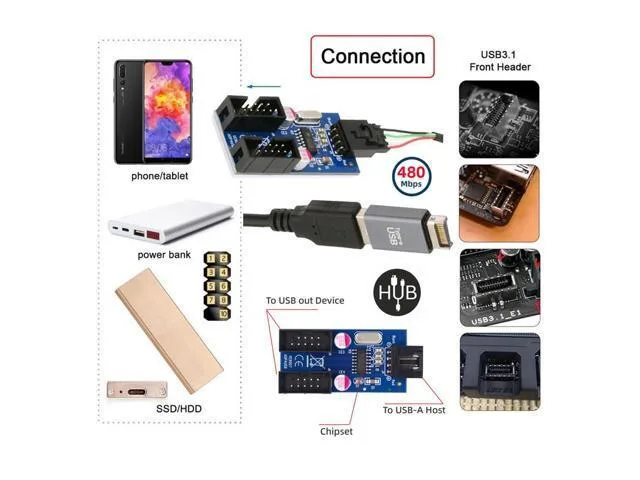

Installation requires plugging the male Type-E connector into the motherboard header and attaching cables to the female Type-A and dual 9/10-pin ports. The package includes one adapter, one cable and one PCBA for flexible routing. Care is needed to align the 9-pin and 10-pin plugs correctly, as reversed insertion is the most common issue. No drivers are required for the hub chipset.

Highlights

  • Converts a 20pin Type-E header into two 9pin connectors for extra internal ports
  • Built-in USB 2.0 hub chipset delivers 480Mbps bandwidth for connected devices
  • Each port supplies DC 5V 500mA current to power peripherals reliably
  • Includes adapter, cable and PCBA so installation is straightforward
  • Male Type-E plug fits motherboard front-panel header for a secure connection

Specifications

BrandLORDWORLD

Questions about this item

What motherboard header does the 20-pin Type-E plug fit?

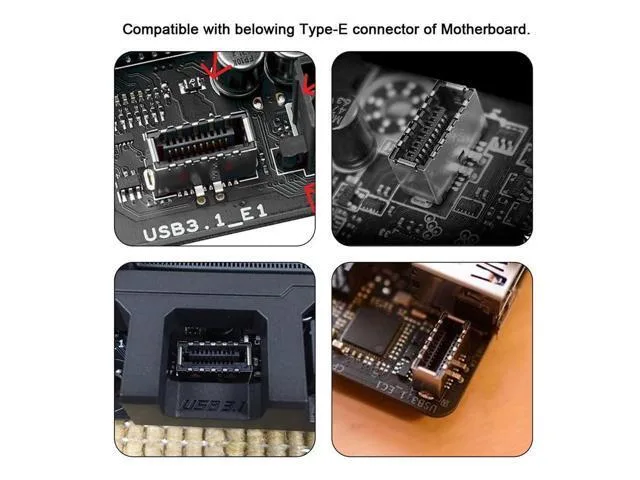

The adapter plugs directly into a motherboard USB 3.1 front-panel header that uses the 20-pin Type-E keying.

Which step do builders often miss when seating the dual 9-pin headers?

Align the missing-pin key on each 9-pin connector with the blocked hole on the motherboard USB 2.0 header before pressing down.

When should the on-board USB 2.0 hub chip be replaced?

The hub chip is soldered to the PCBA and is not user-replaceable; if a port stops delivering 5 V 500 mA the whole adapter must be swapped.
