Green circuit board with two USB-C ports and a low-profile metal bracket

LORDWORLD

LORDWORLD USB 3.1 Gen1 PCIe x1 Dual Type-C Adapter ASM1042 Low Profile

SKU CH-KANY-7ST2M

Adds two USB 3.1 Gen1 Type-C ports at 5 Gbps via a PCIe x1 slot using the ASM1042 chipset, includes low-profile and standard brackets, supports 5 V/3 A power, works driver-free on Windows 10/11.

  • 5 Gbps data transfers via ASM1042 chipset
  • Dual reversible Type-C ports supply 5 V / 3 A power
  • PCIe x1 interface adds USB 3.1 Gen 1 to any desktop
  • Driver-free on Windows 10, 11, macOS and Linux
  • Includes low-profile and standard brackets for flexible fit

USB 3.1 Gen1 PCIe x1 Card

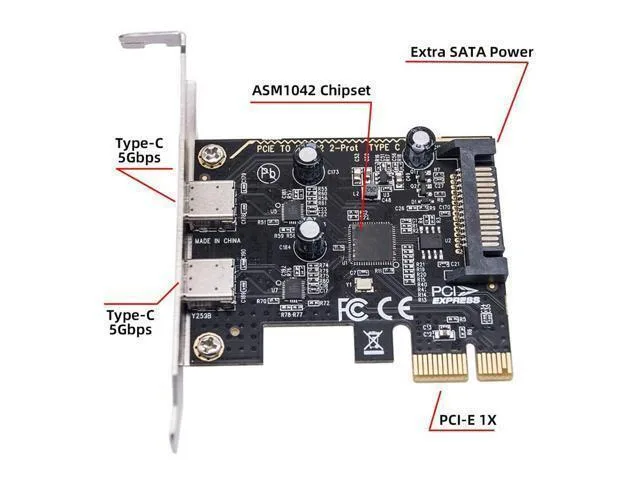

This adapter adds two USB-C ports to a desktop computer through a PCI Express x1 slot. It uses the ASM1042 chipset to deliver up to 5Gbps transfer speeds and 5V/3A power on each port. The card ships with both a low-profile bracket and a standard-height bracket for different chassis types.

Builders needing front-panel USB-C

The board suits system integrators upgrading older cases or adding modern Type-C connectivity to workstations. It does not carry video, audio or Thunderbolt signals, so users who need display output or dock charging should look elsewhere. Windows 7 requires a driver install; Windows 10, 11, macOS 10.8.2+ and Linux work without extra software.

ASM1042 chipset with Multiple INs

The controller implements the Multiple INs feature to keep the 5Gbps bus saturated during sustained transfers. High-draw devices such as portable SSDs require the auxiliary power connector to be attached. Without that connection the ports remain limited to low-power peripherals.

Highlights

  • 5 Gbps data transfers via ASM1042 chipset
  • Dual reversible Type-C ports supply 5 V / 3 A power
  • PCIe x1 interface adds USB 3.1 Gen 1 to any desktop
  • Driver-free on Windows 10, 11, macOS and Linux
  • Includes low-profile and standard brackets for flexible fit

Specifications

BrandLORDWORLD

Questions about this item

Does the card ship with both the 8 cm low-profile and 12 cm standard brackets so I can fit it in either case size?

Yes, the package includes both an 8 cm low-profile bracket and a 12 cm standard bracket for flexible installation.

Which ASM1042-based version should I pick if I need two reversible Type-C ports running at 5 Gbps?

This single model provides two Type-C ports with reversible plugs, each delivering up to 5 Gbps over a PCIe x1 slot.

Will the 5 Gbps rating hold when I plug in a USB 3.1 Gen 1 SSD through the Type-C port?

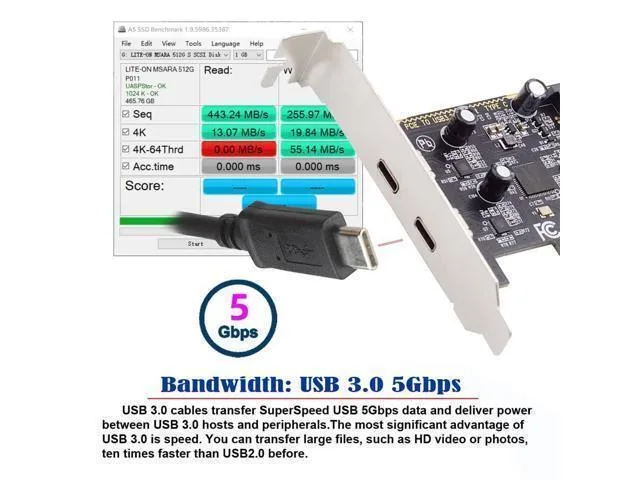

The ASM1042 chipset uses Multiple INs to sustain the full 5 Gbps bus bandwidth, though high-power SSDs may require an extra power connection.
