Two braided Mini SAS 36-pin male to four SATA 7-pin female cables, 1 metre each

LORDWORLD

LORDWORLD SFF-8087 Mini SAS to 4x SATA Cable 1M 2Pack

SKU CH-XC1E-QTJP3

Two cables connect a 36-pin SFF-8087 port to four SATA drives at up to 6 Gb/s per drive

  • Connect four drives from one controller

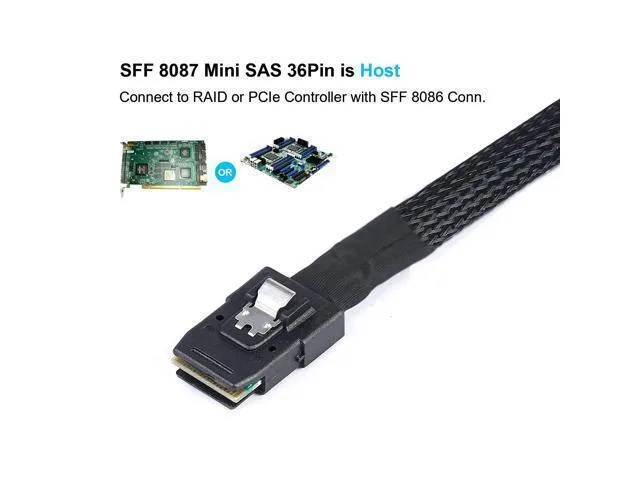

  • 36-pin SFF-8087 male plugs into HBA or RAID card

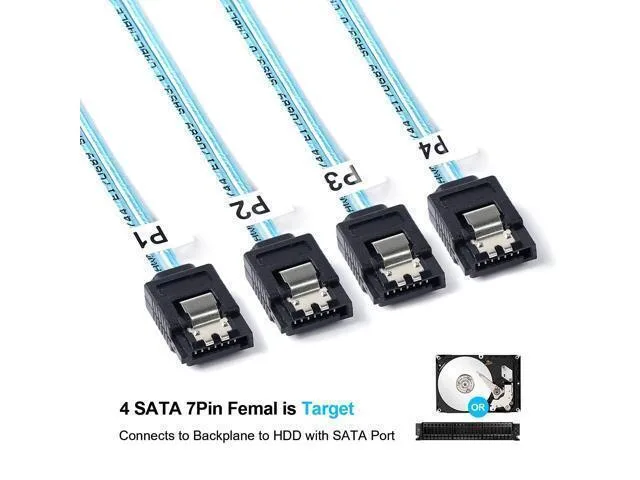

  • Four SATA 7-pin females link to HDDs or backplane
  • Each lane runs up to 6 Gb/s per drive
  • Braided 1 m cable with locking latch for tidy routing

SFF-8087 to 4× SATA breakout cable

This LORDWORLD cable converts a single internal Mini-SAS 36-pin SFF-8087 male port into four SATA 7-pin female connectors. It links a SAS HBA or RAID controller to up to four SATA hard drives or a backplane. The 1-metre braided assembly includes a locking latch on the Mini-SAS end for a secure fit. A two-pack provides spare or duplicate runs for multi-array builds.

6 Gb/s per drive ceiling and forward-only wiring

Each SATA leg tops out at 6 Gb/s, so the aggregate throughput cannot exceed the controller's four-lane limit. The forward breakout design means the SFF-8087 plug must face the controller side; connecting it to a backplane will not work. No signal translation or port multiplication occurs, so every drive appears as a direct target to the host adapter.

Replaces loose fan-out cables

Builders moving from individual SATA cables or non-locking fan-outs gain labelled legs, a latch and a managed braid that eases routing. The upgrade is worth it when a controller has free SFF-8087 ports and the chassis needs four drives per port without cable clutter. It does not add ports where none exist, so systems without a compatible HBA see no benefit.

Highlights

  • Connect four drives from one controller
  • 36-pin SFF-8087 male plugs into HBA or RAID card
  • Four SATA 7-pin females link to HDDs or backplane
  • Each lane runs up to 6 Gb/s per drive
  • Braided 1 m cable with locking latch for tidy routing

Specifications

BrandLORDWORLD

Questions about this item

Which length should I pick between the .5 meter and 3.3 ft versions?

Choose the .5 meter cable for tight chassis routing or the 3.3 ft cable when drives sit farther from the controller; both use the same SFF-8087 male to four SATA female breakout.

What does the 6 Gb/s per drive figure mean once installed?

Each of the four SATA connectors can transfer up to 6 Gb/s, so a single drive sees SATA III speed while the combined link runs over the 36-pin Mini SAS interface.

What does the SFF-8087 interface cap in practice?

The SFF-8087 36-pin male plugs into a SAS HBA or RAID controller and breaks out to four SATA 7-pin females, limiting the link to 6 Gb/s per attached drive.
