Silver 5.25 inch front panel with USB-C, four USB-A, 3.5 mm audio and mic jacks

LORDWORLD

LORDWORLD 5.25" Front Panel USB 3.2 Gen 2 Type-C Hub 7 Ports Audio Mic

SKU CH-NGHV-MRSCY

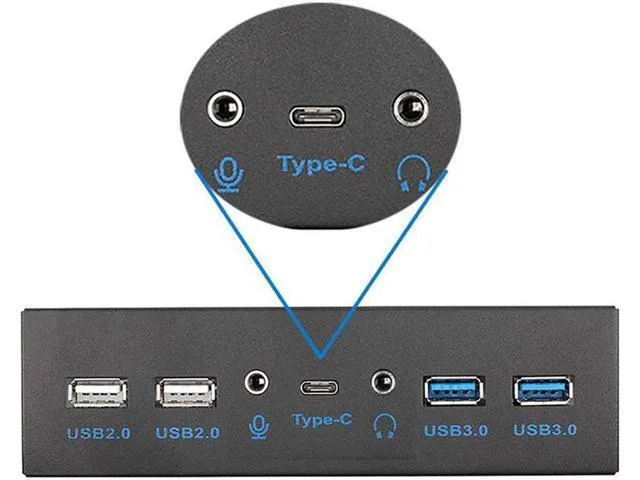

A 5.25 inch front-panel hub adds one USB 3.2 Gen 2 Type-C port at 10Gbps, two USB 3.0 ports, two USB 2.0 ports, plus 3.5mm audio and microphone jacks.

  • 10 Gbps Type-C port for fast external drives
  • Two USB 3.0 and two USB 2.0 ports add legacy device support
  • Front-panel 3.5 mm audio and microphone jacks for headset convenience
  • Fits a standard 5.25 inch drive bay with 2.6 ft internal cables
  • Requires USB 3.1 20-pin, USB 3.0 20-pin, USB 2.0 10-pin and HD Audio 10-pin motherboard headers

Front-panel 5.25" hub for USB and audio

This 5.25-inch front-panel hub adds seven ports to a desktop case, giving quick access to USB Type-C at 10 Gbps, two USB 3.0 ports, two USB 2.0 ports, plus 3.5 mm headphone and microphone jacks. It suits builders who want modern front-panel connectivity without replacing the chassis.

Port mix and motherboard header requirements

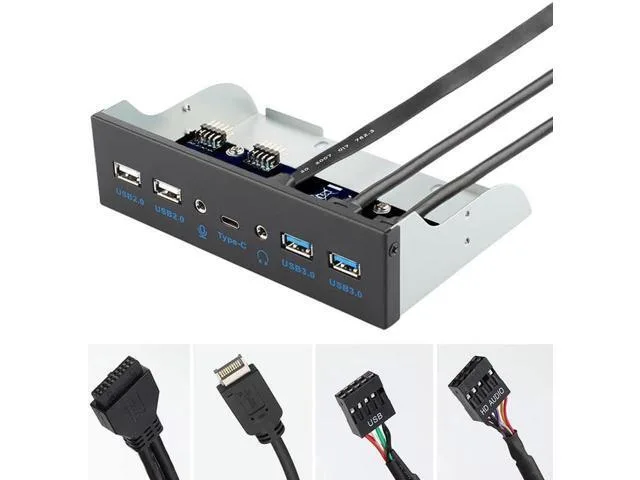

The single Type-C port runs at 10 Gbps and needs a USB 3.1 20-pin Type-E header, while the two USB 3.0 ports require a 20-pin USB 3.0 header and the two USB 2.0 ports need a 10-pin USB 2.0 header. Audio and microphone jacks depend on a 10-pin HD Audio header. Systems missing any of these headers cannot enable the corresponding ports.

Included cables reach standard motherboard layouts

All internal cables measure 2.6 ft, long enough to reach headers on typical ATX and micro-ATX boards routed behind the motherboard tray. No driver discs or management software are mentioned, so the hub relies on the operating system’s native USB and audio stacks.

Highlights

  • 10 Gbps Type-C port for fast external drives
  • Two USB 3.0 and two USB 2.0 ports add legacy device support
  • Front-panel 3.5 mm audio and microphone jacks for headset convenience
  • Fits a standard 5.25 inch drive bay with 2.6 ft internal cables
  • Requires USB 3.1 20-pin, USB 3.0 20-pin, USB 2.0 10-pin and HD Audio 10-pin motherboard headers

Specifications

BrandLORDWORLD

Questions about this item

Will my existing motherboard with a USB 3.1 20-pin Type-E header support the front USB-C port at 10Gbps?

Yes, the USB 3.1 20-pin Type-E header on your motherboard provides the required bandwidth for the front USB-C port to operate at 10Gbps.

How can I confirm the HD Audio and microphone ports are functioning after installation?

Connect the 10-pin HD Audio header to the motherboard, plug in a headset, and verify both playback and recording levels in your operating system sound settings.

Which cables and headers are included for connecting the hub's seven ports and audio jacks?

The hub includes cables for a USB 3.1 20-pin Type-E header, one 20-pin USB 3.0 header, one 10-pin USB 2.0 header, and one 10-pin HD Audio header, each 2.6FT long.
