Silver metal card with four removable drive trays and quick-release knobs

LORDWORLD

LORDWORLD 4 Bay M.2 NVMe PCIe 5.0 x16 Mobile Rack Adapter

SKU CH-MHVN-A7DCW

Holds four M.2 NVMe SSDs from 30-80mm in a single PCIe 5.0 x16 slot with tool-less removable trays and quick-release knobs

  • Supports four NVMe SSDs in one PCIe 5.0 x16 slot
  • Accepts M.2 2230 to 2280 lengths from 30 to 80 mm
  • Requires PCIe bifurcation x4, x4, x4, x4 for full four-drive access
  • Tool-less tray design enables quick drive swaps without tools
  • Quick-release knob allows fast SSD removal and installation

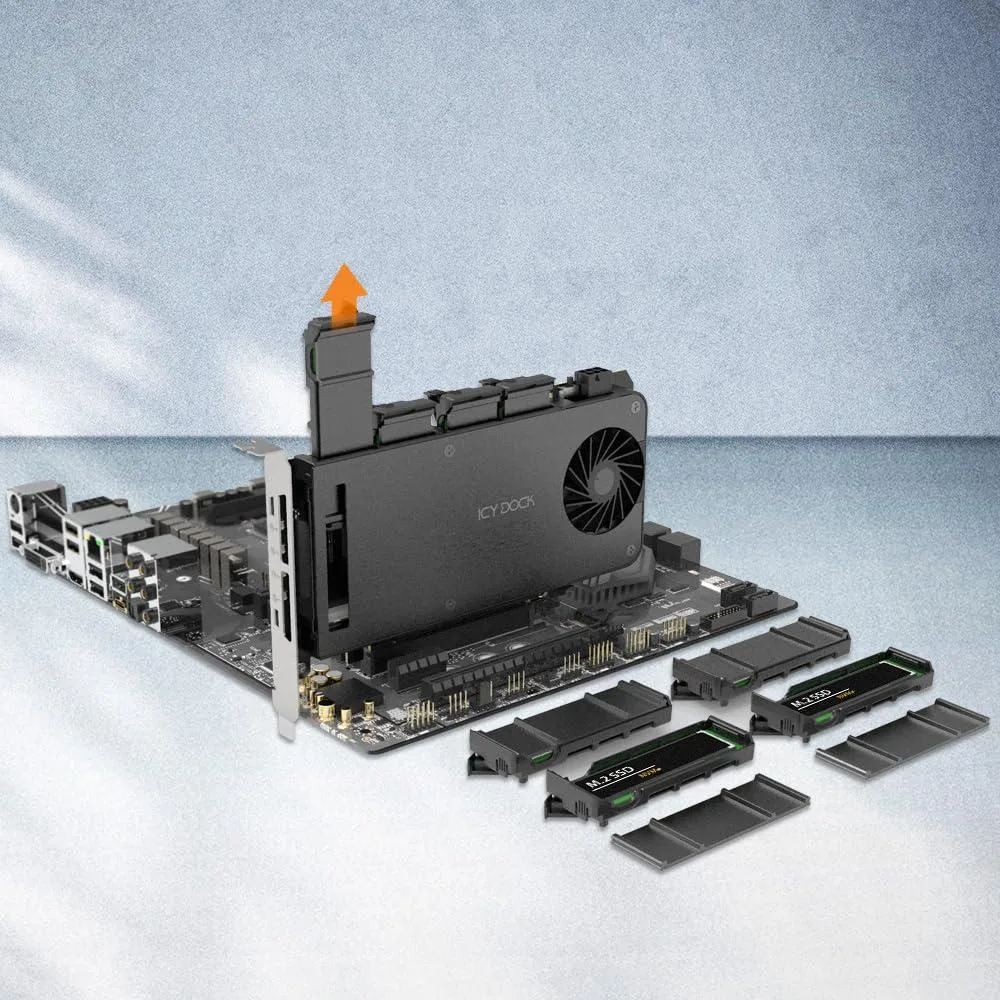

Four-bay M.2 NVMe adapter for PCIe 5.0 x16

This card holds four M.2 NVMe drives from 30 mm to 80 mm in a single PCIe 5.0 x16 slot. It is aimed at users who need dense NVMe storage and have a platform that supports PCIe bifurcation. Without that capability the card cannot expose all four drives.

Sustained performance depends on host bifurcation

When the motherboard splits the x16 link into four x4 links each drive runs at its native PCIe 5.0 x4 speed. If the platform cannot bifurcate only one drive will be visible and the other three remain inaccessible. Thermal behaviour will follow the drives installed and the airflow in the chassis.

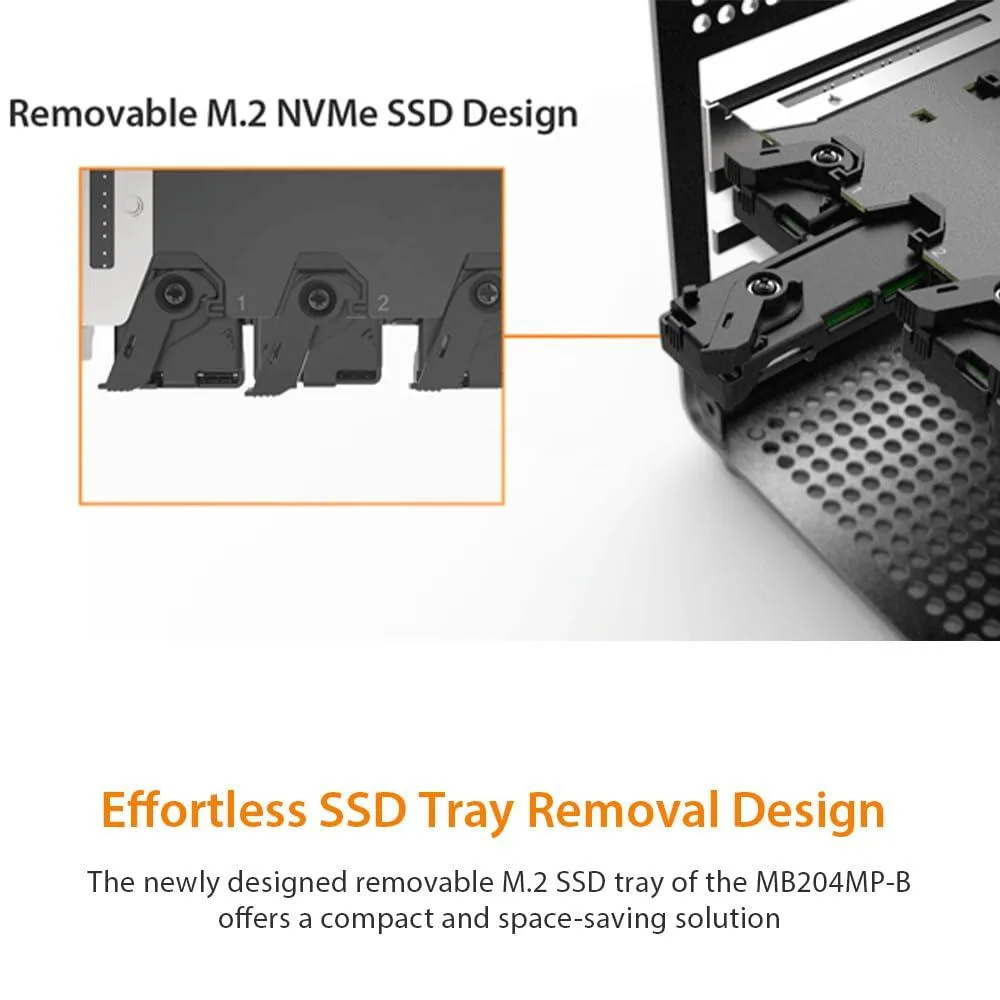

Tool-less trays with quick-release knobs

Each drive slides into a removable tray that locks with a knob, so no screws are needed for installation. The card occupies one full-height single-width slot. Builders must verify that their CPU or chipset provides x4, x4, x4, x4 bifurcation before purchase; otherwise the adapter will not function as intended.

Highlights

  • Supports four NVMe SSDs in one PCIe 5.0 x16 slot
  • Accepts M.2 2230 to 2280 lengths from 30 to 80 mm
  • Requires PCIe bifurcation x4, x4, x4, x4 for full four-drive access
  • Tool-less tray design enables quick drive swaps without tools
  • Quick-release knob allows fast SSD removal and installation

Specifications

BrandLORDWORLD

Questions about this item

How much power and heat does the PCIe 5.0 x16 card generate when all four NVMe drives run continuously?

The adapter itself draws minimal power; total heat depends on the four NVMe SSDs installed, each of which can draw up to its rated TDP under sustained load.

What motherboard feature must I already have for the card to expose all four M.2 slots?

The motherboard must support PCIe bifurcation splitting the x16 slot into four x4 lanes; without it only one drive will be visible.

Will my older PCIe 3.0 NVMe SSDs (2280) work in this adapter alongside newer drives?

Yes, any PCIe NVMe SSD in 2230, 2243, 2260 or 2280 form factor will operate at the speed of the slower generation when mixed.
