Metal 5.25-inch bay enclosure with four 2.5-inch drive trays and blue LEDs

LORDWORLD

LORDWORLD 4 Bay 2.5 SATA/SAS Hard Drive Adapter

SKU CH-DD64-HGNHY

Holds four 2.5" SATA or SAS drives in one 5.25" bay with hot-swap trays and a three-speed fan

  • Fits four 2.5" drives in one 5.25" bay
  • Hot-swap trays let you change drives without tools
  • SATA 6Gbps and SAS 3.0 12Gbps support for fast transfers
  • Single 15-pin power connector runs all four drives
  • Three-speed fan control balances cooling and noise

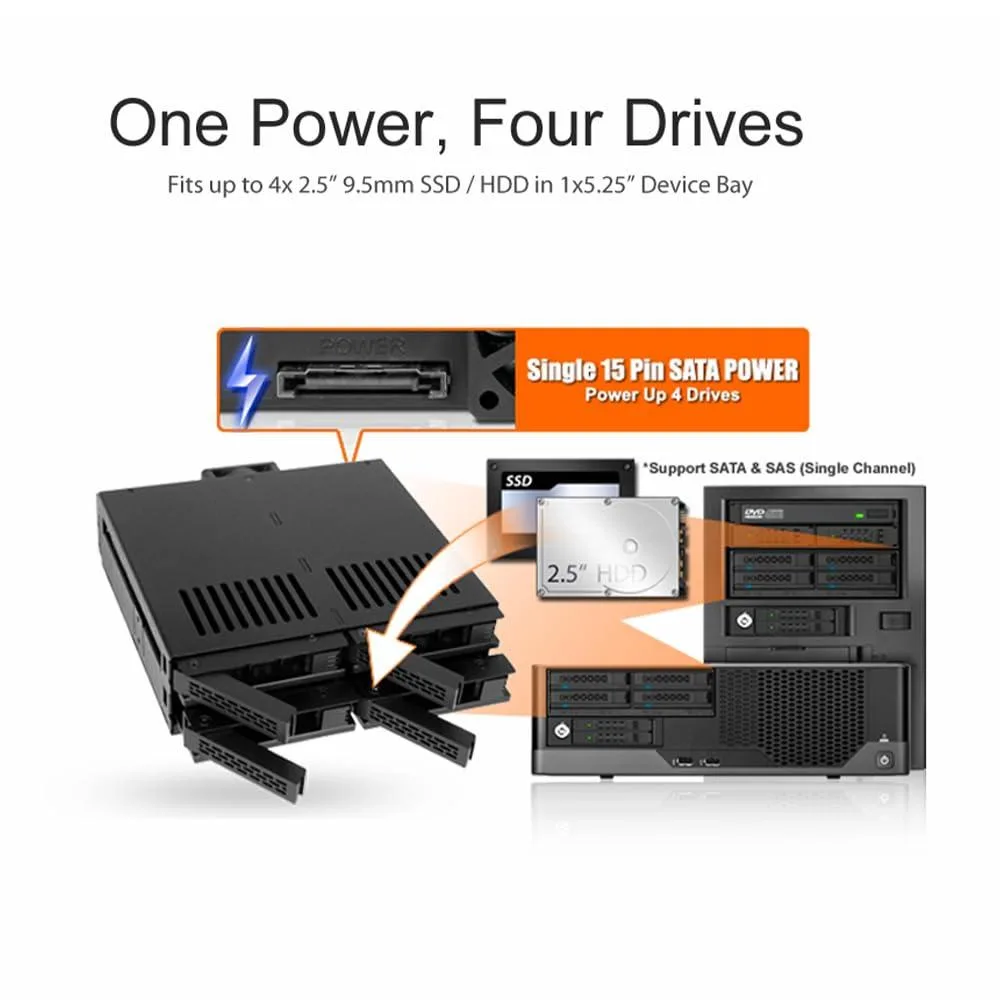

Four 2.5-inch drives in one 5.25 bay

The LORDWORLD ExpressCage MB324SP-1B fits four 2.5-inch SATA or SAS hard drives and SSDs into a single 5.25-inch drive bay. It is built for workstations and servers that need high storage density without sacrificing a full-height slot. The tray system accepts drives from 5 mm to 12.5 mm thick.

SATA 6 Gbps or SAS 3.0 12 Gbps single channel

Each bay connects through a standard 7-pin SATA data cable, so the total throughput is limited to the single-channel speed of the host controller. Drives can be swapped while the system runs, but the backplane does not multiply bandwidth across the four ports. Cable routing and controller choice determine real-world performance.

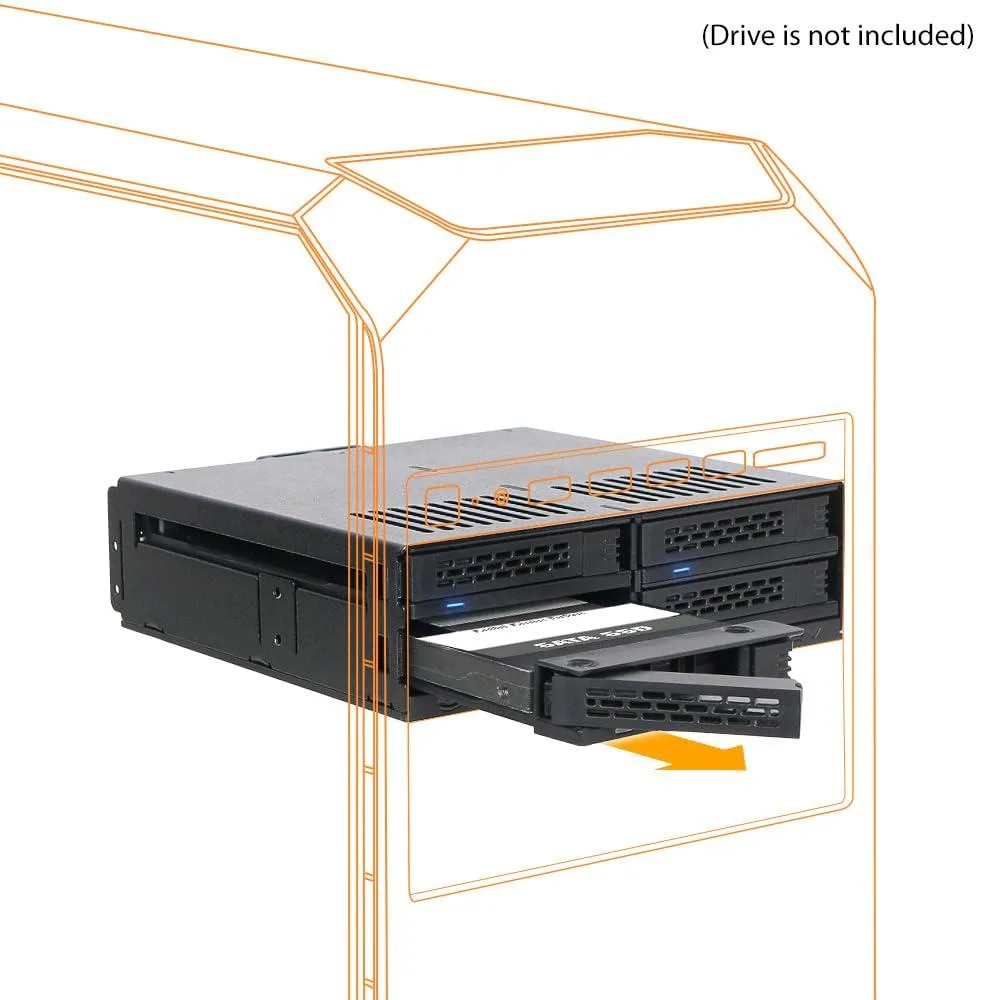

Metal enclosure with tool-less trays

A steel frame and ABS trays lock together with a latching door, while the ExpressTray design lets you insert or remove drives without screws. Each bay has a blue activity LED, and a single 15-pin SATA power connector feeds all four drives through locking latches. The built-in fan offers high, low and off settings for noise control.

Highlights

  • Fits four 2.5" drives in one 5.25" bay
  • Hot-swap trays let you change drives without tools
  • SATA 6Gbps and SAS 3.0 12Gbps support for fast transfers
  • Single 15-pin power connector runs all four drives
  • Three-speed fan control balances cooling and noise

Specifications

BrandLORDWORLD

Questions about this item

Should I pick the 2.5-inch SATA or SAS version for my drives?

The enclosure accepts both SATA and SAS 2.5-inch drives at the same time, so you do not need to choose a separate version.

What does the 12Gbps SAS 3.0 figure mean once the rack is installed?

It shows the maximum single-channel throughput the backplane can pass when a SAS 3.0 drive is connected; actual speed depends on the drive and host controller.

Which interface does the 7-pin connector use and what does it cap?

Each bay uses a 7-pin SATA connector limited to SATA 6Gbps, while the same slot also supports SAS 3.0 12Gbps on a single channel.
