Full-metal mobile rack with removable tray, key lock and thumb screws for 2.5 SATA/SAS drive in 3.5 bay

LORDWORLD

LORDWORLD 2.5 SATA/SAS 3.5" Mobile Rack 491 Key Lock Thumb Screw

SKU CH-TEQK-1E53Z

Holds one 2.5" SATA or SAS drive in a 3.5" bay with key and thumb-screw locks, hot-swap tray and full-metal build

  • Fits 2.5 SATA or SAS drives in a 3.5 bay
  • Supports SATA 6Gbps and SAS 12Gbps single channel
  • Removable tray enables hot-swap maintenance
  • Dual locks secure drive and resist vibration
  • Full metal build suits industrial and mobile systems

2.5″ SATA/SAS mobile rack for 3.5″ bays

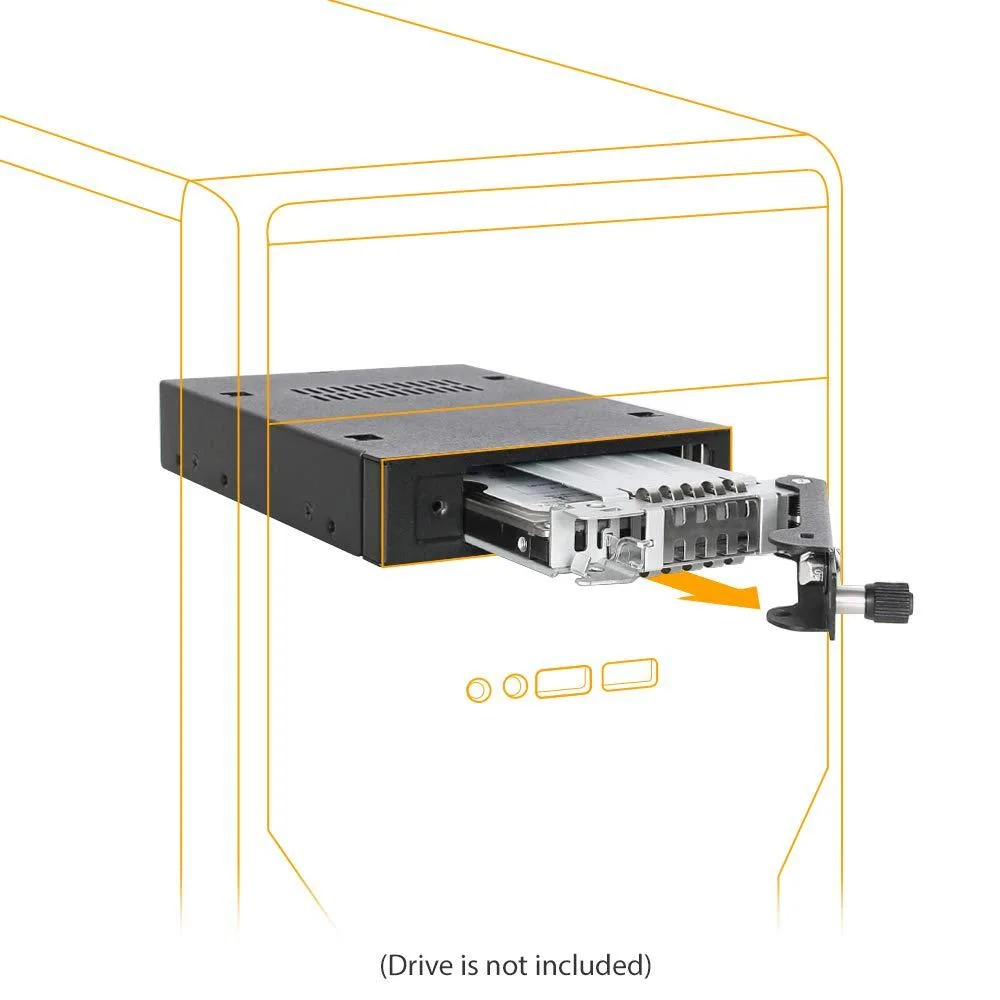

This adapter lets you install one 2.5″ SATA or SAS drive into an external 3.5″ bay. It accepts drives from 5 mm to 15 mm thick and supports SATA 6 Gbps or SAS 12 Gbps on a single channel. The full-metal chassis and low-profile design suit industrial PCs, surveillance units and embedded systems.

Upgrade from fixed 3.5″ trays or open brackets

A removable tray with hot-swap support replaces screw-in caddies and speeds up drive changes during maintenance. The dual-lock mechanism — key lock for security and thumb screw for vibration resistance — adds protection that basic trays lack. The jump is worth it when drives must be swapped quickly in rugged or mobile environments.

SATA and SAS single-channel interface limits

The backplane carries one SATA 7-pin data and one 15-pin power connector, each with a locking latch. Bandwidth tops out at SATA 6 Gbps or SAS 12 Gbps, so multi-drive arrays or dual-port SAS redundancy are not possible. The tray fits only one drive, so capacity scales by adding more bays rather than expanding this unit.

Highlights

  • Fits 2.5 SATA or SAS drives in a 3.5 bay
  • Supports SATA 6Gbps and SAS 12Gbps single channel
  • Removable tray enables hot-swap maintenance
  • Dual locks secure drive and resist vibration
  • Full metal build suits industrial and mobile systems

Specifications

BrandLORDWORLD

Questions about this item

Will a 15 mm 2.5 inch SATA SSD fit inside the 3.5 inch bay tray?

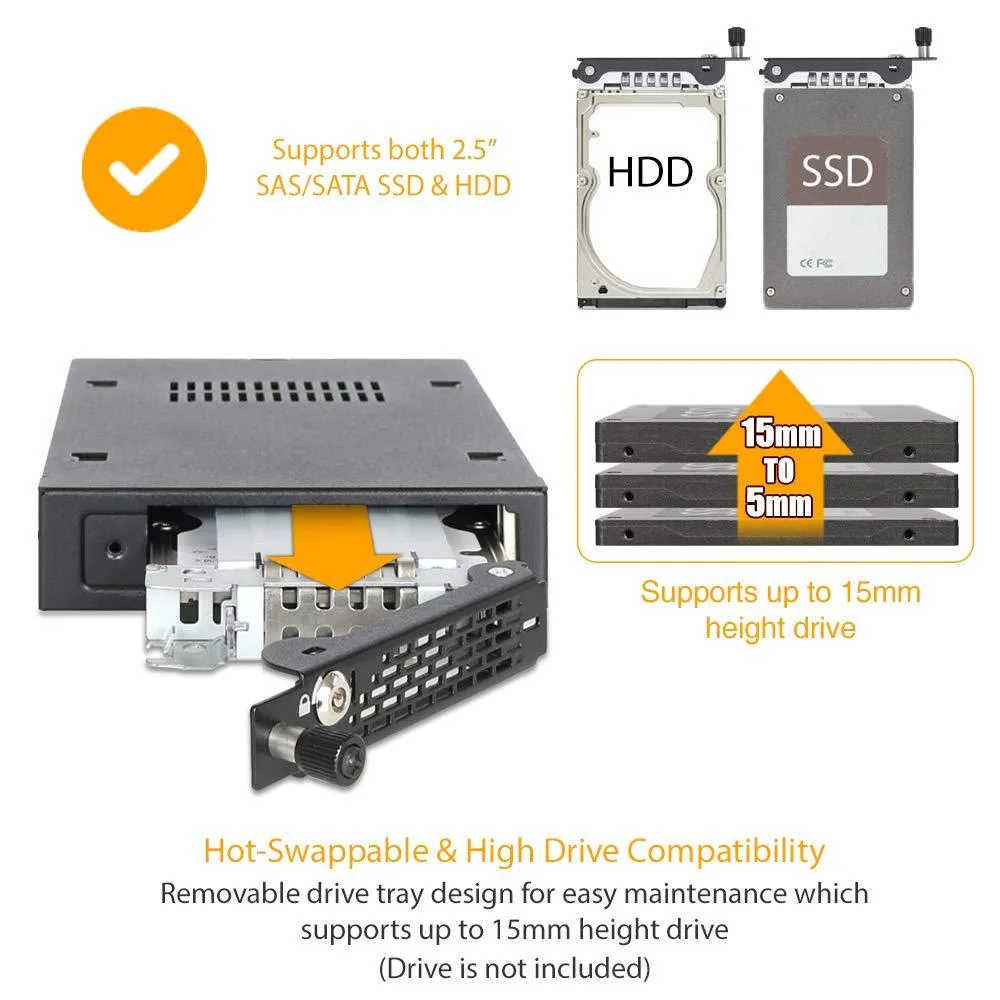

The tray accepts any 2.5 inch SATA or SAS drive from 5 mm up to 15 mm in height.

Do I need tools to install the rack into a standard 3.5 inch drive bay?

The thumb screw lock secures the unit by hand; no screwdriver is required for the bay mount.

How do I swap a failed drive without powering down the system?

Pull the removable tray out, release the latch on the SATA data and power ports, then insert the replacement tray — hot-swap is supported.
