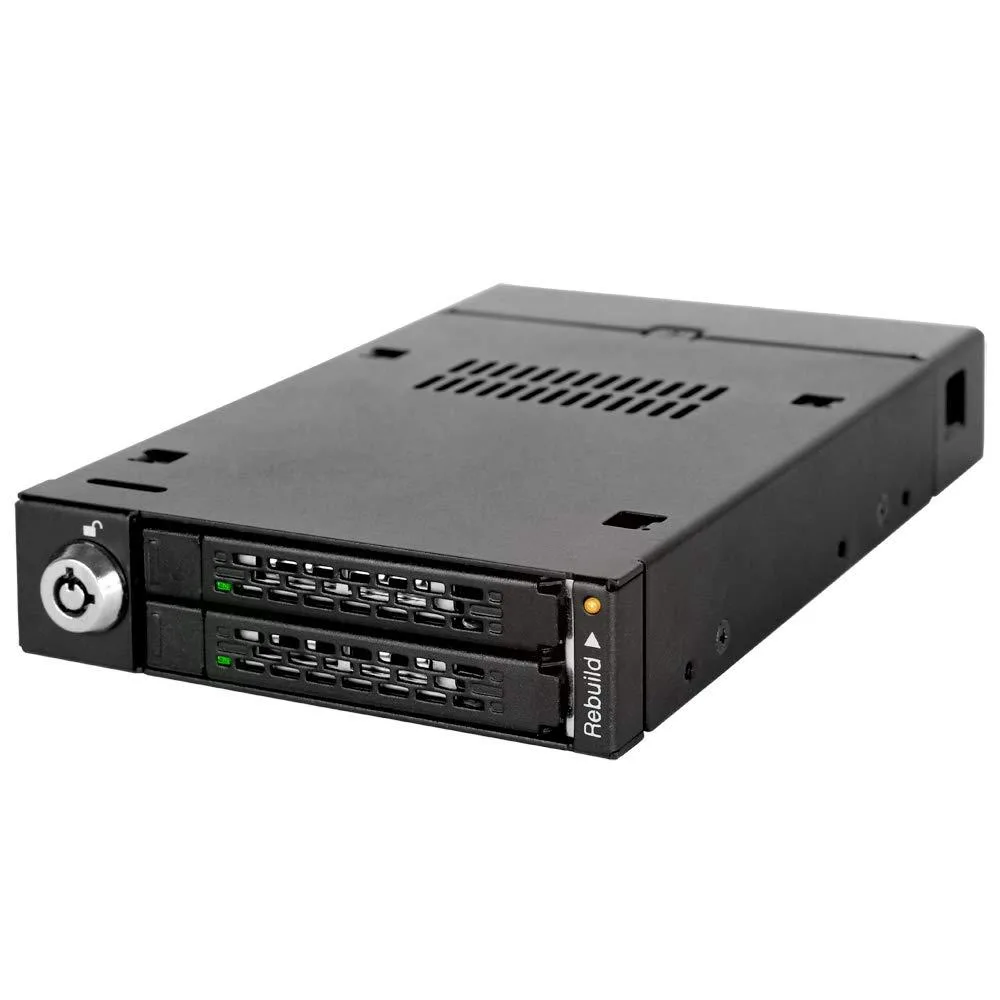

Metal dual-bay mobile rack for two 2.5 SATA drives in a 3.5 bay

LORDWORLD

LORDWORLD 2.5 SATA Dual Bay RAID Mobile Rack 3.5 Bay

SKU CH-TNE1-CA7X4

Holds two 2.5 SATA drives in a 3.5 bay with hardware RAID 0, 1, JBOD or BIG, SATA 6Gbps, hot-swap and LED status

  • Fits two 2.5 SATA drives in one 3.5 bay
  • Hardware RAID offers RAID 0, RAID 1, JBOD, BIG
  • SATA 6Gbps with hot-swap support
  • Front LEDs show power, access, fail, RAID 1 rebuild
  • Single 15-pin SATA powers both drives

Dual 2.5 SATA Bay for 3.5 Slot

This adapter fits two 2.5 SATA drives from 7 mm to 9.5 mm into a single 3.5 front device bay. It is designed for builders who want redundant or expanded storage without using extra bays. A built-in hardware RAID controller manages the array independently of the host system. The unit draws all power from a single SATA 15-pin connector.

RAID 0 1 JBOD BIG Upgrade Path

The integrated controller offers RAID 0 for speed, RAID 1 for mirroring, JBOD for independent volumes and BIG for spanning. This replaces single-drive cages or software RAID setups that lack hardware rebuild indication. The jump is worth it when you need hardware-managed redundancy or combined capacity with hot-swap support. Front LEDs show power, access, drive fail and RAID 1 rebuild status.

Tool-Free Install With Hot Swap

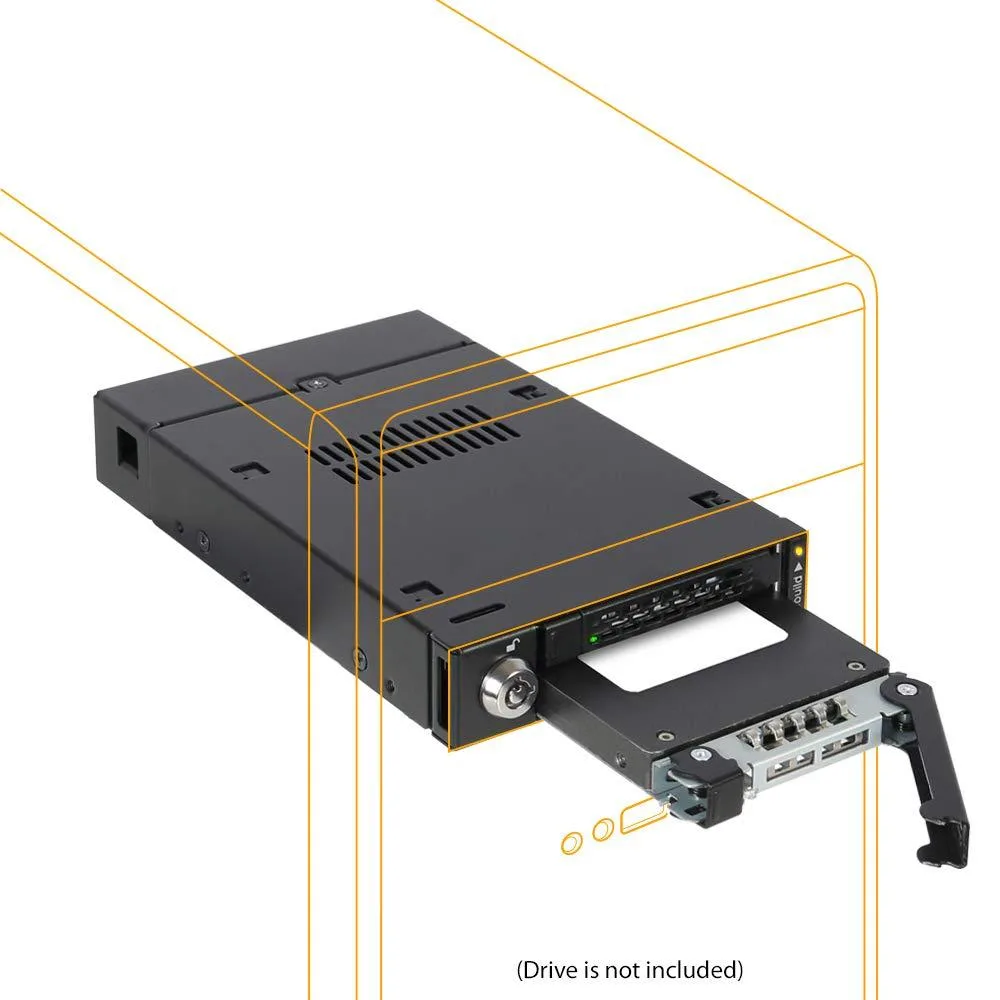

Drives slide into the front bays and lock without tools, enabling hot swap while the system runs. The metal frame mounts into any standard 3.5 bay using the case's own screws. A single SATA 15-pin cable powers both drives and the controller. The only common issue is forgetting to initialise the RAID mode before writing data, which requires a rebuild to change.

Highlights

  • Fits two 2.5 SATA drives in one 3.5 bay
  • Hardware RAID offers RAID 0, RAID 1, JBOD, BIG
  • SATA 6Gbps with hot-swap support
  • Front LEDs show power, access, fail, RAID 1 rebuild
  • Single 15-pin SATA powers both drives

Specifications

BrandLORDWORLD

Questions about this item

Will two 9.5 mm thick 2.5 SATA drives fit in a single 3.5 front bay?

Yes, the tray accepts two drives from 7 mm to 9.5 mm thick in one standard 3.5 bay.

How do I select RAID 1 and what step is often missed?

Set the rear mode switch to RAID 1 (SAFE) before powering on; the array will not mirror if the switch is changed after the drives spin up.

When a drive fails in RAID 1, how do I rebuild without downtime?

Hot-swap the faulty 2.5 drive; the front LED shows rebuild progress while the system stays online.
