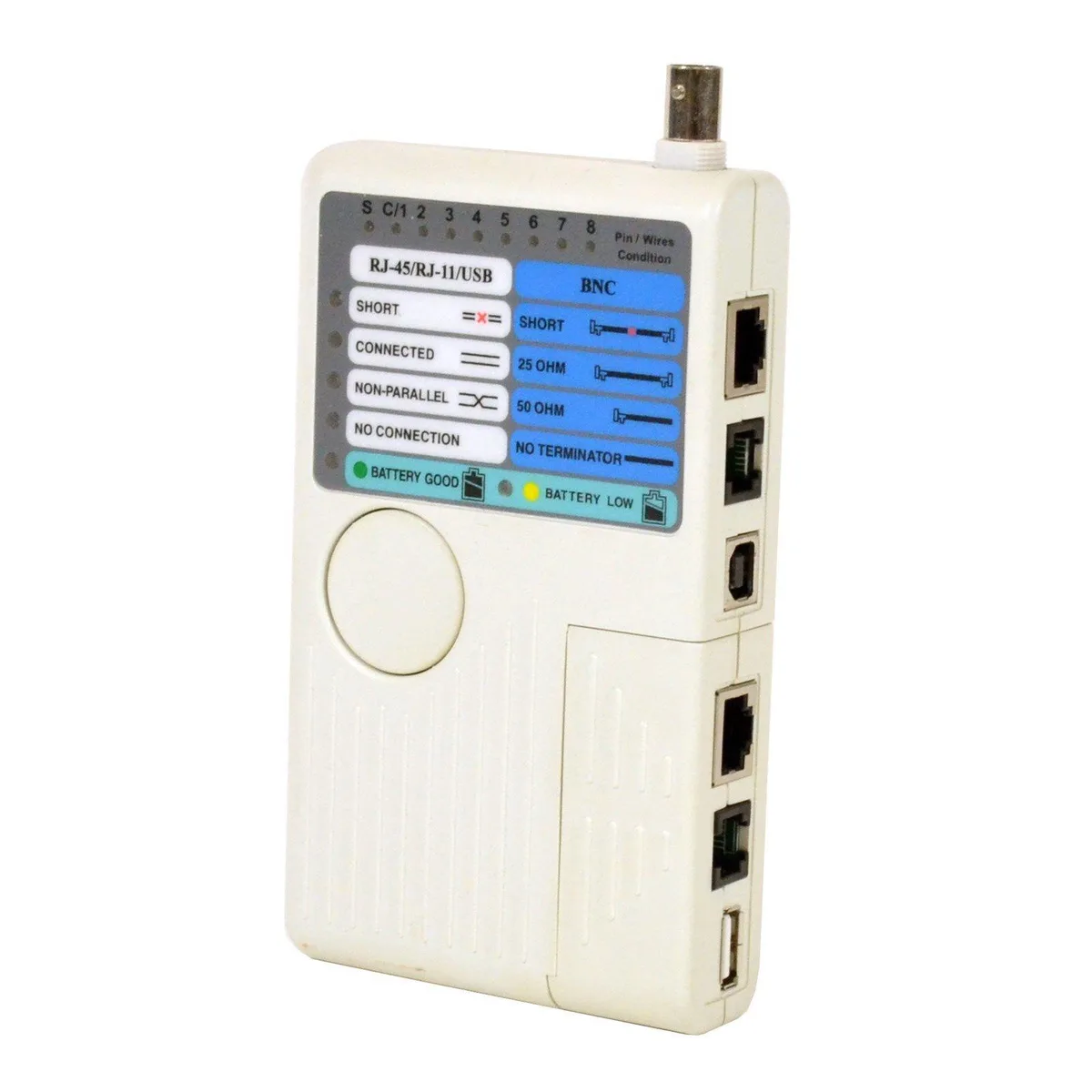

Logico palm-sized cable tester with RJ45 RJ11 USB BNC ports and detachable remote module

Logico

Logico Universal Network Cable Tester RJ45 RJ11 USB BNC 4-in-1

SKU CH-C1MF-TSG39

Tests RJ45, RJ11, USB and BNC cables with a detachable remote module, LED results and automatic power-off

  • Tests four cable types with one compact tool
  • Detachable remote module checks installed runs up to 600 ft
  • LED matrix shows open, short, crossover and termination faults instantly
  • Auto power-off extends the 9 V battery life
  • FCC and CE Class B certified for office-safe emissions

Universal Cable Tester 4-in-1

The Logico tester checks RJ45, RJ11, USB and BNC cables in a single palm-sized unit. Installers and IT technicians use it to verify patch leads, telephone wiring, USB links and coaxial runs before or after installation. A detachable remote module lets one person test both ends of a fixed cable run.

Detachable Remote and Gold-Plated Ports

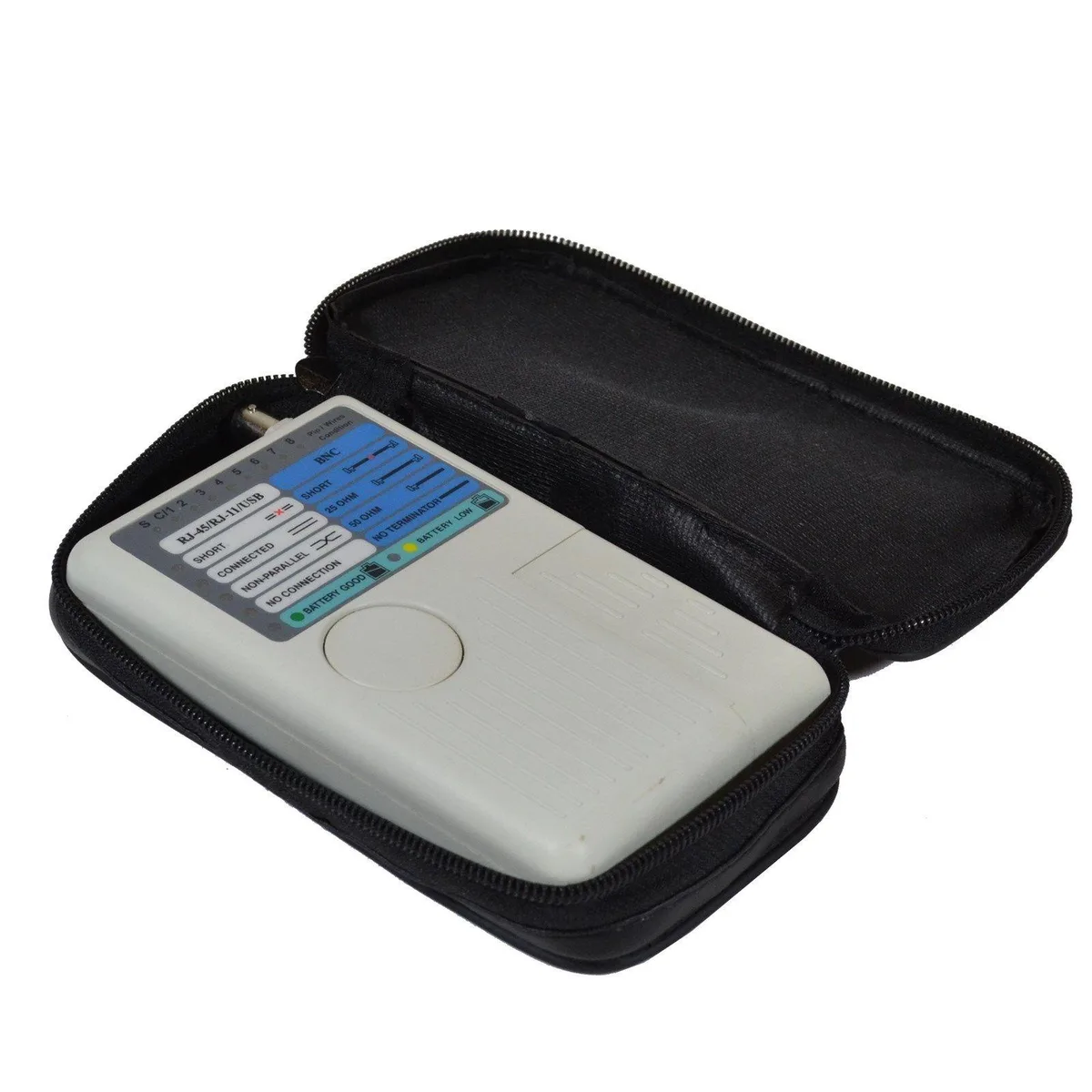

The remote module separates from the main body so the far end of an installed cable can be tested without a second operator. RJ45 and RJ11 ports are gold plated for reliable contact. The unit fits in a supplied carrying bag and powers down automatically when idle. A 9 V alkaline battery is required but not supplied.

Maximum Test Length 600 ft

Cable runs up to 600 ft can be checked for opens, shorts, miswires and crossover faults across all supported connector types. LEDs show wiring status, termination values of 25 Ohm or 50 Ohm, and non-parallel connections. The tester does not certify bandwidth or measure signal quality beyond continuity and wiring map.

Highlights

  • Tests four cable types with one compact tool
  • Detachable remote module checks installed runs up to 600 ft
  • LED matrix shows open, short, crossover and termination faults instantly
  • Auto power-off extends the 9 V battery life
  • FCC and CE Class B certified for office-safe emissions

Specifications

BrandLogico

Questions about this item

Which connector types does the Logico 4-in-1 tester support for cable verification?

It tests RJ45, RJ11, USB and BNC cables, covering Ethernet, telephone, USB and coaxial links in one unit.

What physical clearance is required to store or carry the tester and its detachable remote module?

The main unit measures 143mm x 85mm x 25mm and weighs 175g; it ships with a carrying bag that holds both halves.

How do you power the tester on and run a single test without missing the automatic shut-off behaviour?

Insert a 9V alkaline battery, connect the cable at both ends, press the single test button once, and read the LEDs before the unit powers itself down after inactivity.
