Logico 12-port Cat6 wall-mount patch panel with 110 IDC punch-down terminals

Logico

Logico PNL6EU12W Cat6 12 Port Patch Panel 110 IDC Wall Mount

SKU CH-KBC4-C4X3W

A 12-port Cat6 patch panel with 110 IDC termination for 23 to 26 AWG wire, T568A/B wiring, 50 micron gold contacts and ETL listing

  • 12 ports organise patch cables in a compact wall-mount panel
  • 110 IDC punch-down terminations secure solid or stranded conductors
  • T568A and T568B wiring schemes supported on every port
  • 50-micron gold-plated contacts maintain low-resistance connections
  • ETL-listed design meets EIA/TIA Cat6 performance requirements

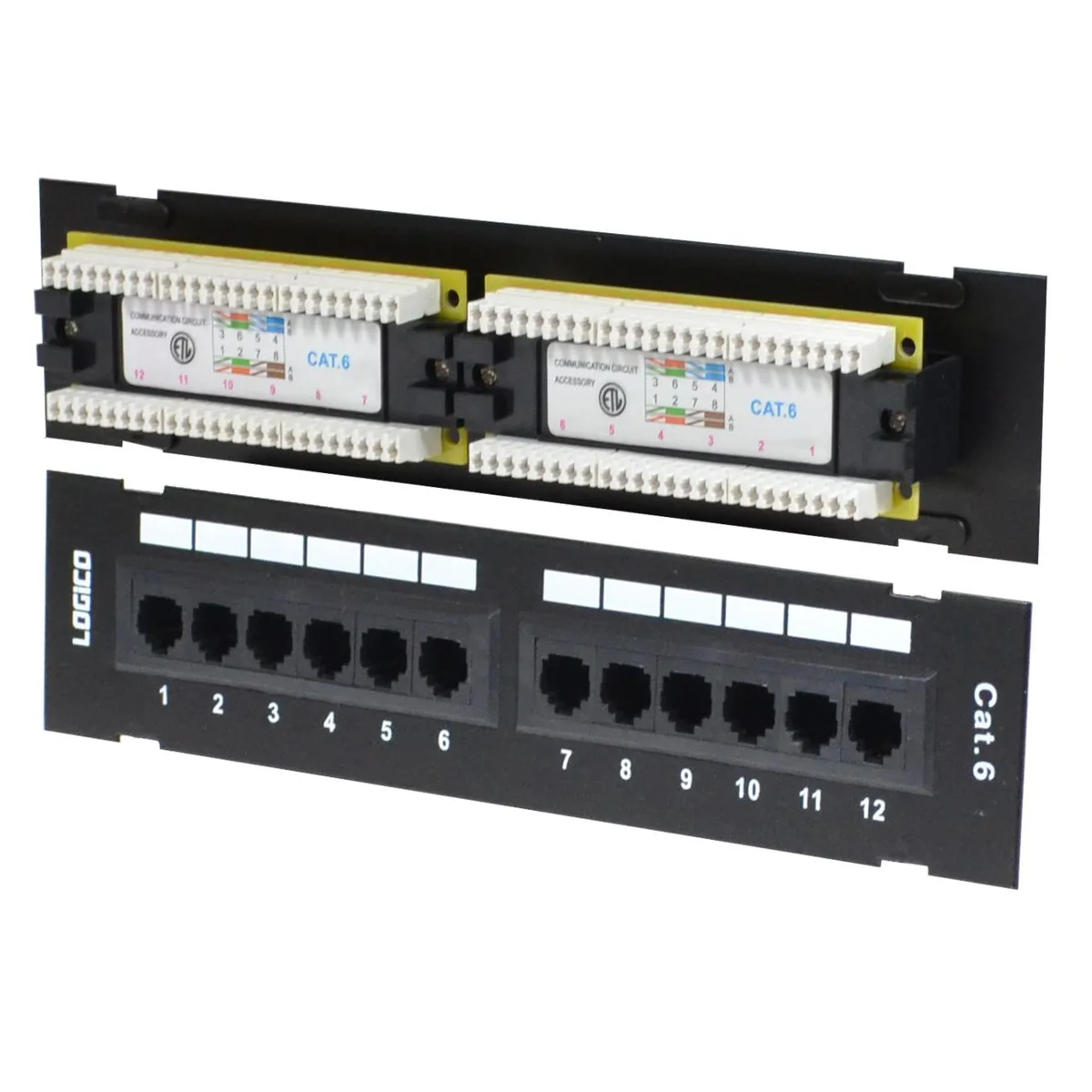

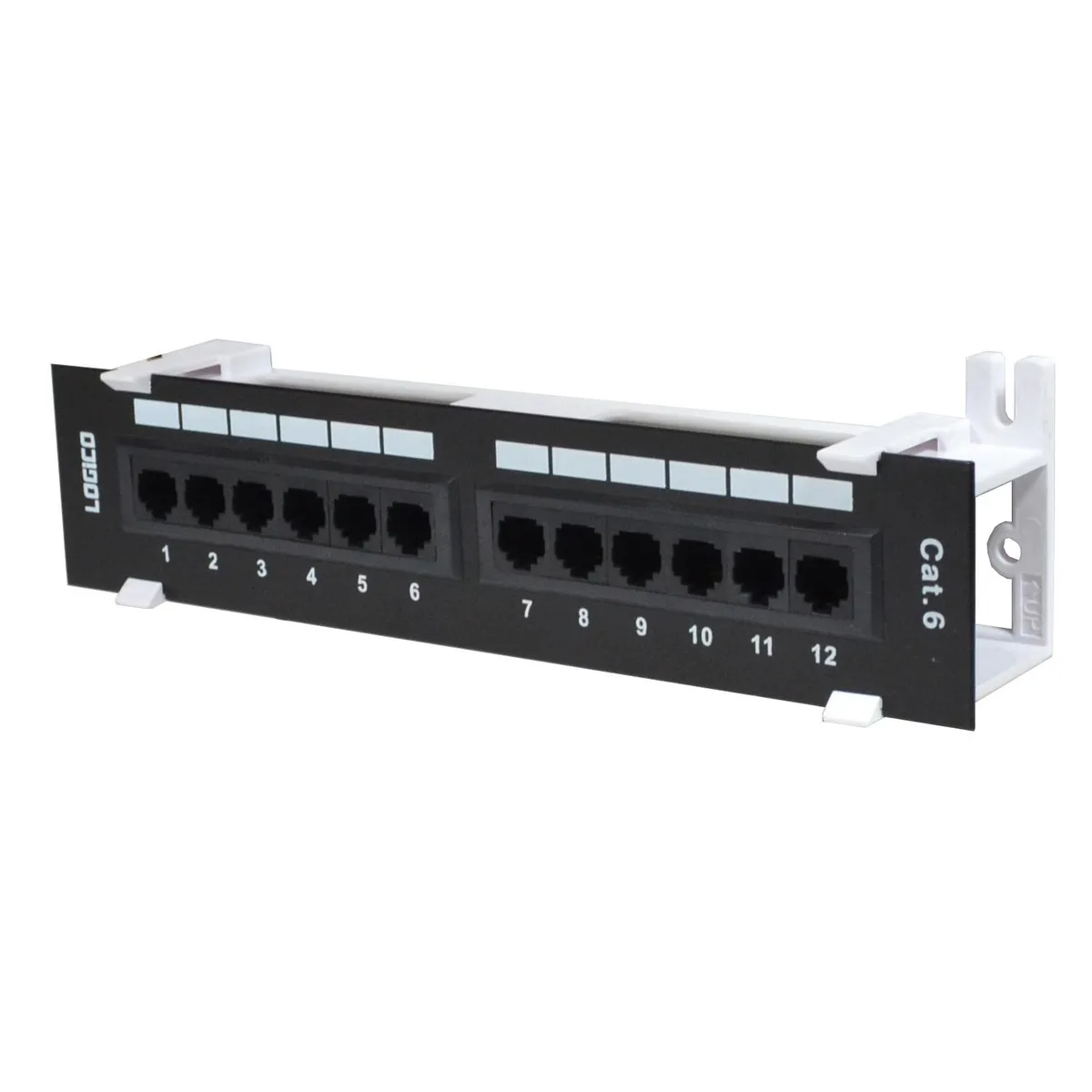

12-Port Cat6 Wall-Mount Patch Panel

The Logico PNL6EU12W is a 12-port UTP Cat6 patch panel designed for wall mounting. It uses 110 IDC punch-down termination for solid conductor cables. The panel supports both TIA/EIA T568A and T568B wiring schemes. It meets or exceeds all EIA/TIA standards for Cat6 performance and carries an ETL listing.

Verify Cable Gauge and Wiring Standard

Before ordering, confirm that your installation uses solid conductor cable between 23 and 26 AWG. The 110 IDC terminals are sized for this gauge range only. You must also decide which wiring scheme, T568A or T568B, matches the existing infrastructure at both ends of the link.

Gold-Plated Contacts and Surface Bracket

Contacts feature 50 microns of gold plating to resist corrosion and maintain low resistance over repeated mating cycles. The included surface-mount bracket allows direct attachment to a wall or backboard without a rack cabinet. The compact 12-port density suits small offices, home labs, or remote equipment closets where space is limited.

Highlights

  • 12 ports organise patch cables in a compact wall-mount panel
  • 110 IDC punch-down terminations secure solid or stranded conductors
  • T568A and T568B wiring schemes supported on every port
  • 50-micron gold-plated contacts maintain low-resistance connections
  • ETL-listed design meets EIA/TIA Cat6 performance requirements

Specifications

BrandLOGICO
ModelPNL6EU12W

Questions about this item

What comes with the 12-port patch panel and what must be purchased separately?

The panel includes a surface wall-mount bracket and 110 IDC termination blocks for 12 ports. Ethernet cable, a punch-down tool, and any rack or cabinet hardware are not included.

Which wiring scheme should I select for the T568A and T568B options on this panel?

Both T568A and T568B colour codes are printed on the panel. Choose the scheme that matches the rest of your installation; either one meets the Cat6 standard.

What does the 50-micron gold plating on the contacts mean for daily use?

The 50-micron gold layer resists corrosion and maintains low contact resistance over many insertion cycles, keeping Cat6 performance stable in a permanent installation.
