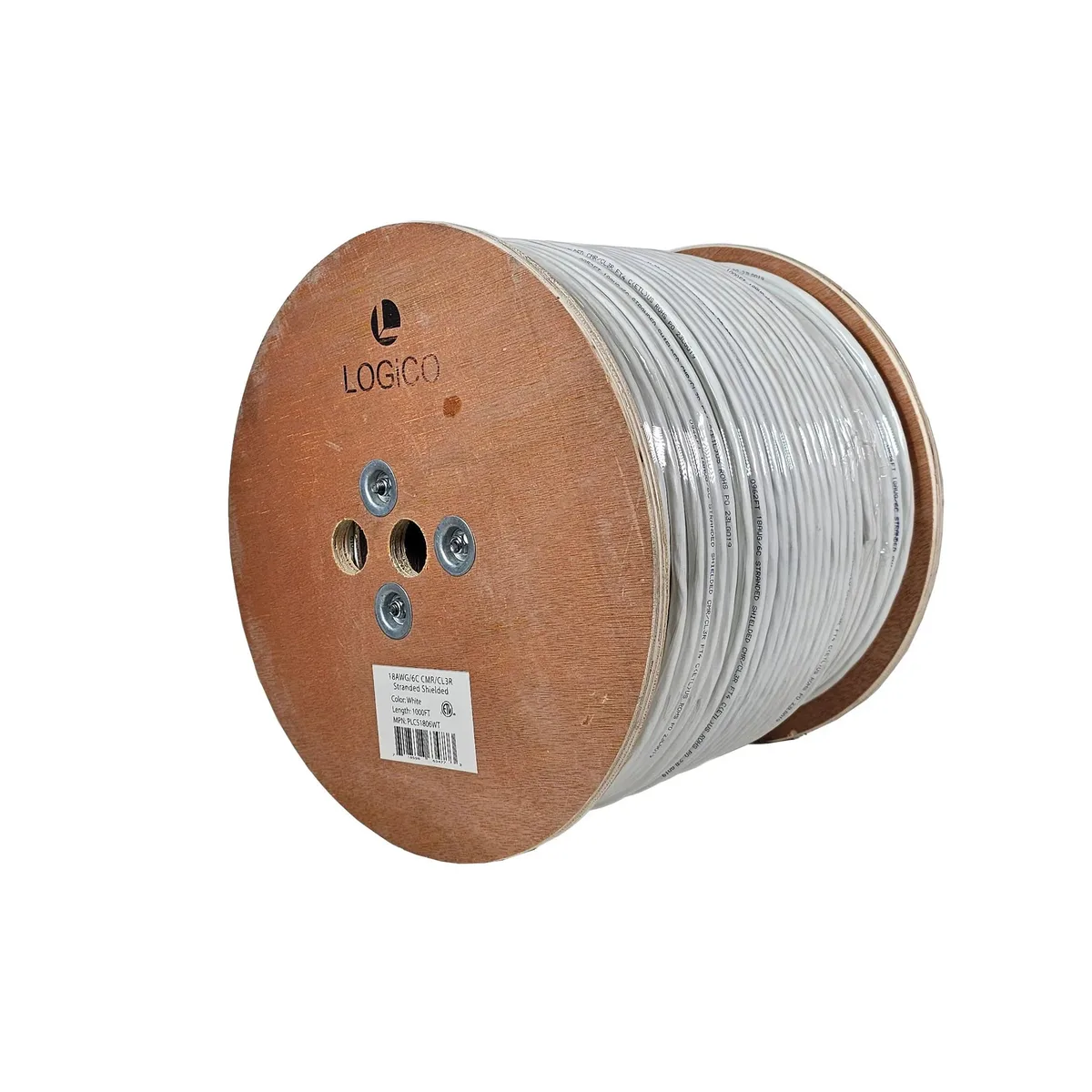

White 18/6 shielded security cable on wooden reel 1000ft 305m

Logico

Logico PLCS1806WT 18/6 Shielded Security Cable 1000ft 305m White

SKU CH-8P0V-WZH2N

Shielded 18/6 stranded bare-copper cable on a 1000 ft (305 m) wooden reel, CMR/CL3R rated for security, access control and low-voltage sensor runs

  • TypeSecurity & Motion
  • ColorWhite
  • Shielded 18/6 construction reduces interference in security runs
  • 18 AWG stranded bare copper conductors carry low-voltage signals reliably
  • CMR CL3R rating permits in-wall installation for alarm circuits
  • 1000 foot wooden reel supplies 305 metres for whole-home wiring
  • White jacket blends with ceilings and trim for clean finishes

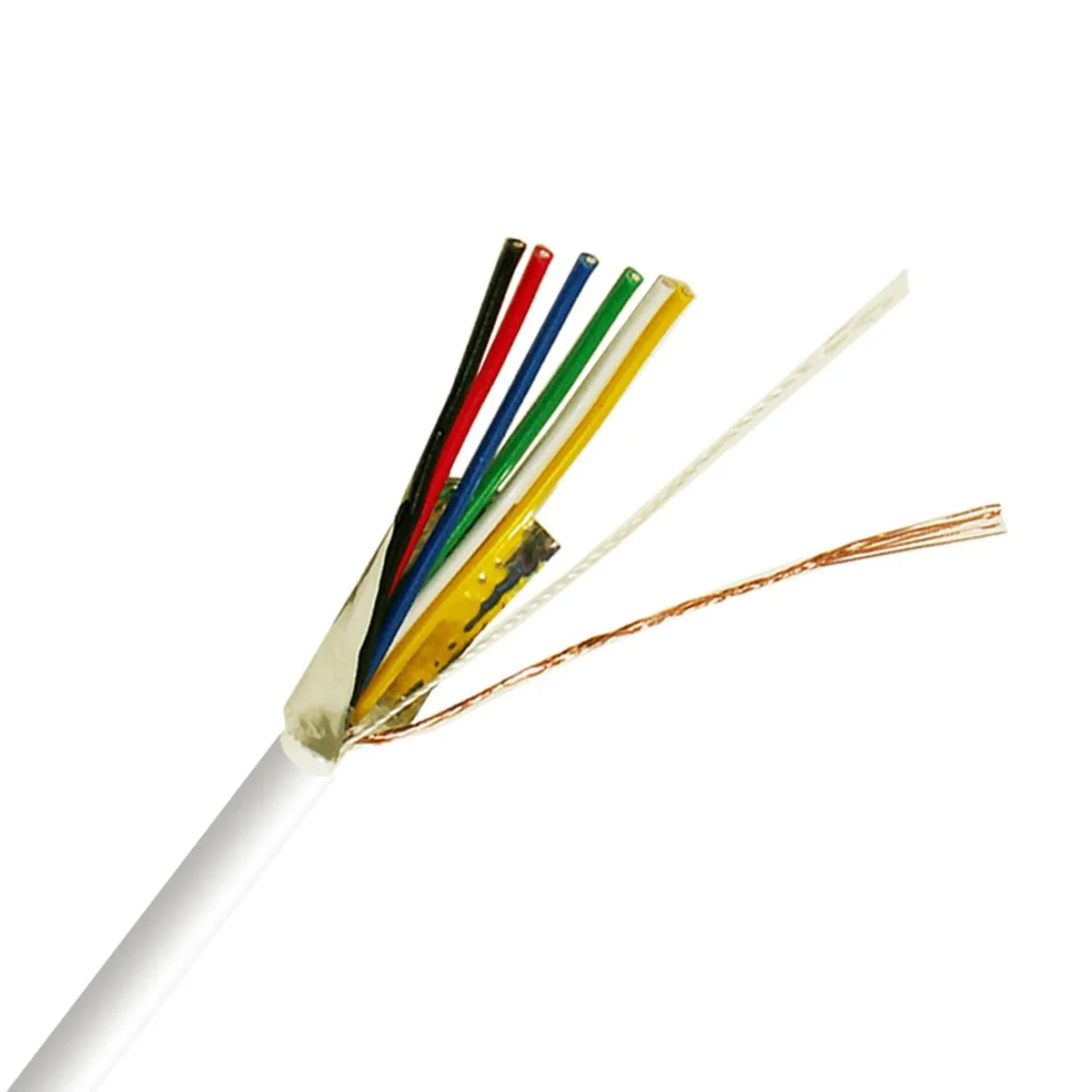

18/6 Shielded Security Cable

The Logico PLCS1806WT is an 18 AWG six-conductor shielded cable built for low-voltage security and access-control installations. It suits installers wiring door contacts, motion detectors, keypads or LED lighting runs where a single pull carries multiple circuits.

CMR CL3R rating limits use to in-wall vertical runs

The cable carries a CMR and CL3R rating, so it is approved for riser spaces and power-limited circuits inside walls. It is not rated for plenum air-handling spaces, direct burial or outdoor exposure, so routing must stay within those code-defined boundaries.

1806 stranded bare copper conductors decide fit

Each of the six conductors uses stranded bare copper at 18 AWG, giving the flexibility needed for tight terminations on alarm panels and sensor terminals. Solid-conductor cable will not terminate as reliably on the same screw-down or push-in connectors.

Highlights

  • Shielded 18/6 construction reduces interference in security runs
  • 18 AWG stranded bare copper conductors carry low-voltage signals reliably
  • CMR CL3R rating permits in-wall installation for alarm circuits
  • 1000 foot wooden reel supplies 305 metres for whole-home wiring
  • White jacket blends with ceilings and trim for clean finishes

Specifications

BrandLOGICO
ModelPLCS1806WT
TypeSecurity & Motion
ColorWhite

Questions about this item

Should I choose the 1000ft reel or a shorter length for my security installation?

The PLCS1806WT comes on a 1000ft wooden reel, which equals 305 meters; buy the full reel if your cable runs total that distance or more.

What does the 18/6 rating mean when I terminate the cable at a panel?

18/6 indicates 18AWG conductors with six individual strands, giving you six separate circuits for sensors, keypads or motion detectors in one pull.

How do the CMR and CL3R markings limit where I can run this cable?

CMR means the jacket passes the riser flame test for vertical shafts, and CL3R rates the cable for Class 3 power-limited circuits in those same spaces.
