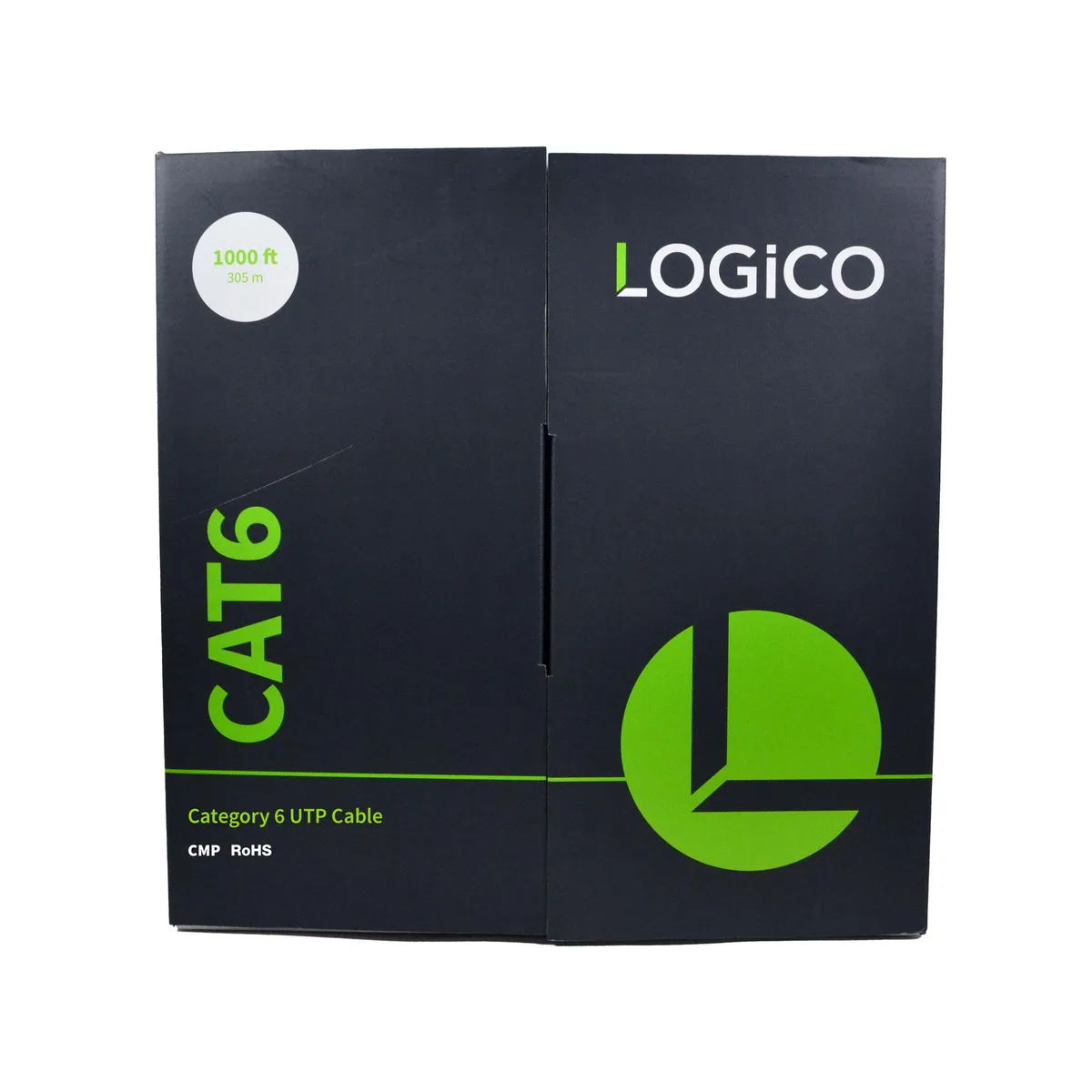

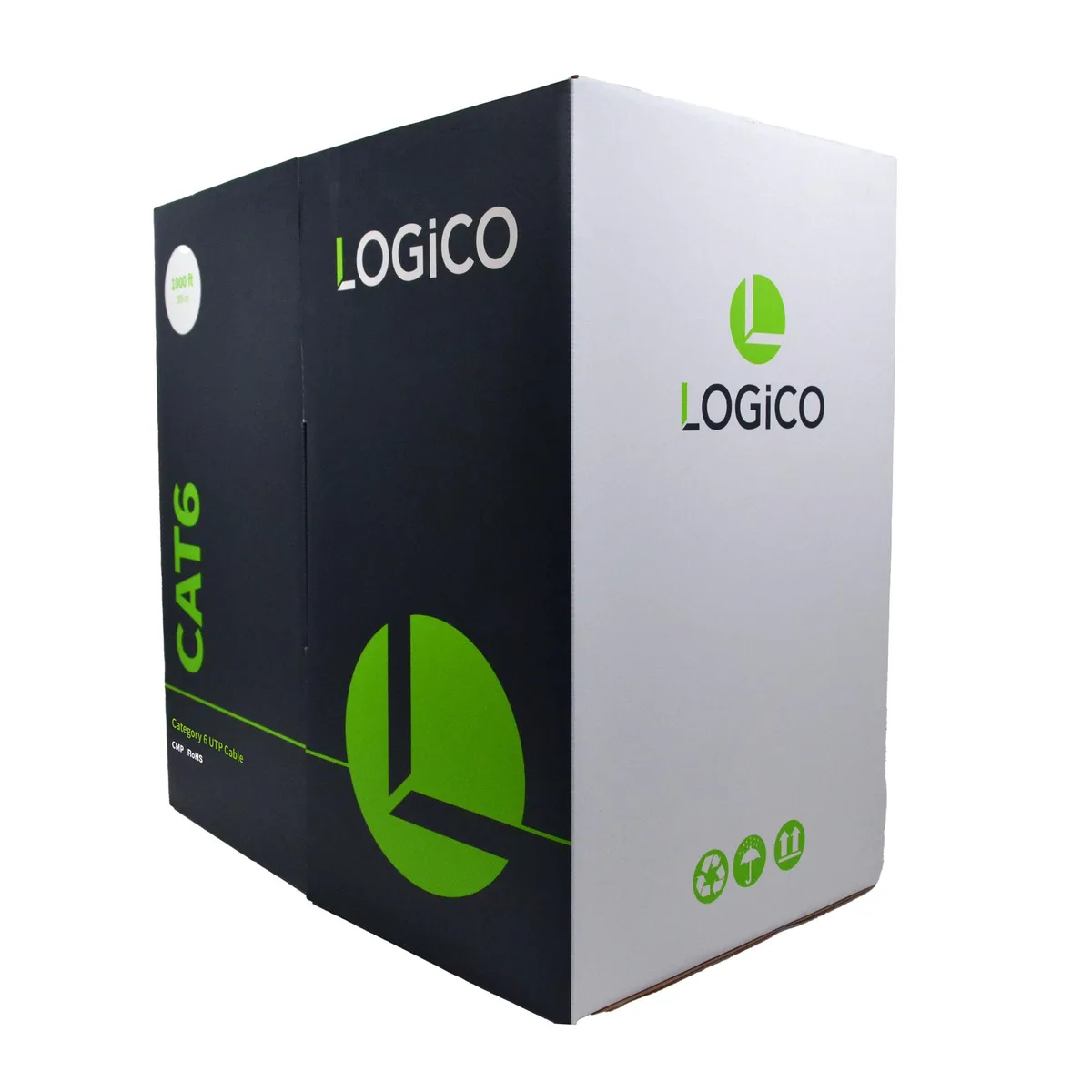

Blue Cat6 plenum cable in 1000ft pull box

Logico

Logico C6EU2703 network ethernet cable Cat6 plenum 23AWG 550MHz 1000ft

SKU CH-R752-HD2JN MPN C6EU2703

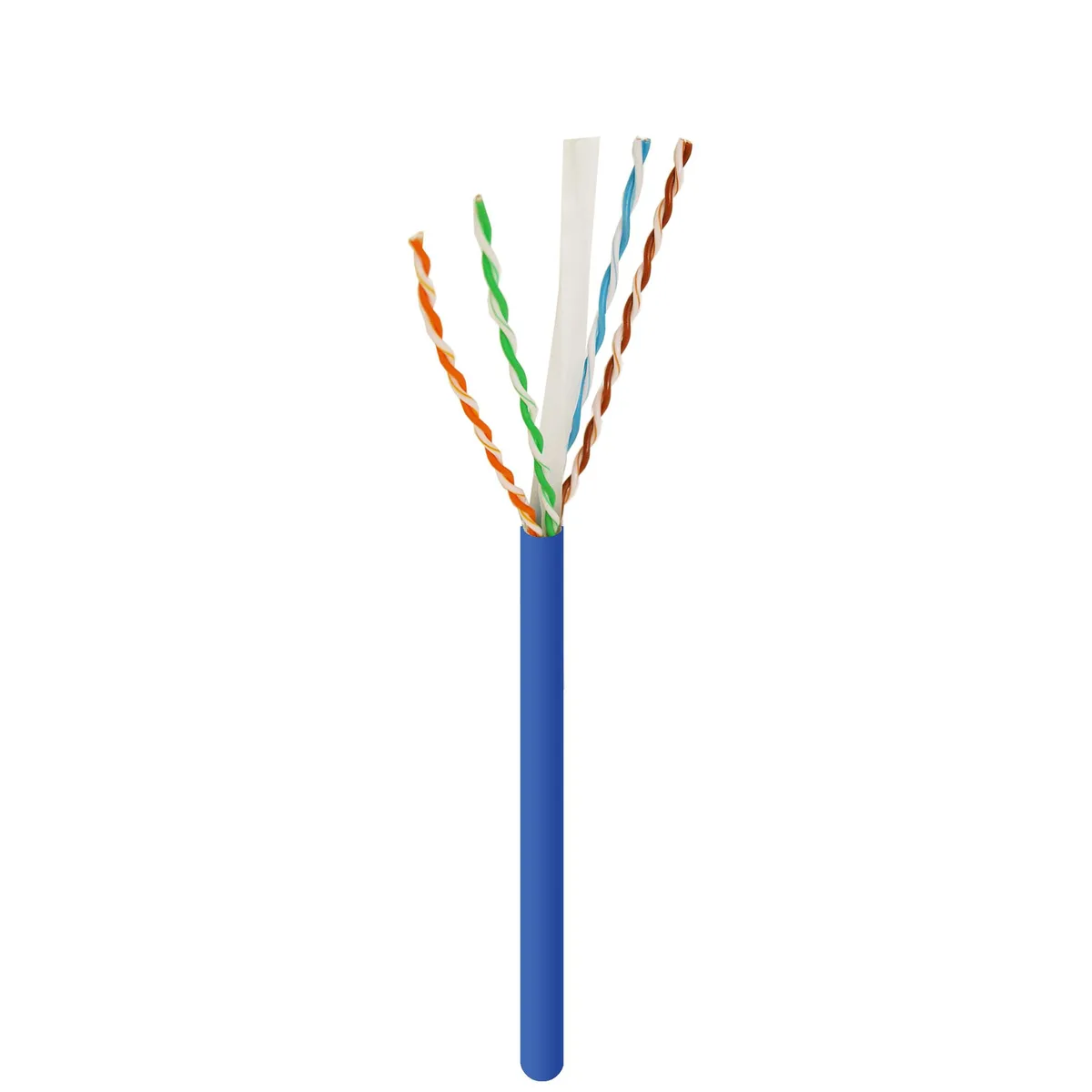

Cat6 plenum-rated Ethernet cable with 23 AWG solid bare copper conductors, 550 MHz bandwidth and 1,000 ft pull-box for in-wall runs

  • TypeOthers
  • Plenum-rated CMP jacket suits air-handling spaces with low-smoke FR polymer
  • 23 AWG solid bare copper conductors minimise resistance for reliable signal
  • EIA/TIA 568 compliant Cat6 rated to 550 MHz for high-speed Ethernet
  • 1,000 ft pull box provides 305 m of continuous cable for large installs
  • Blue colour coding simplifies identification in structured cabling systems

Cat6 Plenum Cable 1000 ft

The Logico C6EU2703 is a Category 6 plenum-rated Ethernet cable supplied in a 1000-foot pull box. It uses 23 AWG solid bare copper conductors with FEP insulation and a flame-retardant jacket. The cable meets EIA/TIA 568 standards and is rated to 550 MHz for high-performance networks. It carries UL or ETL verification for plenum spaces.

Suited for plenum installations

This cable is designed for voice, data, video and security runs in air-handling spaces where low-smoke, low-flame materials are required. The solid conductors and unshielded twisted-pair construction support standard Cat6 termination. It is not suited for applications that demand shielded cable, outdoor burial rating or stranded conductors for repeated flexing.

550 MHz headroom and 1000 ft length

The 550 MHz rating provides headroom above the base Cat6 specification for gigabit and multi-gigabit links. The 1000-foot / 305-meter reel covers long horizontal runs without splices. Performance drops when runs exceed the standard channel length or when connectors are poorly terminated, so installers should verify the final link certification.

Highlights

  • Plenum-rated CMP jacket suits air-handling spaces with low-smoke FR polymer
  • 23 AWG solid bare copper conductors minimise resistance for reliable signal
  • EIA/TIA 568 compliant Cat6 rated to 550 MHz for high-speed Ethernet
  • 1,000 ft pull box provides 305 m of continuous cable for large installs
  • Blue colour coding simplifies identification in structured cabling systems

Specifications

BrandLogico
TypeOthers
Shipping weight17.24 kg
Package size351 × 343 × 277 mm

Questions about this item

What type of keystone jack or patch panel do I need for this 23AWG solid copper cable?

Use Category 6 rated keystones or patch panels with IDC slots designed for 23AWG solid conductors to maintain the 550MHz performance.

Can I run this CMP plenum cable alongside older Cat5e patch cords in the same network?

Yes, the cable is backwards compatible; the link will negotiate to the lowest category present, so Cat5e cords will limit that segment to 100MHz.

How do I verify the installed cable meets the 550MHz rating?

Test each run with a Category 6 qualified cable analyser and confirm it passes all TIA/EIA-568 Category 6 parameters up to 550MHz.
