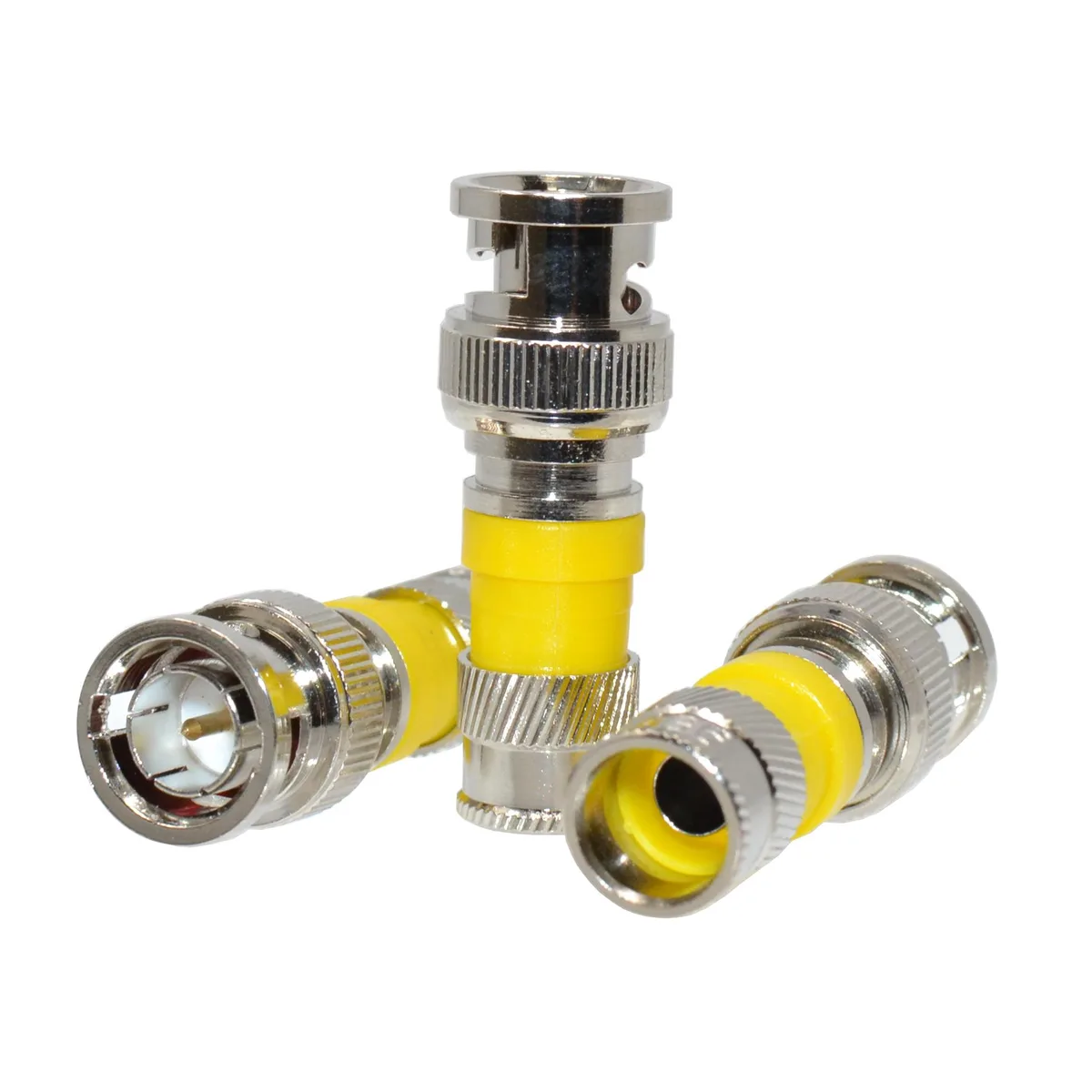

Twenty nickel-plated BNC compression connectors with gold centres in a pack

Logico

Logico BNC Compression Connector RG6 Quad Shield 20 Pack

SKU CH-QBG5-JQ7BY

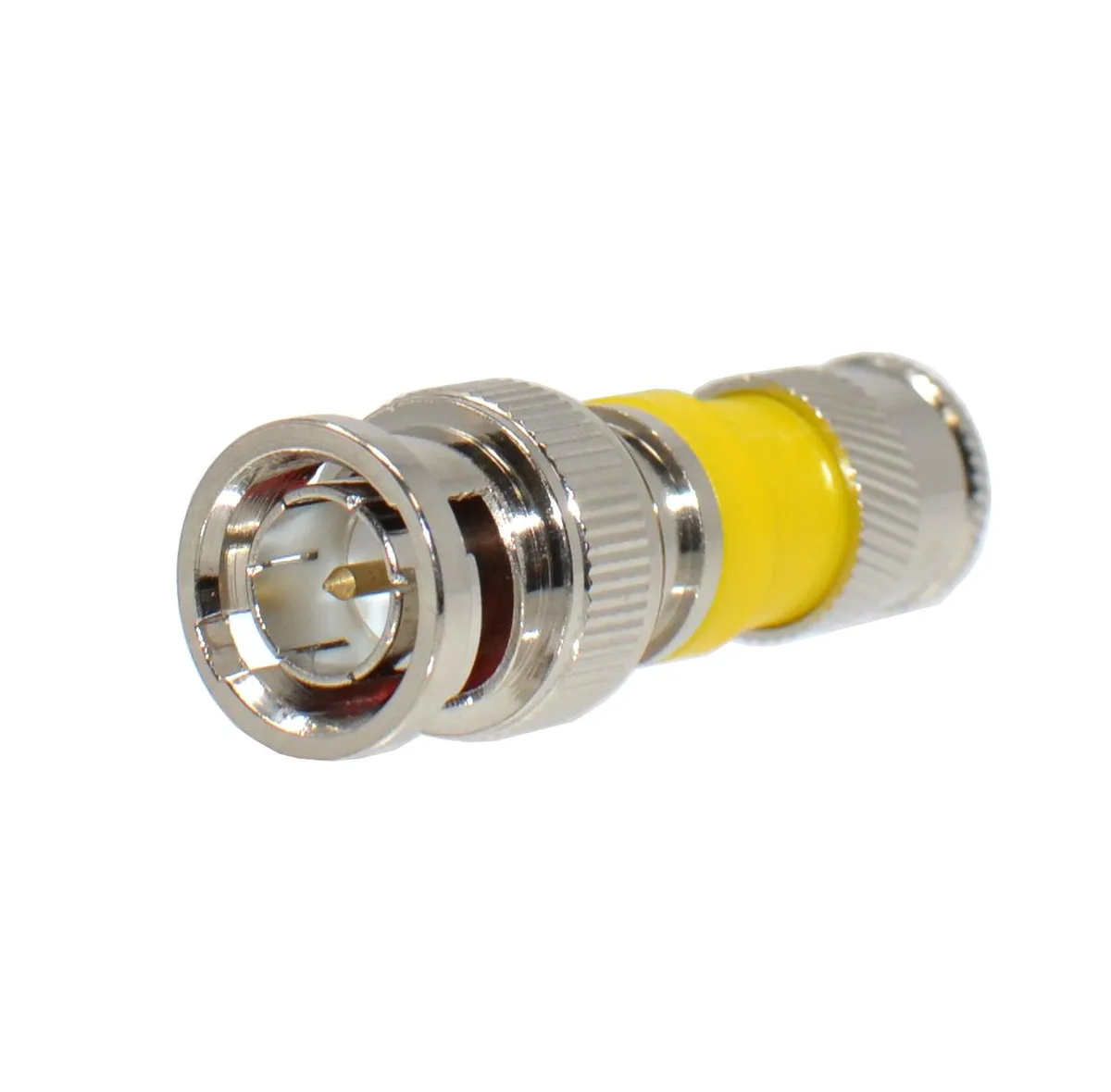

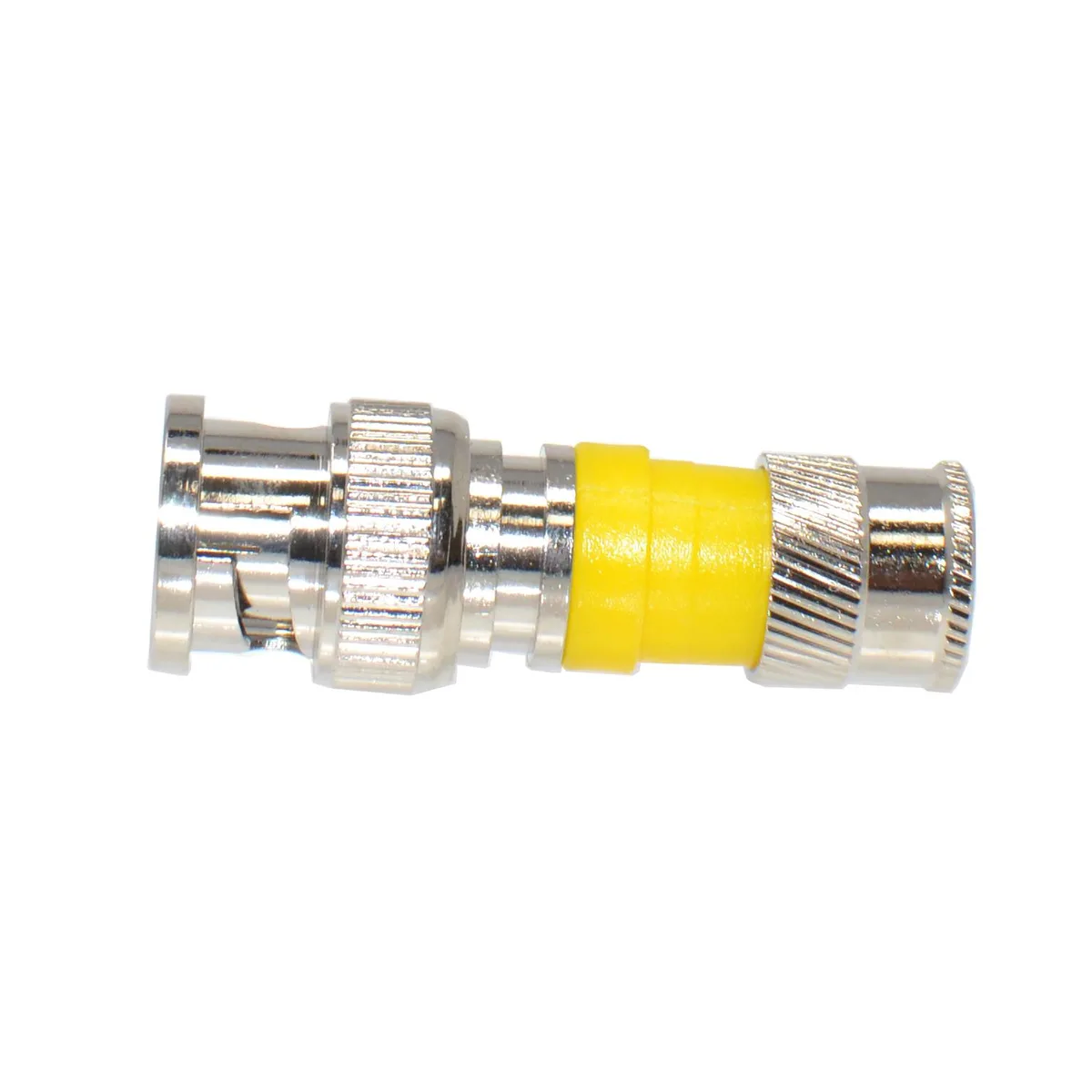

A pack of 20 BNC compression connectors built for RG6 quad-shield coax with nickel-plated brass bodies, Teflon insulators, gold-plated centre contacts and a 75 ohm impedance rated to 3 GHz

  • TypeConnector
  • 20-pack supply simplifies large CCTV installs
  • RG6 Quad Shield fit ensures reliable compression seal
  • Gold-plated centre contacts maintain clean 75 Ohm signal path
  • Nickel-plated brass body resists corrosion in long runs
  • Teflon insulators support 0-3 GHz bandwidth for HD video

20-Pack BNC Compression Connectors

This pack supplies twenty RG6 quad-shield BNC compression connectors for CCTV and security-camera installations. The brass-and-nickel alloy bodies with gold-plated centre contacts maintain 75 Ohm impedance across a 0-3 GHz range. Installers running coaxial video or RF links get a consistent, professional termination every time.

Installation notes

A dedicated compression tool is required to crimp each connector onto RG6 quad-shield cable; standard crimp pliers will not seat the ferrule correctly. Stripping the jacket, braid and dielectric to the tool's specified lengths prevents shorts and signal loss. Over-compression can deform the Teflon insulator, while under-compression leaves the shield exposed to moisture.

Capacity and headroom

Twenty connectors terminate up to twenty cable runs, covering most small-to-medium camera deployments. The 75 Ohm design handles baseband video, HD-SDI and broadband RF up to 3 GHz without measurable reflection. Runs exceeding the connector's frequency rating or using non-quad-shield cable will fall outside the specified performance envelope.

Highlights

  • 20-pack supply simplifies large CCTV installs
  • RG6 Quad Shield fit ensures reliable compression seal
  • Gold-plated centre contacts maintain clean 75 Ohm signal path
  • Nickel-plated brass body resists corrosion in long runs
  • Teflon insulators support 0-3 GHz bandwidth for HD video

Specifications

TypeConnector

Questions about this item

How can I confirm the BNC compression connectors are working correctly after installation?

Use a cable tester or signal meter to verify continuity and 75 Ohm impedance across each connector; a clean compression crimp with no exposed braid indicates proper termination.

What is included in the package and what additional items are required?

The pack contains 20 BNC compression connectors with nickel-plated alloy bodies, Teflon insulators, and gold-plated center contacts; you will need RG6 Quad Shield coaxial cable and a compression crimp tool.

Which connector version should I choose for my RG6 Quad Shield cable?

These connectors are specifically designed for RG6 Quad Shield cable operating up to 3 GHz at 75 Ohm, matching the stated specifications.
