Linksys

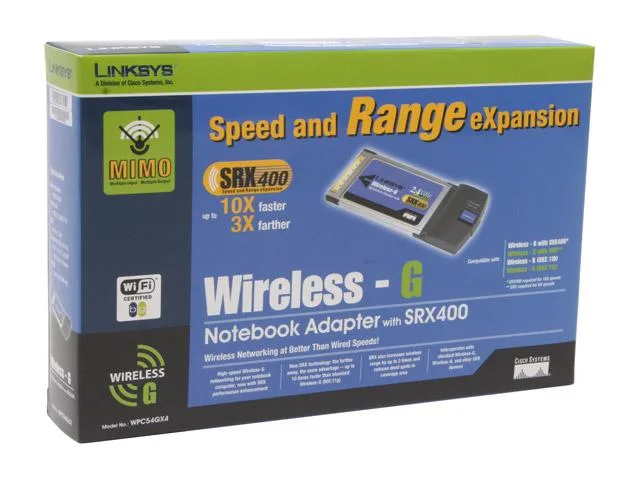

Linksys WPC54GX4 Wireless-G CardBus Adapter 240Mbps
CardBus adapter delivers 240 Mbps Wireless-G connectivity with MIMO smart-antenna technology for extended range and reduced dead spots
- Type802.11b/g CardBus Wireless Adapter
- StandardsIEEE802.11b/g
- Max Data Rates240Mbps
- LEDsPower, Link
- Interface32bit CardBus
- SecurityWPA, WPA2, IEEE 802.1x, 64/128-Bit WEP
- 240 Mbps peak throughput via dual-radio MIMO design
- Stronger signal reaches up to three times standard Wireless-G range
- WPA2 and 128-bit WEP keep data secure on open networks
- 32-bit CardBus interface installs in any compatible laptop slot
- Works with Windows 2000 and XP out of the box
Product identity
The Linksys WPC54GX4 is a CardBus wireless adapter that brings 802.11b/g connectivity to notebooks through a 32-bit slot. It targets owners of older laptops running Windows 2000 or XP who need a simple way to join existing wireless networks.
Interface limits
The adapter plugs into a 32-bit CardBus slot and tops out at 240 Mbps using proprietary ACE compression on top of the 802.11g baseline. Real-world throughput will fall well below that peak, and the hardware cannot connect to 802.11n, ac or ax networks.
Capacity and headroom
The card supports WPA, WPA2, 802.1x and 64/128-bit WEP encryption for secured networks. MIMO antenna diversity extends usable range up to three times farther than a single-radio 802.11g device, but the 240 Mbps link rate is a theoretical maximum that typical conditions will not sustain.
Highlights
- 240 Mbps peak throughput via dual-radio MIMO design
- Stronger signal reaches up to three times standard Wireless-G range
- WPA2 and 128-bit WEP keep data secure on open networks
- 32-bit CardBus interface installs in any compatible laptop slot
- Works with Windows 2000 and XP out of the box
Specifications
| Brand | LINKSYS |
|---|---|
| Model | WPC54GX4 |
| Type | 802.11b/g CardBus Wireless Adapter |
| Standards | IEEE802.11b/g |
| Max Data Rates | 240Mbps |
| LEDs | Power, Link |
| Interface | 32bit CardBus |
| Security | WPA, WPA2, IEEE 802.1x, 64/128-Bit WEP |
| Modulation | 802.11b: CCK, QPSK, BPSK 802.11g: OFDM |
| Transmitted Power | 20dBm for Wireless-B/14dBm for Wireless-G |
| Operating Systems Supported | Microsoft Windows 2000 or XP |
| System Requirements | Available PC Card Slot CD-ROM Drive Microsoft Windows 2000 or XP |
| Temperature | 0ºC to 60ºC |
| Humidity | 15% to 95% |
| Features | Complies with IEEE 802.11g Standards, and Backwards Compatible with IEEE 802.11b Products Enhanced Speed using Adaptive Channel Expansion (ACE) for "Good Neighbor" Interoperability |
| Dimensions | 4.8" x 2.1" x 0.4" |
| Weight | 0.11 lbs. |
| Package Contents | WPC54GX4 Resource Disk Manual |
| Shipping weight | 0.91 kg |
| Package size | 234 × 155 × 43 mm |
Questions about this item
Which capacity or version of the WPC54GX4 should I choose?
The WPC54GX4 is offered as a single 240Mbps Wireless-G CardBus adapter; there are no alternative capacities or versions to select.
What does the 240Mbps headline figure mean once the card is installed in my laptop?
The 240Mbps rate is achieved by overlaying two Wireless-G radios using MIMO technology; actual throughput will be lower and depends on signal quality, distance and interference.
What does the 32-bit CardBus interface cap in practice?
The 32-bit CardBus slot provides ample bandwidth for the adapter's 240Mbps maximum data rate, so the wireless link remains the limiting factor.
