HDMI extender kit with one transmitter and six receivers, compact black units

Lenkeng Technology Co,. Ltd

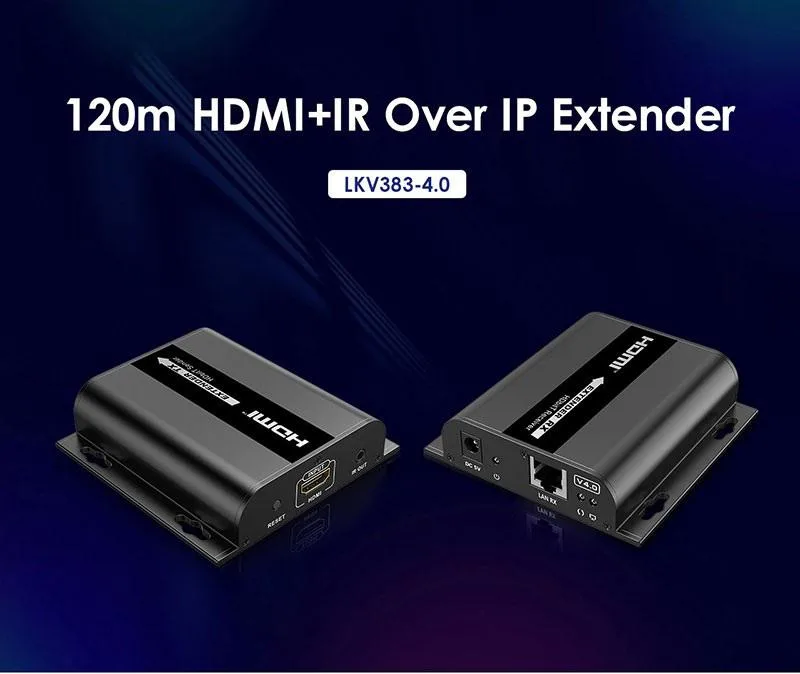

Lenkeng Technology Co,. Ltd LKV383 V4.0 1 TX 6 RX HDMI extender kit

SKU CH-5VDK-36B8E

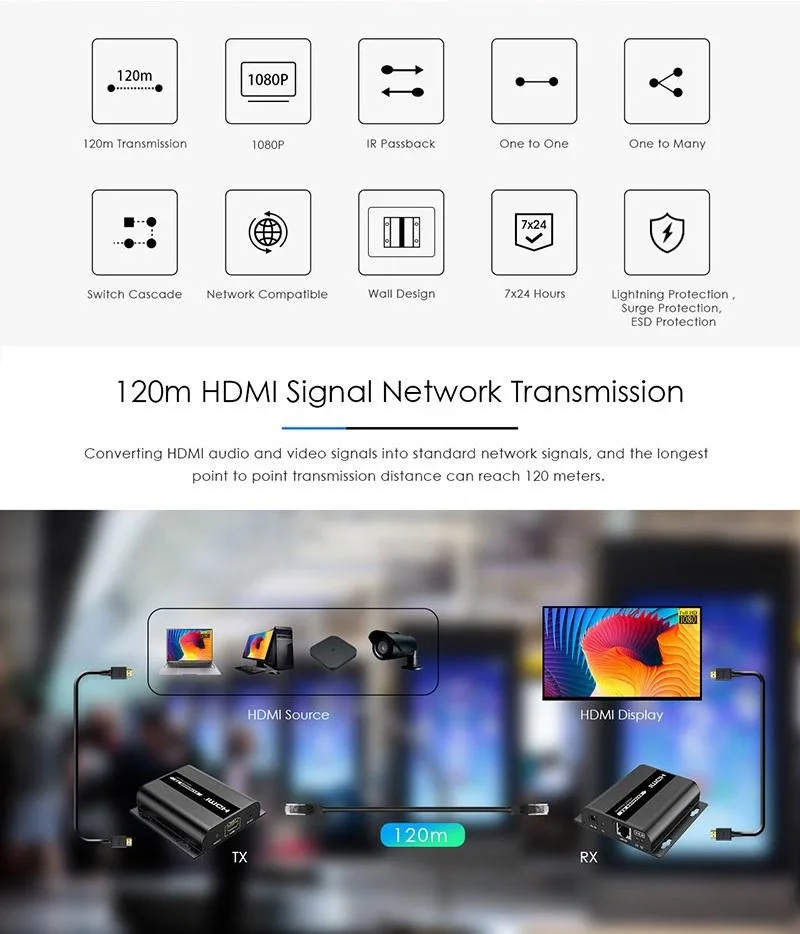

A single transmitter and six receivers extend 1080p HDMI with IR up to 120 metres over Cat5e/6 using standard LAN infrastructure

Option 1 TX and 1 RX kit

  • Extends 1080p video up to 120 metres over a single Cat6 cable
  • Splits one HDMI source to six displays using existing LAN infrastructure
  • IR pass-through lets you control the source from any receiver location
  • Works with standard Cat5e or Cat6 cabling following IEEE-568B wiring
  • Plug-and-play operation with no manual configuration required

Kit Composition

This kit contains one transmitter and six receivers, model LKV383 V4.0. It extends HDMI signals over single Cat5, Cat5e or Cat6 cable. The system integrates with an existing LAN through a router or switch without affecting internet traffic. Plug-and-play operation requires no manual configuration.

Version Constraint

This V4.0 unit is not compatible with earlier LKV383 or LKV383 V3.0 hardware. Buyers who already own those versions cannot mix them with this kit. The extender supports HDCP-compliant HDMI sources and 20–60 kHz IR pass-through for remote control relay across the link.

Resolution and Distance

Supported resolutions include 480i/p, 576i/p, 720p and 1080i/p at 50 Hz or 60 Hz. Maximum transmission reaches 120 metres for 1080p 60 Hz over Cat6 cable. The system cannot carry 4K or higher refresh rates, so users needing those formats must choose a different extender.

Highlights

  • Extends 1080p video up to 120 metres over a single Cat6 cable
  • Splits one HDMI source to six displays using existing LAN infrastructure
  • IR pass-through lets you control the source from any receiver location
  • Works with standard Cat5e or Cat6 cabling following IEEE-568B wiring
  • Plug-and-play operation with no manual configuration required

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far can the 1080p signal travel over a single Cat6 cable in this kit?

The transmitter and each receiver support up to 120 metres or 394 feet for 1080p at 60 Hz over a single Cat6 cable.

What network standard limits the cable run, and which cable categories are approved?

The kit follows the IEEE-568B wiring standard and works with UTP or STP Cat5, Cat5e and Cat6 cables.

What are the physical dimensions of each transmitter and receiver unit?

Each unit measures 95 mm wide, 95 mm deep and 25 mm high, so allow that space for mounting or shelf placement.
