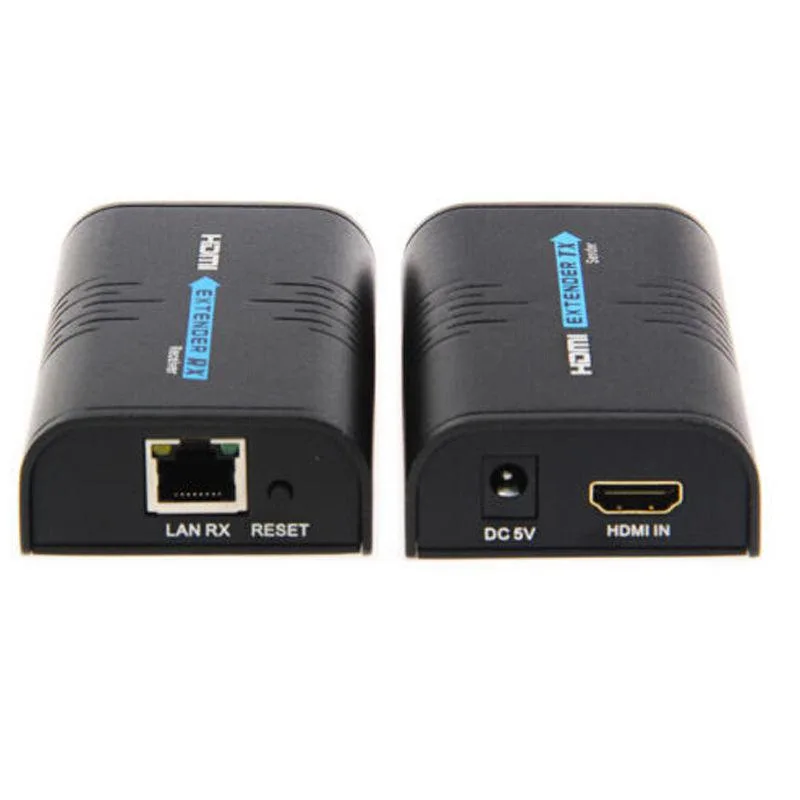

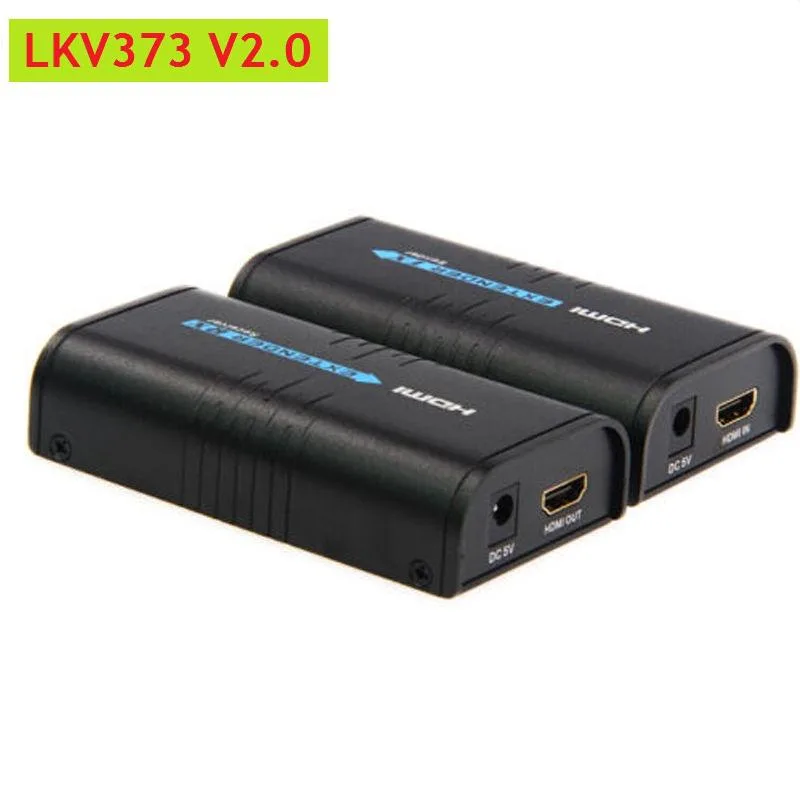

Black HDMI extender kit with two small boxes labeled TX and RX, RJ45 ports, HDMI connectors, DC power sockets, matte finish

Lenkeng Technology Co,. Ltd

Lenkeng Technology Co,. Ltd LKV373 V2.0 HDMI Extender 120m Cat6

SKU CH-HECT-FMVV0

Transmits 1080p HDMI over a single Cat6 cable up to 120 metres and supports one transmitter feeding many receivers via a LAN switch

Option 1 TX and 1 RX kit

  • Transmit 1080p up to 120 m over Cat6
  • One transmitter drives many receivers via LAN
  • Works continuously 24 hours a day
  • Extends further by adding an Ethernet router
  • Compact 110 × 58 × 26 mm units

What the LKV373 V2.0 extender does

The LKV373 V2.0 HDMI extender kit includes one transmitter and one receiver that send 1080p video up to 120 metres over a single Cat6 cable. It uses standard TCP/IP so multiple receivers can connect to one transmitter through a LAN router or switch. The set supports HDCP and common resolutions from 480p up to 1080p at 60 Hz, making it suitable for digital signage, conference rooms or home distribution.

Heat noise and power in normal use

The transmitter draws 3.5 W and the receiver 3 W, both powered from 5 V 1 A DC adapters. With no moving parts the units run silently, and the specified operating range of 0 to 60 °C means they stay cool inside typical rack or wall-plate installations. The compact 110 by 58 by 26 mm metal housings dissipate the low heat load without fans.

Behaviour under continuous load

Designed for 24/7 operation, the extender maintains a stable 1080p 60 Hz stream over Cat6 at the full 120 metre distance without frame drops. M-JPEG compression keeps bandwidth predictable while preserving visual quality, so long playback sessions or permanent signage loops do not degrade the link. Adding an extra Ethernet router can extend the path another 120 metres if required.

Highlights

  • Transmit 1080p up to 120 m over Cat6
  • One transmitter drives many receivers via LAN
  • Works continuously 24 hours a day
  • Extends further by adding an Ethernet router
  • Compact 110 × 58 × 26 mm units

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I connect the LKV373 V2.0 TX and RX units, and which cable type gives the full 120 m reach?

Link the TX HDMI source to the TX unit, run a single Cat6 UTP/STP cable to the RX unit, then connect the RX HDMI output to the display; Cat6 achieves 120 m while Cat5e reaches 100 m and Cat5 only 80 m.

What ongoing care or part replacement should I expect for the extender set?

No user-serviceable parts are listed; keep the DC 5 V/1 A power supplies and RJ45 connections clean and ventilated within the 0–60 °C operating range, and replace only if a power adapter or cable fails.

What is the first limitation I will hit when running the extender continuously at 1080p 60 Hz?

The hard distance ceiling appears first — 120 m over Cat6, 100 m over Cat5e, 80 m over Cat5 — beyond which the 1080p 60 Hz signal will not transmit reliably.
