Black transmitter and five receivers in a 1 TX 5 RX kit

Lenkeng Technology Co,. Ltd

Lenkeng Technology Co,. Ltd LKV373 V2.0 1 TX 5 RX HDMI Extender Kit

SKU CH-G3HG-13P28

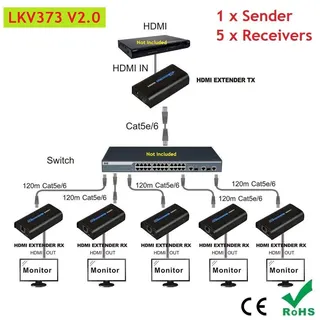

Distributes one HDMI source to five displays up to 120 metres over Cat6

Option 1 TX and 5 RX kit

  • Extends 1080p video up to 120 m over single Cat6 cable

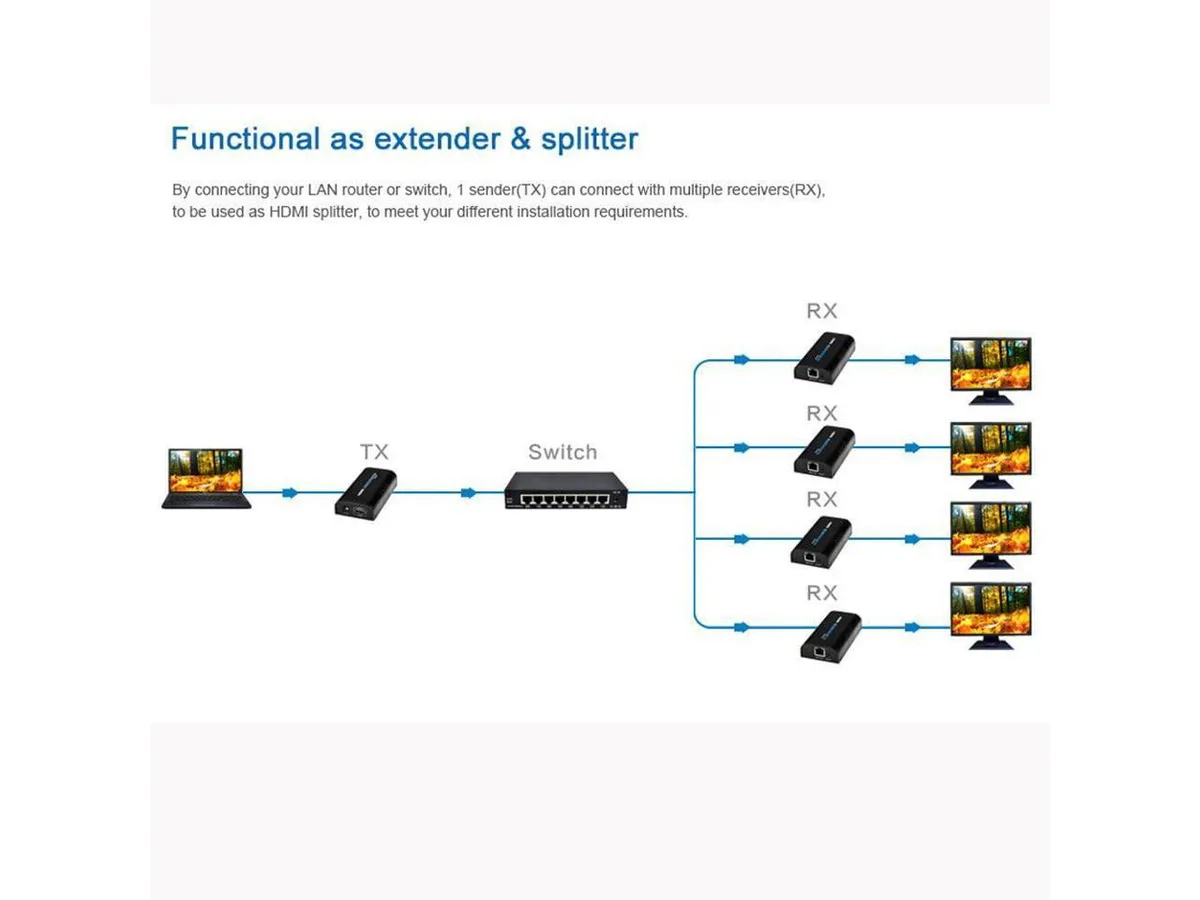

  • One transmitter drives five receivers for multi-display distribution
  • Supports 24-hour continuous operation for always-on installations
  • HDCP-compatible HDMI handles 480i to 1080p60 formats
  • Compact 110 × 58 × 26 mm units fit tight rack spaces

Pro A/V Extender Kit 1 TX 5 RX

This Lenkeng LKV373 V2.0 kit ships with one transmitter and five receivers for distributing a single HDMI source to multiple displays. It targets installers and AV professionals who need reliable 1080p signal extension over standard network cabling. The kit supports continuous 24-hour operation in commercial or residential environments.

Transmission Distance Up To 120 Meters

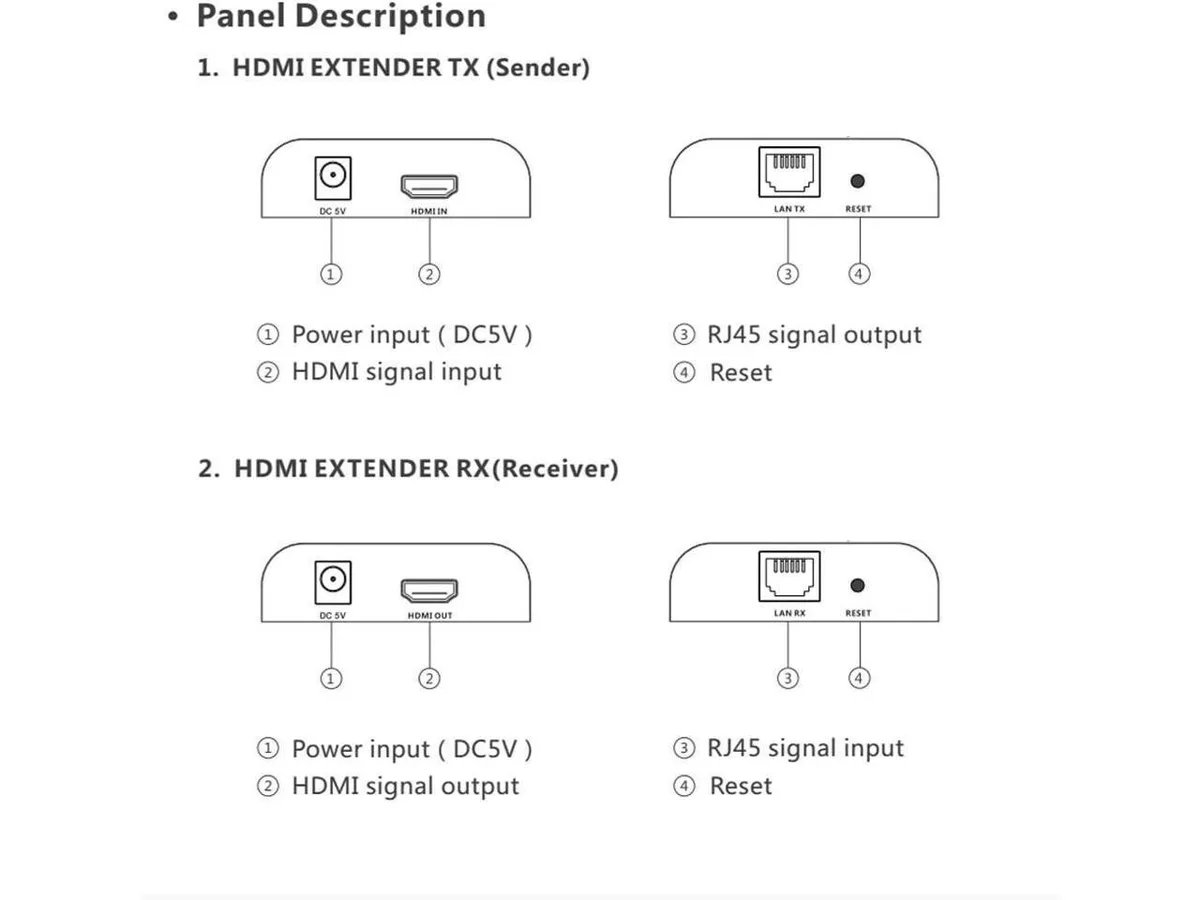

The single specification that decides fit is the maximum reach: 120 metres over Cat6, 100 metres over Cat5e and 80 metres over Cat5 at 1080p 60 Hz. Each receiver connects via RJ45 and the system uses M-JPEG compression with minimal quality loss. HDCP-compatible signals up to 1080p 60 Hz are supported across all listed resolutions.

Sustained Load 24-Hour Operation

Under continuous load the transmitter draws 3.5 W and each receiver draws 3 W from the supplied DC 5 V 1 A adapters. The units operate between 0 and 60 °C without active cooling, housed in 110 × 58 × 26 mm black enclosures. Adding an Ethernet router can extend the link by another 120 metres per hop.

Highlights

  • Extends 1080p video up to 120 m over single Cat6 cable
  • One transmitter drives five receivers for multi-display distribution
  • Supports 24-hour continuous operation for always-on installations
  • HDCP-compatible HDMI handles 480i to 1080p60 formats
  • Compact 110 × 58 × 26 mm units fit tight rack spaces

Specifications

No published specifications for this item yet.

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How far can a 1080p 60 Hz signal actually travel over a single Cat6 run with this kit?

The transmitter and receivers carry 1080p 60 Hz up to 120 metres on one Cat6 cable, 100 metres on Cat5e and 80 metres on Cat5.

What network standard does the extender use and what resolution ceiling does it enforce?

It converts HDMI to standard TCP/IP traffic, so any managed switch or router can distribute the signal, but the highest supported format remains 1080p at 50 or 60 Hz.

What are the physical dimensions and power needs for each unit?

Each box measures 110 × 58 × 26 mm; the transmitter draws 3.5 W and each receiver 3 W from the included 5 V 1 A supplies.
