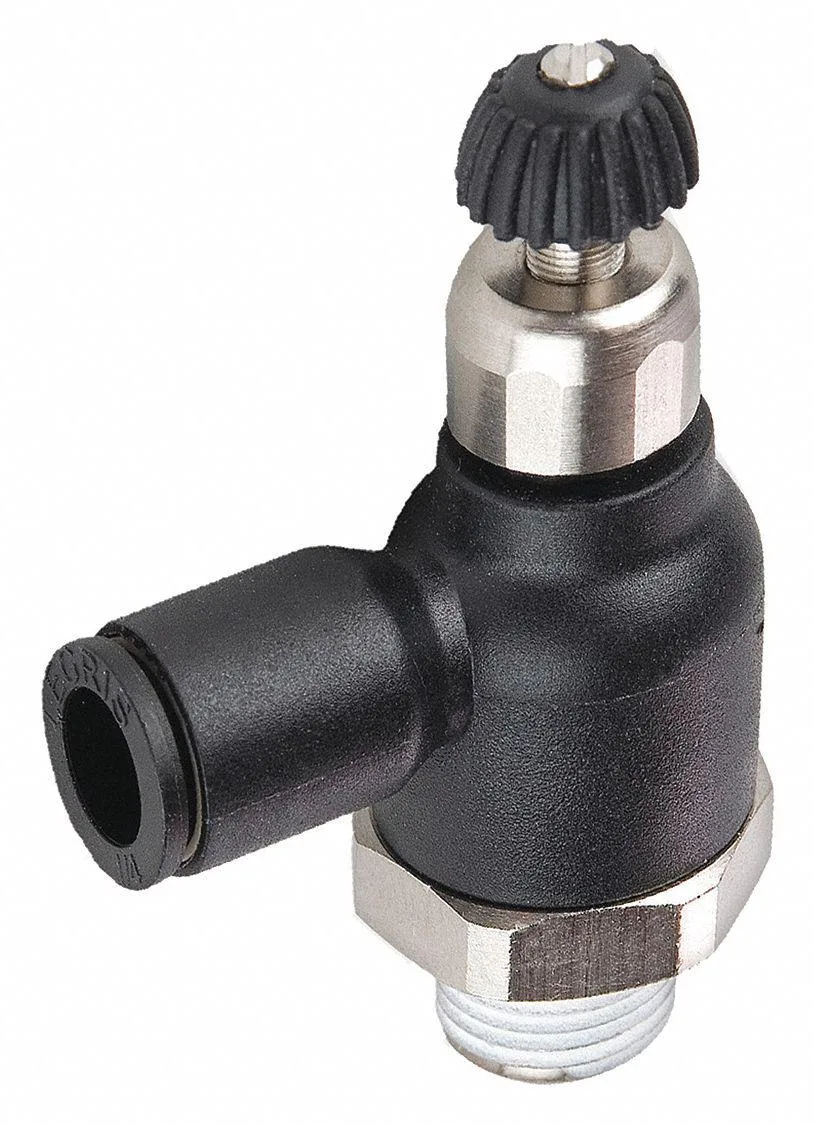

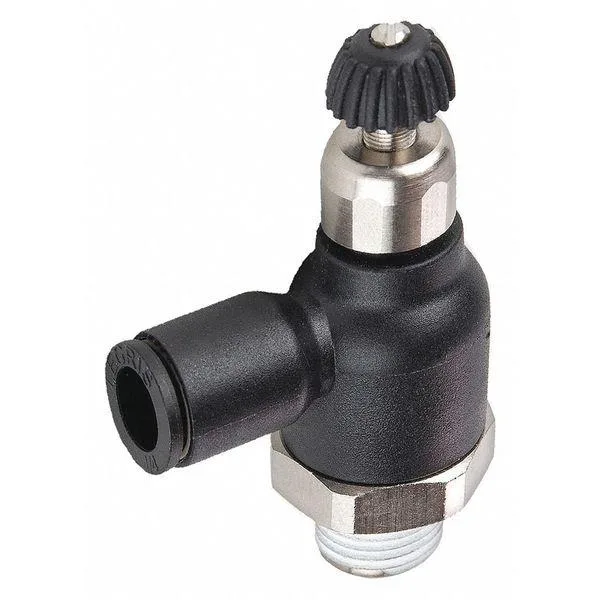

Compact flow control valve, nickel-plated polymer body, elbow fitting

Legris

Legris 7065 10 13 Compact Flow Control Trap

SKU CH-T7N1-2QQ9J MPN 7065

A compact flow-control elbow for 10 mm tube with a 1/4 in BSPT port, adjustable by screw and rated to 145 psi and 13.8 cfm

  • TypeDrain Components
  • MaterialHAWA
  • Compact flow control for precise air metering
  • Screw adjustment enables fine flow regulation
  • 10 mm tube and R 1/4 in BSPT connections for direct fit
  • Technical polymer body with nickel-plated finish resists corrosion
  • Operates up to 145 psi at 70 °C maximum temperature

Compact Flow Control for Pneumatic Systems

The Legris 7065 10 13 is a compact flow control valve designed for pneumatic circuits requiring precise metering-out adjustment. It suits engineers and technicians assembling or maintaining compressed-air systems where space is limited and reliable flow regulation is essential. The valve body uses technical polymer with a nickel-plated finish for corrosion resistance.

Push-In Installation with BSPT Thread

Installation uses a push-in tube connection for the 10 mm air line and an R 1/4 BSPT male thread for the port. The screw-type adjustment allows fine control without tools once the fitting is seated. Common issues include insufficient thread engagement if the port is shallow and tube pull-out if the 10 mm tubing is not fully inserted to the collet stop.

Pressure and Temperature Envelope

The valve operates between 14.5 psi and 145 psi with a maximum flow of 13.8 cfm and a temperature ceiling of 70 °C. Exceeding the pressure limit risks body deformation or seal failure while temperatures above the rated maximum degrade the polymer body. The metering-out design does not restrict reverse flow, so a separate check valve is needed for bidirectional control.

Highlights

  • Compact flow control for precise air metering
  • Screw adjustment enables fine flow regulation
  • 10 mm tube and R 1/4 in BSPT connections for direct fit
  • Technical polymer body with nickel-plated finish resists corrosion
  • Operates up to 145 psi at 70 °C maximum temperature

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model7065 10 13

Questions about this item

How do I confirm the 7065 10 13 is metering out correctly after installation?

Verify airflow direction matches the meter-out marking and check that flow settles within the 13.8 cfm maximum at up to 145 psi operating pressure.

What comes with the compact flow control trap and what must I source separately?

The unit includes the nickel-plated polymer body with R 1/4 in BSPT thread and 10 mm tube connection; tubing, thread sealant and mounting hardware are not included.

Which version suits a 10 mm tube system running at 145 psi and 70 °C?

The 7065 10 13 model is specified for 10 mm tube, R 1/4 in BSPT, 145 psi maximum pressure and 70 °C maximum temperature.
